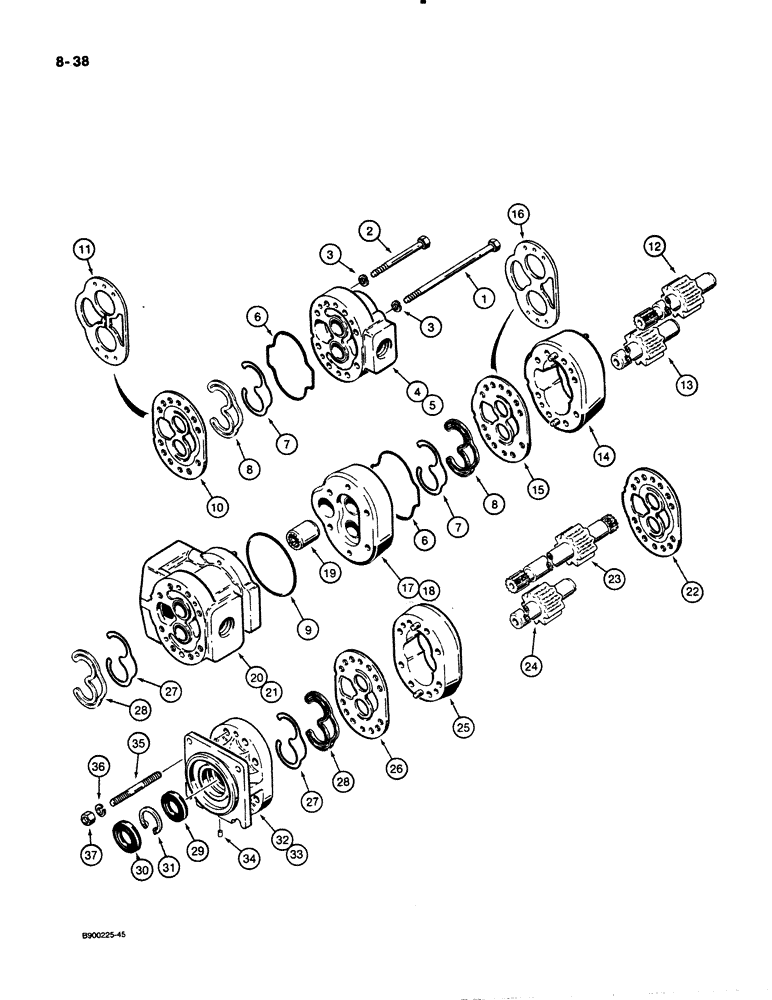

Запчасти Case W30 (8-38) - EQUIPMENT AND STEERING PUMP, USED ON MODELS WITH ZF TRANSMISSION (08) - HYDRAULICS

L117090

PUMP

ASSEMBLY - hydraulic, Sperry Vickers No. G3020C-4E21V21V-12B31-S22, order L127378 pump for service

1шт.

L127378

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic, Sperry Vickers No. G3020C-4E21V21V-12B50-S22

1шт.

1

113-364

BOLT,Hex, 7/16" - 14 x 7", Gr 5

- hex head, 7/16" - 14 NC x 7", plated

4шт.

2

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

4шт.

3

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

4

N9191

COVER

- port end, L117090 pump only

1шт.

5

S301369

COVER

- port end, L127378 pump only

1шт.

N7127

SEAL KIT

- seal, port end

1шт.

6

D144061

O-RING

- cover and adapter, L127378 pump only

2шт.

7

N60243

SEAL

- special

2шт.

8

N60305

RETAINER

- seal

2шт.

9

N60307

O-RING

-, Serial Range: adapter-housing

1шт.

10

N60292

PLATE

- wear, port end cover, L117090 pump only

1шт.

11

D143154

LARGE PLATE

PLATE - wear, port end cover, L127378 pump only

1шт.

12

N9192

GEAR

DRIVE GEAR - pump, port end

1шт.

13

N9193

GEAR

DRIVEN GEAR - pump, port end

1шт.

14

N9194

HOUSING

- gears, port end

1шт.

15

N60296

PLATE

- wear, gear housing, port end, L117090 pump only

1шт.

16

D143154

LARGE PLATE

PLATE - wear, gear housing, port end, L127378 pump only

1шт.

17

N60299

TUBE NUT

ADAPTER - housing, L117090 pump only

1шт.

18

S300239

ADAPTER

- housing, L127378 pump only

1шт.

19

N9195

SPLINED COUPLING

COUPLING - adapter housing

1шт.

20

N14010

HOUSING

CARRIER - pump, L117090 pump only, when stock is

1шт.

exhausted, order S301370 carrier for service

1шт.

21

S301370

VALVE BLOCK

CARRIER - pump, L127378 pump only

1шт.

22

N60191

PLATE

- wear, gear housing, shaft end

1шт.

23

N9198

GEAR

DRIVE GEAR - pump, shaft end

1шт.

24

N9197

GEAR

DRIVEN GEAR - pump, shaft end

1шт.

25

N9199

HOUSING

- gears, shaft end

1шт.

26

N60187

PLATE

- wear, shaft end cover

1шт.

N7240

SEAL KIT

- seal, shaft end, no longer available, order items 27 through 31 below

1шт.

27

N60195

SEAL

- special

2шт.

28

N60194

RETAINER

- seal

2шт.

29

N60213

SEAL

- shaft, inner

1шт.

30

N60212

SEAL

SEAL - shaft, outer, if used

1шт.

31

D41419

RING

RETAINING RING - seal

1шт.

32

N14742

COVER

- shaft end, L117090 pump only, no longer used

1шт.

order S300735 cover for service

1шт.

33

S300735

COVER

- shaft end, L127378 or L117090 pump

1шт.

34

N60210

PLUG

- cover

1шт.

35

N60251

STUD

- cover

8шт.

36

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

37

129-106

NUT,9/16"-12, G5

- hex, 9/16", plated

8шт.
