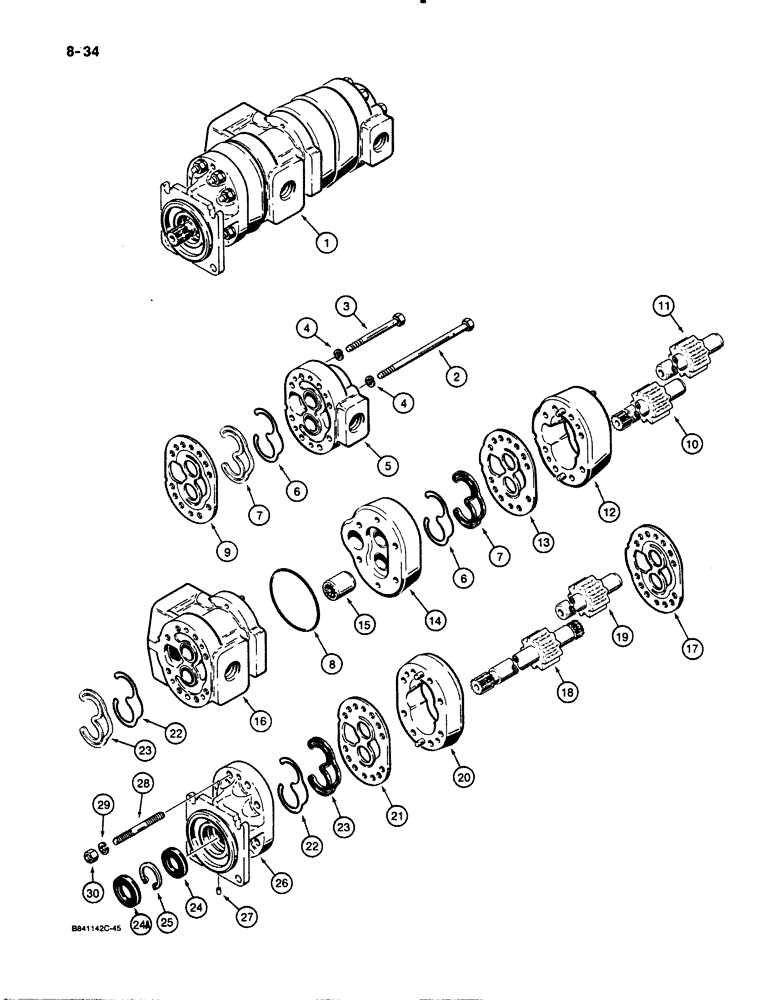

Запчасти Case W30 (8-34) - EQUIPMENT AND STEERING PUMP - L107392, USED ON MODELS WITH ALLISON TRANSMISSION (08) - HYDRAULICS

1

L107392

PUMP

ASSEMBLY - hydraulic, Sperry Vickers No. G3020C-4E21V1V-12B31L-S22, no longer used, order L127379 pump, parts list Figure 8-36

1шт.

2

113-364

BOLT,Hex, 7/16" - 14 x 7", Gr 5

- hex head, 7/16" - 14 NC x 7", plated

4шт.

3

113-321

BOLT,Hex, 7/16" - 14 x 4", Gr 5

4шт.

4

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

N9191

COVER

- port end

1шт.

N7127

SEAL KIT

- seal, port end

1шт.

6

N60243

SEAL

- special

2шт.

7

N60305

RETAINER

- seal

2шт.

8

N60307

O-RING

-, Serial Range: adapter-housing

1шт.

9

N60292

PLATE

- wear, port end cover

1шт.

10

N9192

GEAR

DRIVE GEAR - pump, port end

1шт.

11

N9193

GEAR

DRIVEN GEAR - pump, port end

1шт.

12

N9194

HOUSING

- gears, port end

1шт.

13

N60296

PLATE

- wear, gear housing, port end

1шт.

14

N60299

TUBE NUT

ADAPTER - housing

1шт.

15

N9195

SPLINED COUPLING

COUPLING - adapter housing

1шт.

16

N9196

VALVE BLOCK

CARRIER - pump

1шт.

17

N60191

PLATE

- wear, gear housing, shaft end

1шт.

18

N9198

GEAR

DRIVE GEAR - pump, shaft end

1шт.

19

N9197

GEAR

DRIVEN GEAR - pump, shaft end

1шт.

20

N9199

HOUSING

- gears, shaft end

1шт.

21

N60187

PLATE

- wear, shaft end cover

1шт.

N7240

SEAL KIT

- seal, shaft end, no longer available, order items 22 through 25 below

1шт.

22

N60195

SEAL

- special

2шт.

23

N60194

RETAINER

- seal

2шт.

24

N60213

SEAL

- shaft, inner

1шт.

24a

N60212

SEAL

SEAL - shaft, outer, if used

1шт.

25

D41419

RING

RETAINING RING - seal

1шт.

26

S300735

COVER

- shaft end, was N9200

1шт.

27

N60210

PLUG

- cover

1шт.

28

N60251

STUD

- cover

8шт.

29

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

8шт.

30

129-106

NUT,9/16"-12, G5

- hex, 9/16", plated

8шт.
