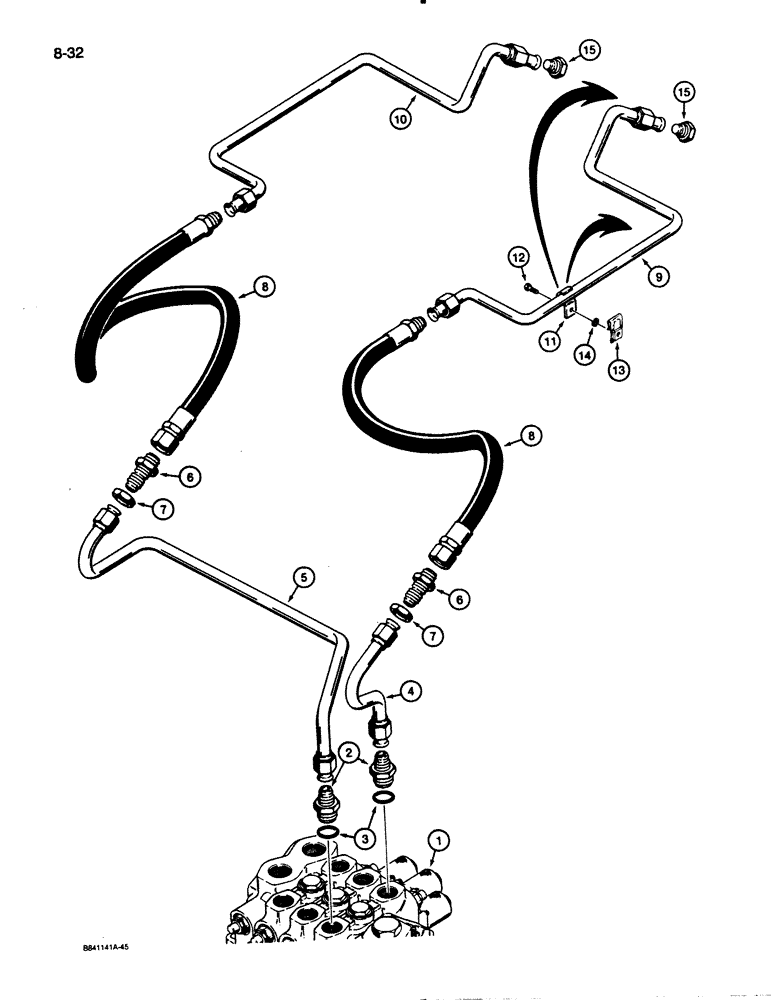

Запчасти Case W30 (8-32) - CLAM BUCKET HYDRAULIC CIRCIUT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, three spool, for correct

1шт.

assembly and components, see Figure 8-52

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight

2шт.

3

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

4

L60597

TUBE,25.4" OD

- auxiliary, right-hand, from valve

1шт.

5

L60599

TUBE,25.4 mm OD

- auxiliary, left-hand, from valve

1шт.

6

218-678

FITTING,Blkhd, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

ADAPTER - straight, bulkhead

2шт.

7

218-1250

BHD LOCK NUT,Blkhd, 1 5/16"-12

NUT, LOCK, Blkhd, 1 5/16"-12

2шт.

8

L73193

HOSE

- tube to lift arm, 44" (1118 mm) long

2шт.

9

L107726

TUBE,25.40 mm OD

- auxiliary, right-hand, lift arm

1шт.

10

L107728

TUBE,25.4 mm OD

- auxiliary, left-hand, lift arm

1шт.

11

A12308

CLAMP

- tube

6шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

6шт.

13

131-856

SPRING NUT,Ret, J, 3/8"-16

NUT, Ret, J, 3/8"-16

6шт.

14

92-6

LOCK WASHER,3/8"

6шт.

15

218-779

PLUG,1 5/16"-12, 37 Degree

Hex, tube 1 5/16"-12, 37º

2шт.
