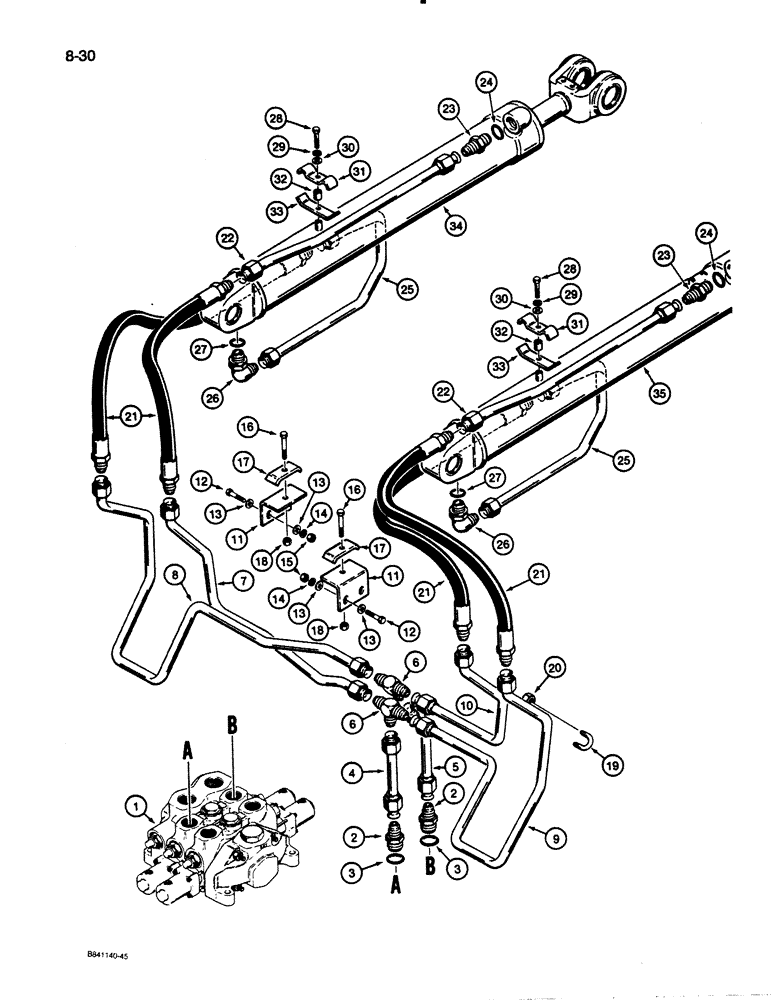

Запчасти Case W30 (8-30) - LOADER BUCKET HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, see Figures 8-50 or 8-52 for correct valve and components

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight

2шт.

3

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

4

L108911

TUBE,25.4 mm OD x 243.4 mm L

- bucket, manifold, rear

1шт.

5

L108913

TUBE,25.4 mm OD x 297.8, 56 mm L

- bucket, manifold, front

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- manifold

2шт.

7

L108923

TUBE,25.4 mm OD

- bucket, left-hand

1шт.

8

L108919

TUBE,25.4 mm OD

- bucket, left-hand

1шт.

9

L108921

TUBE,25.4 mm OD

- bucket, right-hand

1шт.

10

L108917

TUBE,25.4 mm OD

- bucket, right-hand

1шт.

11

L47468

BRACKET

- tube mount

2шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

13

95-6

WASHER,3/8"

- flat, 3/8"

8шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

16

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

17

L102739

CLAMP

- tube

2шт.

18

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

19

L116518

U-BOLT

- 5/16" - 18 NC

8шт.

20

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

16шт.

21

L112987

HOSE

- bucket cylinder, 50" (1270 mm) long

4шт.

22

L105715

TUBE,25.4 mm OD x 778.9, 27.9 mm L

- bucket cylinder, rod end

2шт.

23

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight

2шт.

24

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

25

L105695

TUBE,25.4 mm OD

- bucket cylinder, closed end

2шт.

26

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

2шт.

27

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" -16 NC x 1-1/2"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

31

L26312

CLAMP

- tube

2шт.

32

D35217

BUSHING

SPACER - clamp

2шт.

33

L47503

BRACKET

- tube

2шт.

34

G107281

CYLINDER

- bucket, left-hand, parts list Figure 8-82

1шт.

35

G109255

CYLINDER

- bucket, right-hand, parts list Figure 8-82

1шт.
