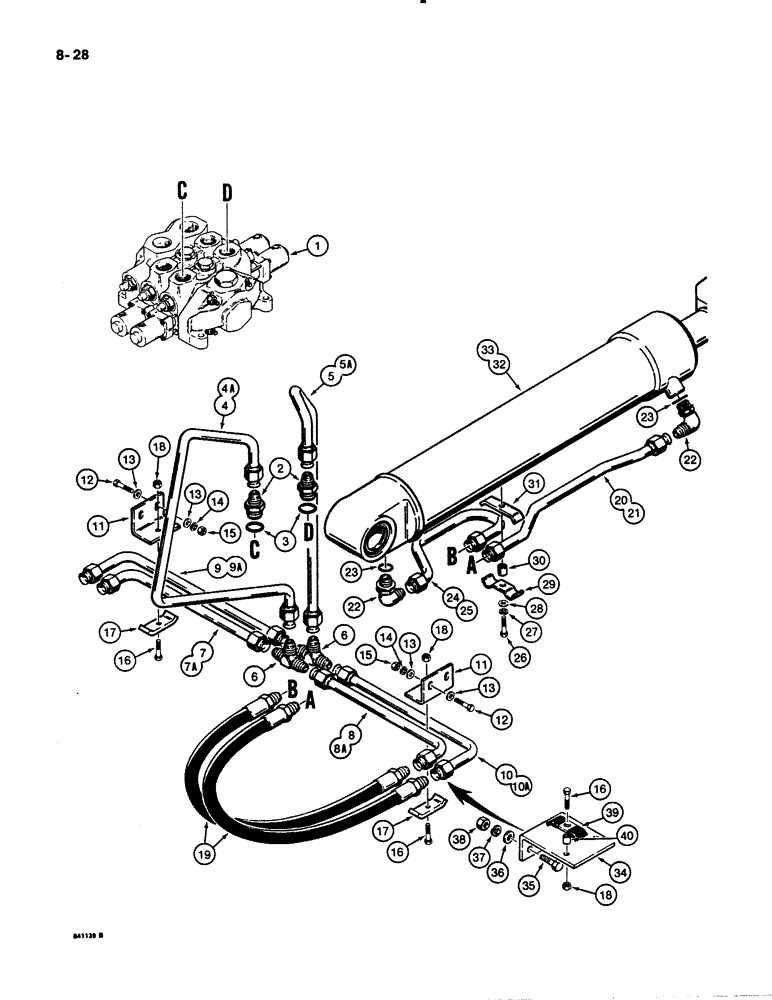

Запчасти Case W30 (8-28) - LOADER LIFT HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic, loader control, for correct assembly

1шт.

and components, see Figure 8-50 or 8-52

1шт.

2

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight

2шт.

3

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- adapter

1шт.

4

L108925

TUBE,25.4 mm OD

- lift, manifold, rear, Allison transmission models

1шт.

4a

L117419

TUBE,25.4 mm OD

- lift, manifold, rear, ZF transmission models

1шт.

5

L108929

TUBE,25.4 mm OD

- lift, manifold, front, Allison transmission models

1шт.

5a

L117227

TUBE,25.4 mm OD x 747, 155 mm L

- lift, manifold, front, ZF transmission models

1шт.

6

218-598

TEE,1 5/16"-12 37 Degree

- manifold

2шт.

7

L105625

TUBE,25.4 mm OD x 501.2, 103.6 mm L

- lift, left-hand rear, Allison transmission models

1шт.

7a

L117415

TUBE,25.4 mm OD

- lift, left-hand rear, ZF transmission models

1шт.

8

L105629

TUBE,25.4 mm OD x 467, 103.8 mm L

- lift, right-hand rear, Allison transmission models

1шт.

8a

L117417

TUBE,25.4 mm OD

- lift, right-hand rear, ZF transmission models

1шт.

9

L105693

TUBE,25.4 mm OD x 619.4, 160.8 mm L

- lift, left-hand front, Allison transmission models

1шт.

9a

L117203

TUBE,25.4 mm OD

- lift, left-hand front, ZF transmission models

1шт.

10

L106414

TUBE,25.4 mm OD x 501.2, 160.8 mm L

- lift, right-hand front, Allison transmission models

1шт.

10a

L117201

PIPE,25.4 mm OD

TUBE - lift, right-hand front, ZF transmission models

1шт.

11

L47468

BRACKET

- tube mount, if used

2шт.

12

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

4шт.

13

95-6

WASHER,3/8"

- flat, , if used 3/8"

8шт.

14

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

15

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

4шт.

16

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

17

L102739

CLAMP

- tube, if used

2шт.

18

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

2шт.

19

L113904

HOSE,19 mm ID x 950.00 mm, SAE 100R12

Lift Cylinder 19 mm ID x 950.00 mm, SAE 100R12

4шт.

20

L105720

TUBE,25.4 mm OD

- lift cylinder,rod end, right-hand

1шт.

21

L105724

TUBE

- lift cylinder,rod end, left-hand

1шт.

22

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

4шт.

23

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

24

L105718

TUBE,25.4 mm OD

- lift cylinder, closed end, left-hand

1шт.

25

L105722

TUBE,25.4 mm OD

- lift cylinder, closed end, right-hand

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

29

L26312

CLAMP

- tube

2шт.

30

D35217

BUSHING

SPACER - tube

2шт.

31

L47503

BRACKET

- tube mount

2шт.

32

G103816

CYLINDER BLOCK

CYLINDER - lift, right-hand, parts list Figure 8-80

1шт.

33

G103817

CYLINDER BLOCK

CYLINDER - lift, left-hand, parts list Figure 8-80

1шт.

34

L116087

BRACKET

- tube mount, if used

2шт.

35

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- hex head, 1/2" - 13 NC x 1-3/4", if used

4шт.

36

195-106

WASHER,1/2"

- flat, , plated, if used 1/2"

4шт.

37

92-8

LOCK WASHER,1/2"

if used 1/2"

4шт.

38

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC, if used

4шт.

39

L47503

BRACKET

CLAMP - tube, if used

2шт.

40

L42723

SPACER

- tube, if used

2шт.
