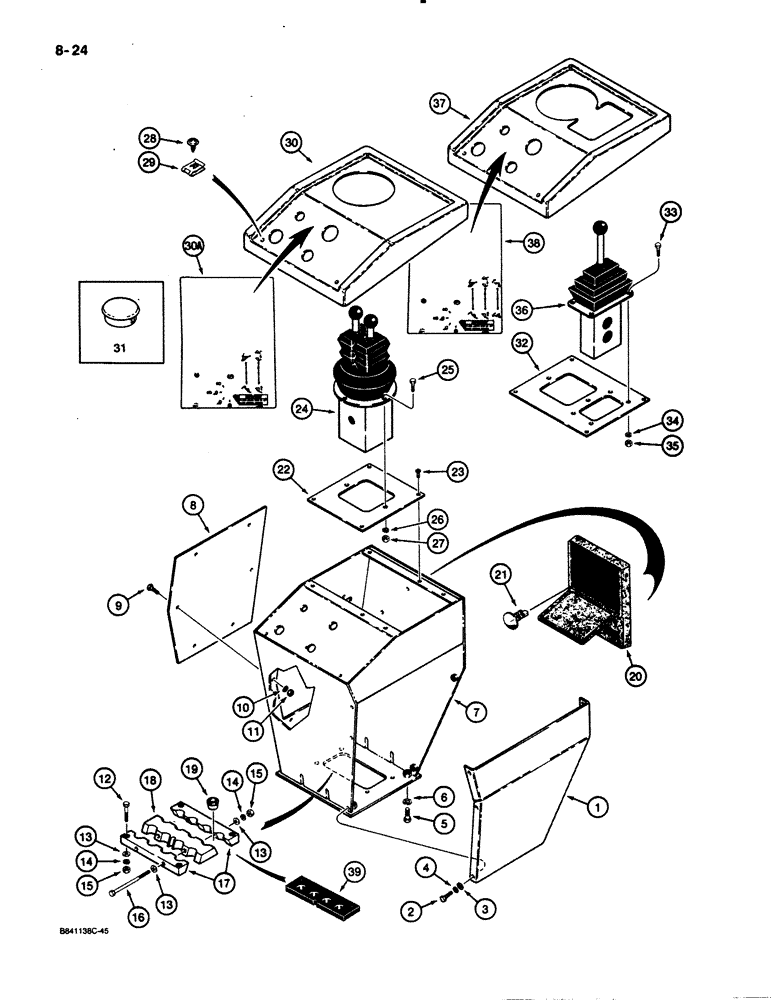

Запчасти Case W30 (8-24) - REMOTE VALVE CONSOLE, USED ON MODELS WITH ALLISON TRANSMISSION (08) - HYDRAULICS

1

L116475

PANEL ASSY.

PANEL - access

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

3

95-4

WASHER,1/4"

- flat, 1/4"

6шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

6

92-6

LOCK WASHER,3/8"

4шт.

7

L109638

CONSOLE

- remote valve, loader control

1шт.

8

L112399

PANEL ASSY.

PANEL - access

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

11

131-628

NUT,Ret, J, 1/4"-20

- hex, self-locking, 1/4" - 20 NC

6шт.

12

13-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"-20 x 1 1/2", G5

4шт.

13

95-4

WASHER,1/4"

- flat, 1/4"

4-8шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4-6шт.

15

25-104

NUT,1/4"-20, G5

4-6шт.

16

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4" - 20 NC x 4", if used

2шт.

17

L104508

CLAMP

SEAL - hose, no longer used, order 2 L127211 seals, ref 39

2шт.

18

L104309

CLAMP

SEAL - hose, no longer used, order 2 L127211 seals, ref 39

1шт.

19

353-15

PLUG,Cap, .824" OD

- hose seal, used with two spool valve only

2шт.

20

A177376

BOX

- operators manual

1шт.

21

A162364

FASTENER

- special

3шт.

22

L112807

PLATE ASSY.

PLATE - valve mounting, two spool only

1шт.

23

171-208

SCREW,Cross Flat Hd, 1/4" - 20 x 3/4"

MACHINE SCREW - flat head, Phillips, 1/4" - 20 NC x 3/4"

4шт.

24

REF

INSTRUCTION

VALVE - remote, four spool dual lever, for correct assembly and components, see Figures 8-70 and 8-72

1шт.

25

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

26

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

27

25-104

NUT,1/4"-20, G5

2шт.

28

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - special

4шт.

29

131-145

NUT,J, #10

- J-type, No. 10

4шт.

L60709

COVER

- console, four spool remote valve only

1шт.

30

NSS

NOT SOLD SEPARAT

COVER - console

1шт.

30a

L109833

DECAL

- control, dual lever

1шт.

31

353-414

PLUG,Dome, 1.375" Hole, Nylon

front chassis, two spool only Dome, 1.375" hole, Nylon

2шт.

32

L112808

PLATE ASSY.

PLATE - for Monsun dual lever with Monsun single lever valves

1шт.

32

L127443

PLATE

- for Monsun dual lever with Gresen single lever valves

1шт.

32

L127880

PLATE

- for Gresen dual lever with Monsun single lever valves

1шт.

32

L124618

LARGE PLATE

PLATE - for Gresen dual lever with Gresen single lever valves

1шт.

33

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

35

25-104

NUT,1/4"-20, G5

4шт.

36

REF

INSTRUCTION

VALVE - remote, two spool, for correct assembly and components

1шт.

see Figures 8-76 and 8-78

1шт.

L60708

COVER

- console, for four spool plus two spool remote valves

1шт.

37

NSS

NOT SOLD SEPARAT

COVER - console

1шт.

38

L109834

DECAL

- control, dual lever plus single lever

1шт.

39

L127211

SEAL

- hose

2шт.
