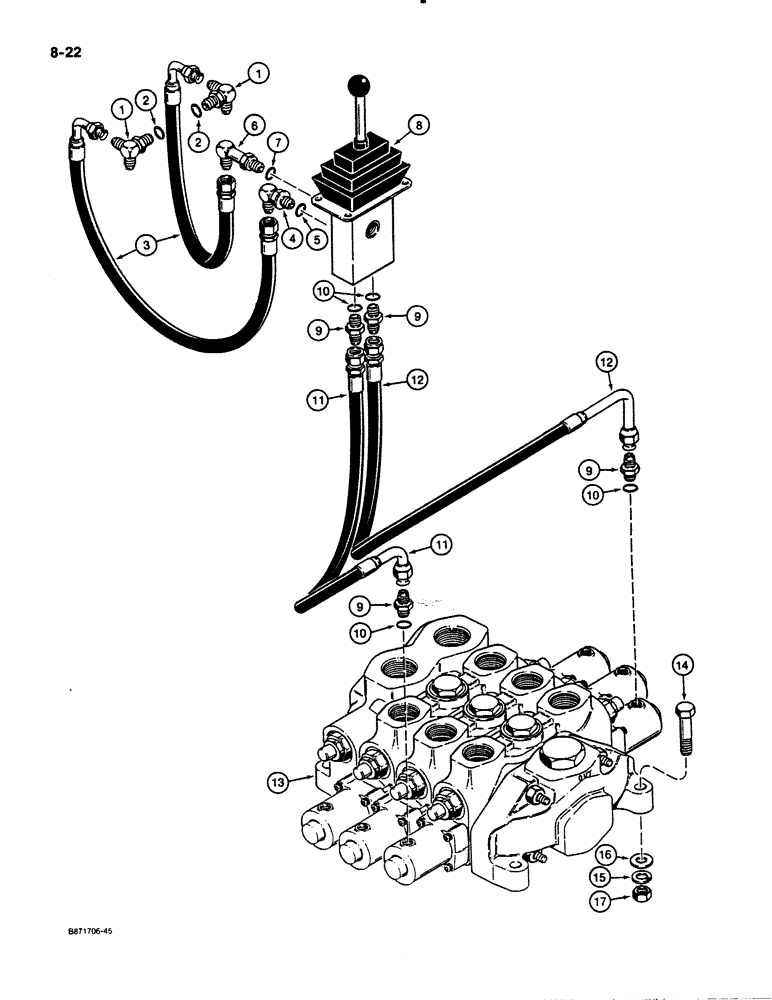

Запчасти Case W30 (8-22) - REMOTE LOADER CONTROL CIRCUIT, TWO SPOOL REMOTE CONTROL VALVE LINES USED ON MODELS W/ ZF TRANS. (08) - HYDRAULICS

1

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

ELBOW, 90, , Special, to single or dual lever four spool remote valve 9/16"-18 x 9/16"-18 ORB

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

3

L124664

HOSE

- 19-5/8" (500 mm) long, to two spool remote valve

2шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, lower port of remote valve

1шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

6

L124665

ELBOW

- special, upper port of remote valve

1шт.

7

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

8

L123917

VALVE

ASSEMBLY - remote, two spool, parts list Figure 8-78

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight

4шт.

10

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

11

L109259

HOSE

- remote valve to loader valve

1шт.

12

L109260

HOSE

- remote valve to loader valve

1шт.

13

REF

INSTRUCTION

CONTROL VALVE - hydraulic, three spool, for correct assembly and components, see Figure 8-52

1шт.

14

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/2"

3шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

16

95-10

WASHER,5/8"

- flat, 5/8"

3шт.

17

25-1010

NUT,5/8"-11, G5

3шт.
