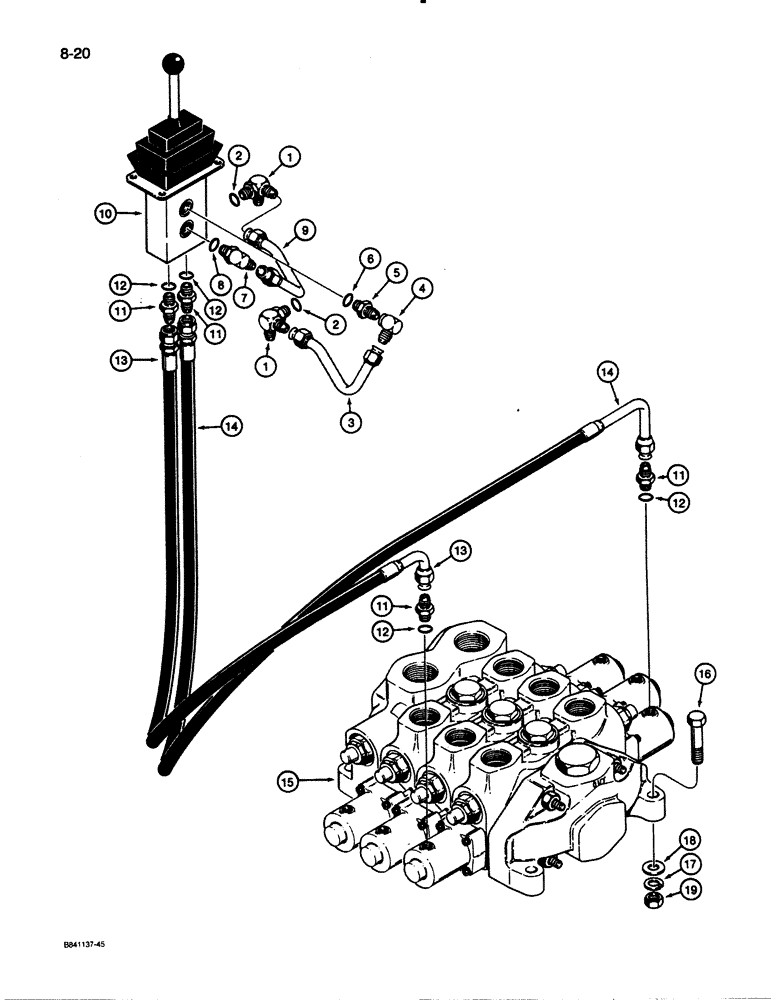

Запчасти Case W30 (8-20) - REMOTE LOADER CONTROL CIRCUIT, TWO SPOOL REMOTE CONTROL VALVE LINES USED ON MODELS W/ ALLISON TRANS. (08) - HYDRAULICS

1

L104616

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 ORB

ELBOW, 90, , Special, to four spool (dual lever) remote valve 9/16"-18 x 9/16"-18 ORB

2шт.

2

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, tee

1шт.

3

L101868

TUBE,0.375" OD

- supply

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight

1шт.

6

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree

1шт.

8

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, elbow

1шт.

9

L101870

TUBE,0.375" OD

- return

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - remote, two spool, for correct assembly and components, see Figures 8-76 and 8-78

1шт.

11

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight

4шт.

12

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, adapter

1шт.

13

L109259

HOSE

- remote valve to loader valve

1шт.

14

L109260

HOSE

- remote valve to loader valve

1шт.

15

REF

INSTRUCTION

VALVE ASSEMBLY - hydraulic control, three spool, for correct assembly and components, see Figure 8-52

1шт.

16

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/2"

3шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

18

95-10

WASHER,5/8"

- flat, 5/8"

3шт.

19

25-1010

NUT,5/8"-11, G5

3шт.
