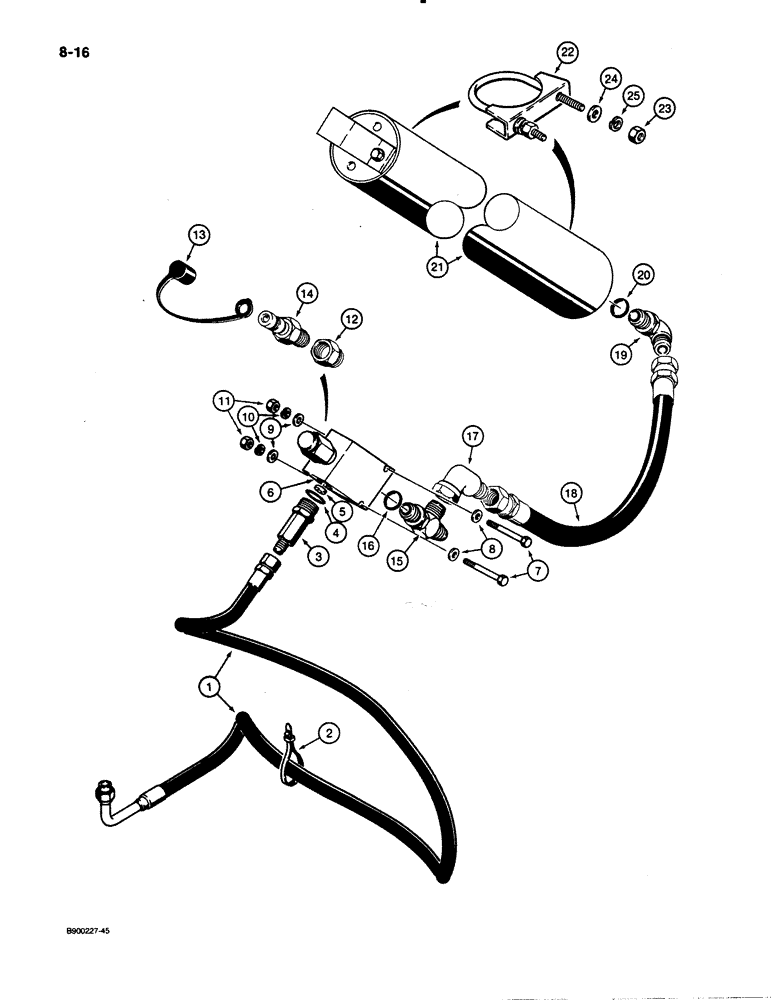

Запчасти Case W30 (8-16) - REMOTE LOADER CTRL CIRCUIT, SUPPLY LINE, PRES. REDUCING VALVE TO ACCUMLTR P.I.N. 802P6007P AND AFTER (08) - HYDRAULICS

1

L114821

HOSE

- supply to pressure reducing valve, 45-1/2"

1шт.

(1150 mm) long

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

L111010

VALVE

- check, components not serviced separately

1шт.

5

L116330

DOOR STAY

ORIFICE - flow restrictor

1шт.

6

L101927

VALVE

- pressure reducing, parts list Figure 8-48

1шт.

7

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

2шт.

8

195-2251

WASHER,.281" x 1" x .109"

- flat, 9/32 x 1 x 1/8 inch

2шт.

9

495-11028

WASHER,1/4", SAE

2шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

12

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4 x 1/8 inch PT

1шт.

13

H434163

DUST CAP

CAP - dust

1шт.

14

H434164

COUPLING

- quick disconnect

1шт.

15

L106746

NIPPLE, LUBE

TEE - special

1шт.

17

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

18

D121694

HOSE

- 500 mm, Serial Range: long,-accumulator

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss

1шт.

21

L118361

ACCUMULATOR

- remote loader control, parts list Figure 8-49A

1шт.

22

L126906

CLAMP

- accumulator

1шт.

23

425-105

NUT,5/16"-18, G5

2шт.

24

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, check valve

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
