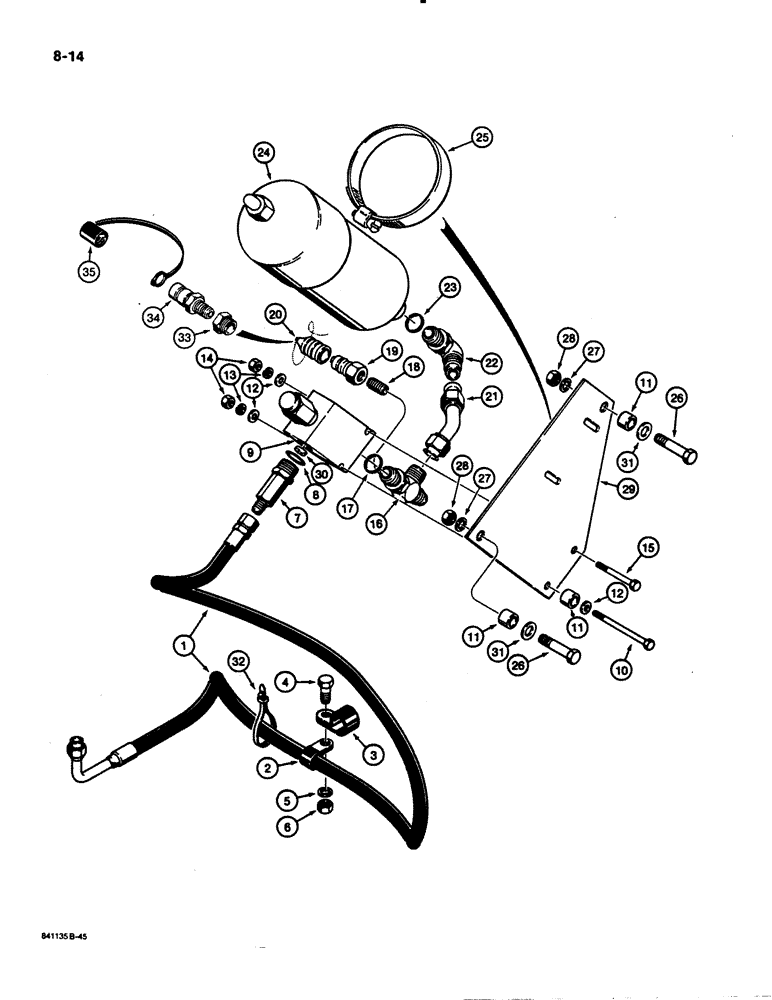

Запчасти Case W30 (8-14) - REMOTE LOADER CTRL CIRCUIT, SUPPLY LINE, PRES. REDUCING VALVE TO ACCUMLTR PRIOR TO P.I.N. 802P6007P (08) - HYDRAULICS

1

L114821

HOSE

- supply to pressure reducing valve, 45-1/2"

1шт.

(1150 mm) long

1шт.

2

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose, if used

1шт.

3

R14668

CLAMP

- tube, if used

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

If used Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, if used

1шт.

7

L111010

VALVE

CHECK VALVE - reducer valve, components not serviced separately

1шт.

9

L101927

VALVE

- pressure reducing, parts list Figure 8-48

1шт.

10

13-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1шт.

11

L78175

HUB

SPACER -bolt

3шт.

12

95-4

WASHER,1/4"

- flat, 1/4"

3шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

14

25-104

NUT,1/4"-20, G5

2шт.

15

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

16

L106746

NIPPLE, LUBE

TEE - special

1шт.

18

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - coupler, if used

1шт.

19

S206607

DISC

COUPLER - male, if used

1шт.

20

D123387

DUST CAP

COVER - dust, if used

1шт.

21

L101925

TUBE,0.5" OD x 2.94, 0.79" L

- reducing valve to accumulator

1шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

24

L123768

TANK

ACCUMULATOR - remote loader control, parts list Figure 8-48

1шт.

25

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - accumulator

1шт.

26

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

29

L101926

SUPPORT ASSY.

BRACKET - accumulator

1шт.

30

L116330

DOOR STAY

ORIFICE - flow restrictor

1шт.

31

D41740

WASHER

- flat, 3/8", hardened, plated

2шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

33

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4 x 1/8 inch PT, if used

1шт.

34

H434164

COUPLING

- quick disconnect, if used

1шт.

35

H434163

DUST CAP

CAP - dust, if used

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, check valve

1шт.

17

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, tee

1шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
