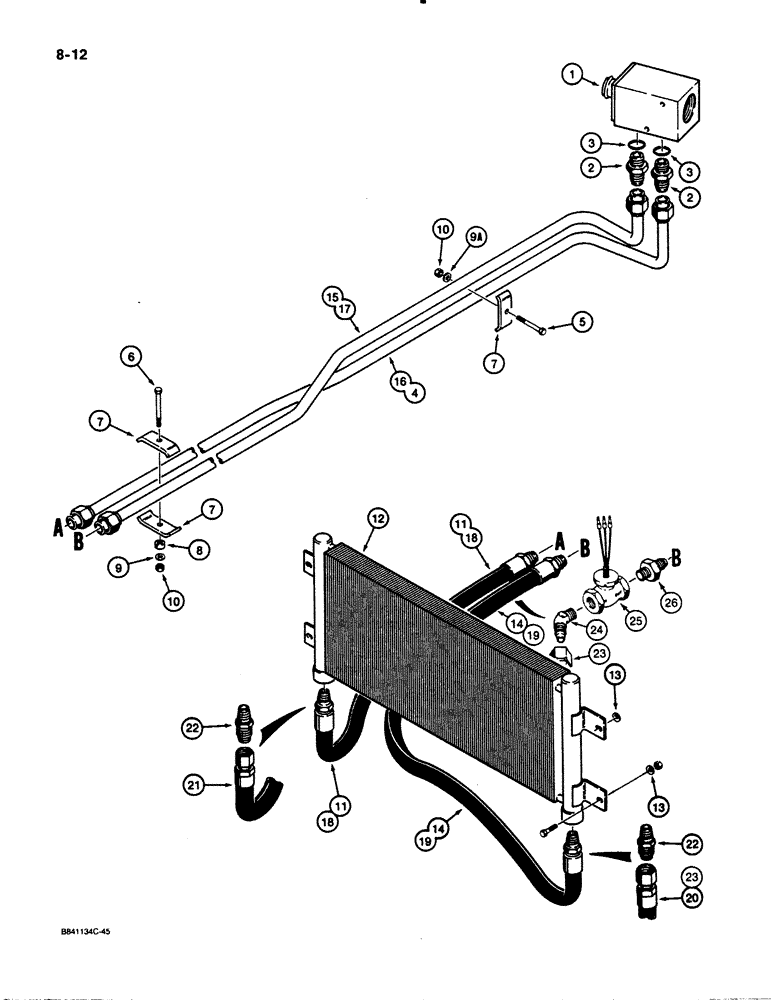

Запчасти Case W30 (8-12) - HYDRAULIC CIRCUIT, BYPASS VALVE TO HYDRAULIC OIL COOLER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - cooler bypass, parts list Figure 8-46

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight

2шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

L107427

TUBE ASSY.,25.4 mm OD

TUBE - valve to oil cooler, used with item 11, L115143 hose, if used

1шт.

5

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex head, 3/8" - 16 NC x 2-1/2"

1шт.

6

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex head, 3/8" - 16 NC x 3-1/4"

1шт.

7

L102739

CLAMP

- tube

3шт.

8

A28893

BUSHING

SPACER - clamp

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

9a

D41740

WASHER

- flat, 3/8", hardened, plated

1шт.

10

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

2шт.

11

L115143

HOSE,25.4 mm ID x 762.00 mm, SAE 100R3

Used with Item 4, L107427 Tube, If Used 25.4 mm ID x 762.00 mm, SAE 100R3

1шт.

12

L107484

COOLER

- hydraulic oil

1шт.

13

L105055

WASHER

- special

4шт.

14

L115144

HOSE,25.4 mm ID x 1428.00 mm, SAE 100R3

Oil Cooler Return, Used with Item 15, L107425 Tube, If Used 25.4 mm ID x 1428.00 mm, SAE 100R3

1шт.

15

L107425

TUBE ASSY.,25.4 mm OD

TUBE - cooler to bypass, used with item 14, L115144 hose, if used

1шт.

16

L116479

TUBE ASSY.,25.4 mm OD

TUBE - valve to oil cooler, used with item 18, L116477 hose, if used

1шт.

17

L116481

TUBE ASSY.,25.4 mm OD

TUBE - cooler to bypass, used with item 19, L116476 hose, or item 23, L126361 hose, if used

1шт.

18

L116477

HOSE,25.4 mm ID x 612.00 mm, SAE 100R3

Oil Cooler, Used with Item 16, L116479 Tube, If Used, Order Items 21 and 22 25.4 mm ID x 612.00 mm, SAE 100R3

1шт.

19

L116476

HOSE,25.4 mm ID x 1278.00 mm, SAE 100R3

to Oil Cooler, Used with Item 17, L116481 Tube, If Used, Order Items 20 and 22 25.4 mm ID x 1278.00 mm, SAE 100R3

1шт.

20

L117785

HOSE,25.4 mm ID x 1250.00 mm, SAE 100R3

Oil Cooler Return, Used with 218-448 Connector, Item 22 25.4 mm ID x 1250.00 mm, SAE 100R3

1шт.

21

L117784

HOSE,25.4 mm ID x 584.00 mm, SAE 100R3

Oil Cooler Supply, Used with 218-448 Connector, Item 22 25.4 mm ID x 584.00 mm, SAE 100R3

1шт.

22

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight

2шт.

23

L126361

HOSE,25.4 mm ID x 1020.00 mm, SAE 100R3

Oil Cooler Return, If Used, Models with ZF Transmission Automatic Auxilary Steering and Flow Switch 25.4 mm ID x 1020.00 mm, SAE 100R3

1шт.

24

218-538

ELBOW,45 Degree, 1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF

- 45 degree, 1-5/16-12 flare x 1 inch PT, if used, models with ZF transmission automatic auxiliary steering and flow switch

1шт.

25

L113437

SWITCH

- flow, if used, models with ZF transmission automatic auxiliary steering and flow switch

1шт.

26

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

ADAPTER - straight, 1-5/16-12 flare x 1 inch PT, if used, models with ZF transmission automatic auxiliary steering and flow switch

1шт.
