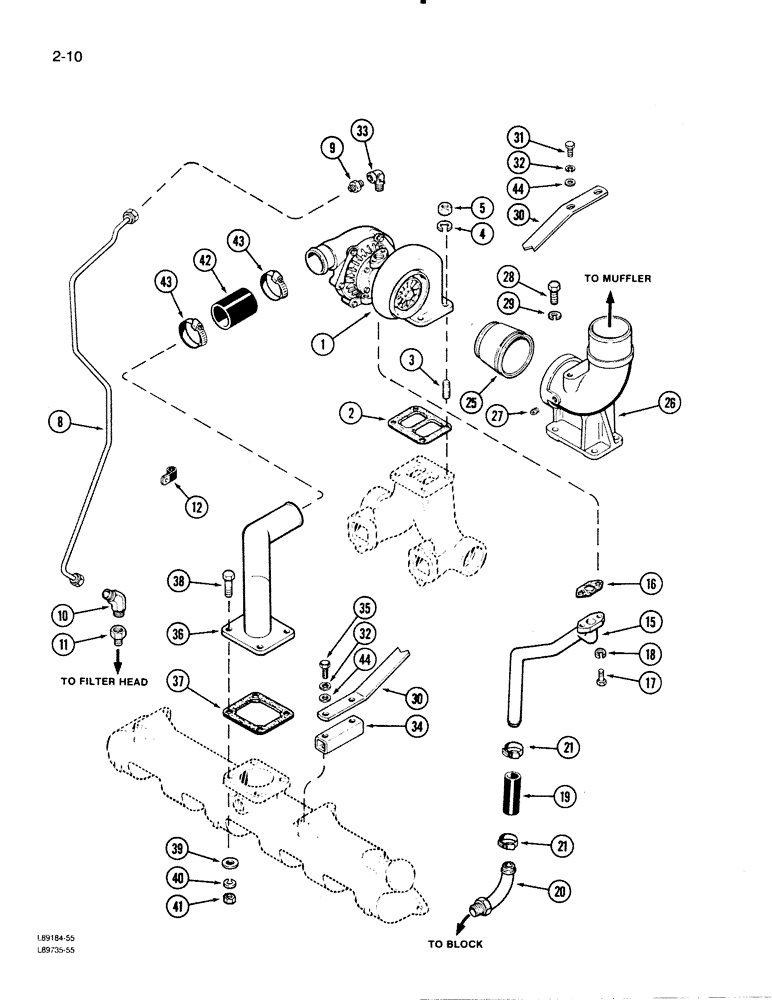

Запчасти Case W30 (2-10) - TURBOCHARGER SYSTEM, 504BDT ENGINE (02) - ENGINE

1

A157336

TURBOCHARGER

ASSEMBLY - engine, new

1шт.

1

A48192

REMAN-TURBOCHARGER

Turbocharger Assembly, Engine, Remanufactured

1шт.

1

A48191

CORE-TURBOCHARGER

Return Part Number, use this part number to return turbocharger core for credit

1шт.

2

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

3

G102128

BOLT

- turbocharger, 3/8 NC x 1-1/2 inch

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

NUT - hex lock, 3/8 inch NC

4шт.

8

A166064

TUBE

ASSEMBLY - oil supply

1шт.

9

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

CONNECTOR - oil supply tube to elbow

1шт.

10

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

- oil supply tube to reducer (45 degree)

1шт.

11

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

- elbow to filter head, 3/8 to 1/4 inch PT

1шт.

12

49845

CLAMP

CLIP - oil supply tube

1шт.

15

A62518

TUBE

- oil drain

1шт.

16

A58892

GASKET,1.59mm Thk

- drain, Serial Range: tube-turbocharger

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Drain tube Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

A156842

HOSE,22.2 mm ID x 88.90 mm, SAE 30R1 TYPE 1 PER SAE J30

0.90" ID x 3.50", SAE 30R1 type 1 per SAE J30 - Drain Tube to fitting

1шт.

20

A58897

FITTING

- drain hose to cylinder block

1шт.

21

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining, 1-3/16 to 1-3/4 inch

2шт.

25

A65554

TUBE

CONNECTOR - exhaust, Serial Range: elbow-turbocharger

1шт.

26

A61941

ELBOW

- exhaust

1шт.

27

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4 inch PT

1шт.

28

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Elbow to manifold Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

29

92-6

LOCK WASHER,3/8"

4шт.

30

A61944

BRACE

- exhaust elbow

1шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Brace Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

- turbocharger to connector (90 degree)

1шт.

34

A67057

SPACER

- brace to intake manifold

1шт.

35

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- brace to manifold, 3/8 NC x 2-1/2 inch

2шт.

36

A150450

ELBOW

- turbocharger to intake manifold

1шт.

37

A58910

GASKET

- elbow

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- elbow to manifold, hex, 3/8 NC x 1-1/2 inch

4шт.

39

95-6

WASHER,3/8"

- flat, 3/8 inch

4шт.

40

92-6

LOCK WASHER,3/8"

4шт.

41

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

42

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

- Elbow to turbocharger 2.00" ID x 2.88"

1шт.

43

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

retaining #28, 1.31/2.25 Type F Worm

2шт.

44

95-6

WASHER,3/8"

- flat, 3/8 x 1 x 1/16 inch

4шт.
