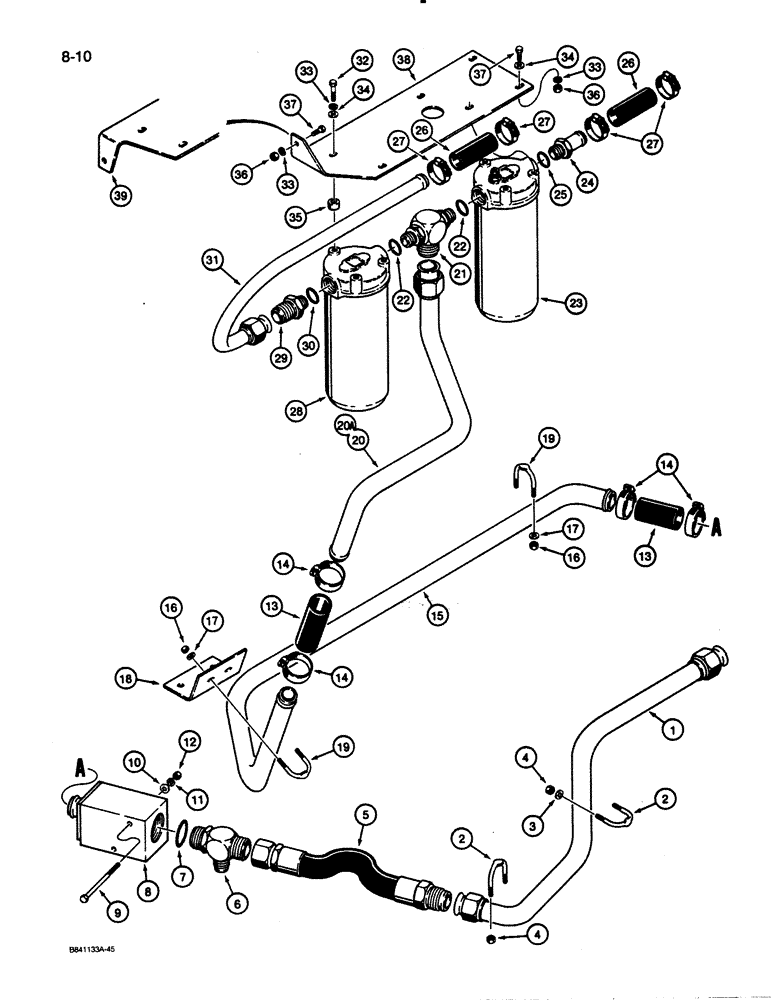

Запчасти Case W30 (8-10) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO FILTERS AND HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

L108927

TUBE,38.1 mm OD

- return from loader valve

1шт.

2

L105791

U-BOLT

- 5/16" - 18 NC

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

4

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

5

L107397

HOSE,38.1 mm ID x 583.00 mm, SAE 100R1 Type A

- return, 23" (583 mm) long

1шт.

6

L107509

TEE

- special

1шт.

7

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- tee

1шт.

8

L110287

VALVE,1-7/8" - 12

- cooler bypass, parts list Figure 8-46

1шт.

9

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

2шт.

10

95-6

WASHER,3/8"

- flat, 3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

13

R43922

HOSE

- 1-1/2" (38 mm) ID x 4" (102 mm) long, cut from R45924, see below

2шт.

14

214-352

CLAMP,#34, 1.94"-2.25", T-Bolt

- hose

4шт.

15

L112835

TUBE,38.1 mm OD

- return from bypass valve

1шт.

16

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16" - 18 NC

4шт.

17

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

4шт.

18

L105981

BRACKET

- tube

1шт.

19

L105791

U-BOLT

- 5/16" - 18 NC

2шт.

20

L112838

TUBE ASSY.,38.1 mm OD

TUBE - to filters, used with L111716 filter bracket, item 38

1шт.

20a

L116770

TUBE,38.1 mm OD

- to filters, used with L116767 filter bracket, item 39

1шт.

21

L106607

TEE

- special

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

2шт.

23

L114122

FILTER

- hydraulic, was L104785, parts list Figure 8-44

1шт.

24

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

1шт.

25

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- stem fitting

1шт.

26

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465, see below 31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

27

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

28

L108576

FILTER

- hydraulic, parts list Figure 8-44

1шт.

29

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight

1шт.

30

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

31

L108013

TUBE,31.75 mm OD x 586.8, 127.1 mm L

- filter to reservoir

1шт.

32

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

33

92-6

LOCK WASHER,3/8"

7шт.

34

95-6

WASHER,3/8"

- flat, 3/8"

6шт.

35

A37418

SPACER

- filter

4шт.

36

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

3шт.

37

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

38

L111716

SUPPORT

BRACKET - oil filter, has end bent up, if used

1шт.

39

L116767

BRACKET

- oil filter, has end bent down, if used

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

1.25" ID x 180.00", SAE 100R3

1шт.

R45924

HOSE

- 1-1/2 inch (38 mm) ID x 9-1/2 inch (241 mm) long

1шт.
