Запчасти Case W30 (8-08) - HYDRAULIC CIRCUIT, FLOW CONTROL VALVE TO LOADER CONTROL VALVE (08) - HYDRAULICS

1

L106609

VALVE

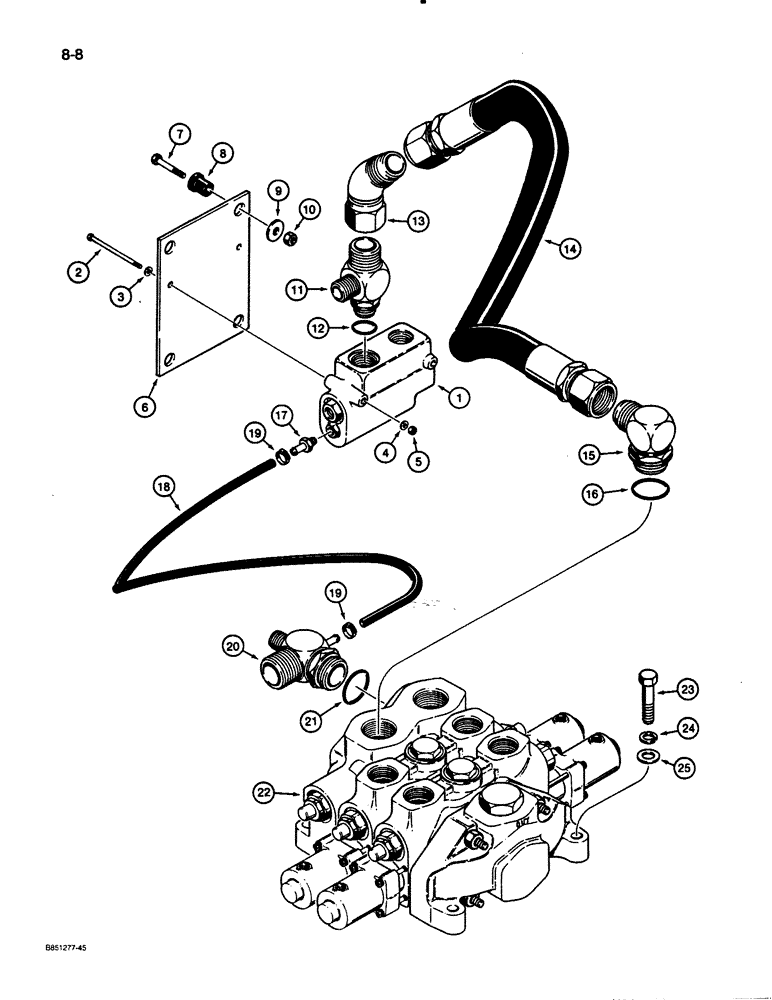

- flow control, loader hydraulic circuit, parts list Figure 8-42

1шт.

2

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

3

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

6

L116457

PLATE ASSY.

PLATE - valve mounting

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

8

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

- plate

3шт.

9

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

- special

3шт.

10

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-locking, 3/8" - 16 NC

3шт.

11

L114938

FITTING

TEE - special

1шт.

12

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- tee

1шт.

13

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

- 90 degree

1шт.

14

L112281

HOSE,31.8 mm ID x 546.00 mm, SAE 100R12

Supply to Loader Valve 31.8 mm ID x 546.00 mm, SAE 100R12

1шт.

15

218-5334

ELBOW,90º, 1 5/8"-12, 37º x 1 7/8"-12, O-Ring

- 90 degree

1шт.

16

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- elbow

1шт.

17

217-193

FITTING,1/4" Hose Barb x 7/16" - 20 Male ORB

STEM FITTING - straight

1шт.

18

L106022

HOSE

- return, 41-3/8" (1050 mm) long, cut from A21561 bulk hose, see below

1шт.

19

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

2шт.

20

L107464

FITTING

TEE - special

1шт.

21

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- tee

1шт.

22

REF

INSTRUCTION

VALVE - loader control, see Figures 8-50 through 8-68 for correct valve and components

1шт.

23

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex head, 5/8" - 11 NC x 2-1/2"

3шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

25

95-10

WASHER,5/8"

- flat, 5/8"

3шт.

A21561

HOSE,0.25" ID x 25.00"

0.25" ID x 25.00' - Bulk

1шт.
