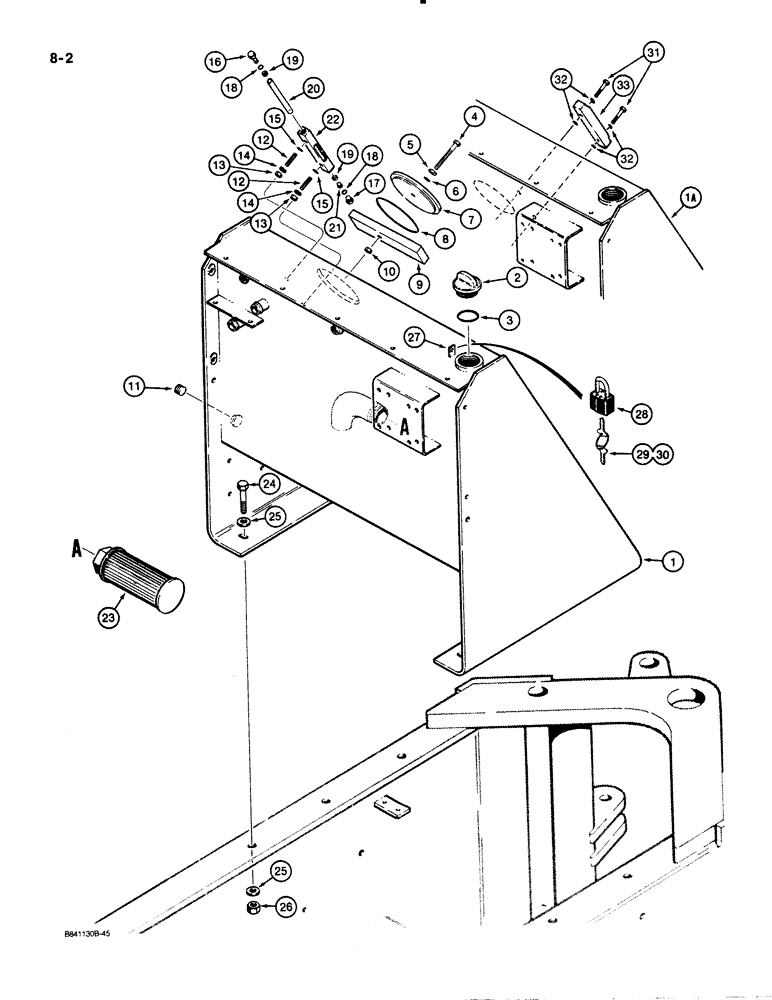

Запчасти Case W30 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

L123674

TANK

RESERVOIR - hydraulic, used on models with Allison transmission and L116247 sight gauge (items 31 through 33 below)

1шт.

L118571

TANK

RESERVOIR - hydraulic, used on models with ZF transmission

1шт.

L116033

TANK

RESERVOIR - hydraulic, used on models with Allison transmission and L70550 sight gauge, no longer available, order L123674 reservoir, L116247 sight gauge (items 31 through 33 below), L116770 tube

1шт.

and L116767 bracket (items 20A and 39 on page 8-11)

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, uses L70550 sight gauge

1шт.

1a

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic, uses L116247 sight gauge

1шт.

2

L100349

PLUG

CAP - reservoir

1шт.

3

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - cap

1шт.

4

113-409

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch, used on L116033 or L123674

1шт.

reservoirs

1шт.

4

113-2462

BOLT,Hex, 1/2" - 13 x 3", Gr 5

Used on L118571 reservoir Hex, 1/2"-13 x 3", G5

1шт.

allowing clearance for filter

1шт.

5

L78045

WASHER

- seal

1шт.

6

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

SEAL - access cover bolt

1шт.

7

L77124

COVER ASSY

COVER - access, reservoir

1шт.

8

L111687

O-RING,6.975" ID x 0.275" Width

- access cover

1шт.

9

L77125

BAR

- cover hold down

1шт.

10

131-510

LOCK NUT,1/2"-13

NUT - hex, self-locking, 1/2" - 13 NC

1шт.

11

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head, 3/4" NPT

1шт.

L70550

ELECTRICAL GAUGE

GAUGE - sight, used with L116033 reservoir

1шт.

12

D75821

STUD

- mounting

2шт.

13

131-402

NUT,PAL, 1/2"-20

NUT - hex, 1/2" - 20 NF

2шт.

14

92-8

LOCK WASHER,1/2"

2шт.

15

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- stud seal

2шт.

16

NSS

NOT SOLD SEPARAT

CAP - top

1шт.

17

NSS

NOT SOLD SEPARAT

CAP - bottom

1шт.

18

N8539

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cap

2шт.

19

D75819

GASKET

- lens

2шт.

20

D75845

SIGHTGLASS

LENS - sight gauge

1шт.

21

NSS

NOT SOLD SEPARAT

SEAT - body

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - gauge

1шт.

23

L104990

FILTER SCREEN

SCREEN - suction

1шт.

24

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

25

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - special

12шт.

26

25-1010

NUT,5/8"-11, G5

6шт.

27

L79201

BRACKET

TAB - lock

1шт.

28

D93753

PADLOCK

- includes keys, if used

1шт.

29

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

30

R29555

KEY

- for Master padlock only, if used

2шт.

L116247

GAUGE

- sight, used with L123674 and L118571 reservoirs

1шт.

31

N13213

BOLT

BOLT - special, sight gauge

2шт.

32

N8537

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

- seal, sight gauge

4шт.

33

NSS

NOT SOLD SEPARAT

BODY - sight gauge

1шт.
