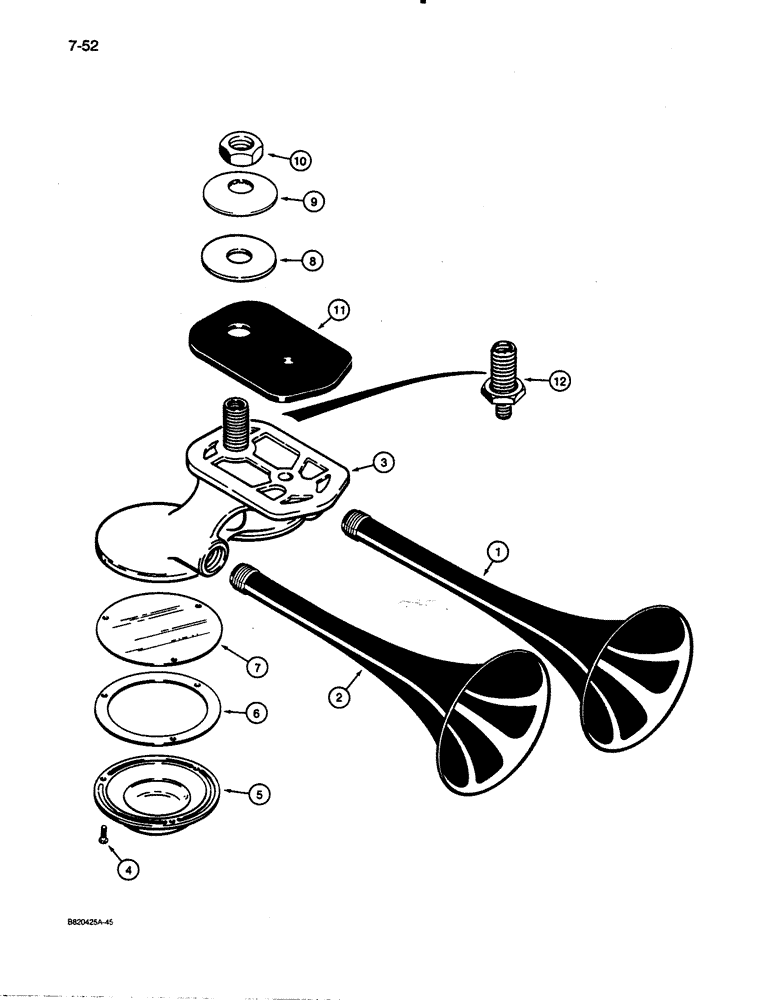

Запчасти Case W30 (7-52) - L76560 HORN (07) - BRAKES

L76560

HORN

ASSEMBLY - air

1шт.

1

D76966

HORN

- long

1шт.

2

D76967

HORN

- short

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - horn

1шт.

D76968

KIT

- diaphragm

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - cover

6шт.

5

NSS

NOT SOLD SEPARAT

COVER - body

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cover

2шт.

7

NSS

NOT SOLD SEPARAT

DIAPHRAGM - horn

2шт.

8

195-108

WASHER,5/8"

- flat, 5/8"

1шт.

9

193-63

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8"

1шт.

10

129-127

NUT,5/8"-18, G5

1шт.

11

N7907

GASKET

- horn

1шт.

12

N7908

FITTING

- horn

1шт.
