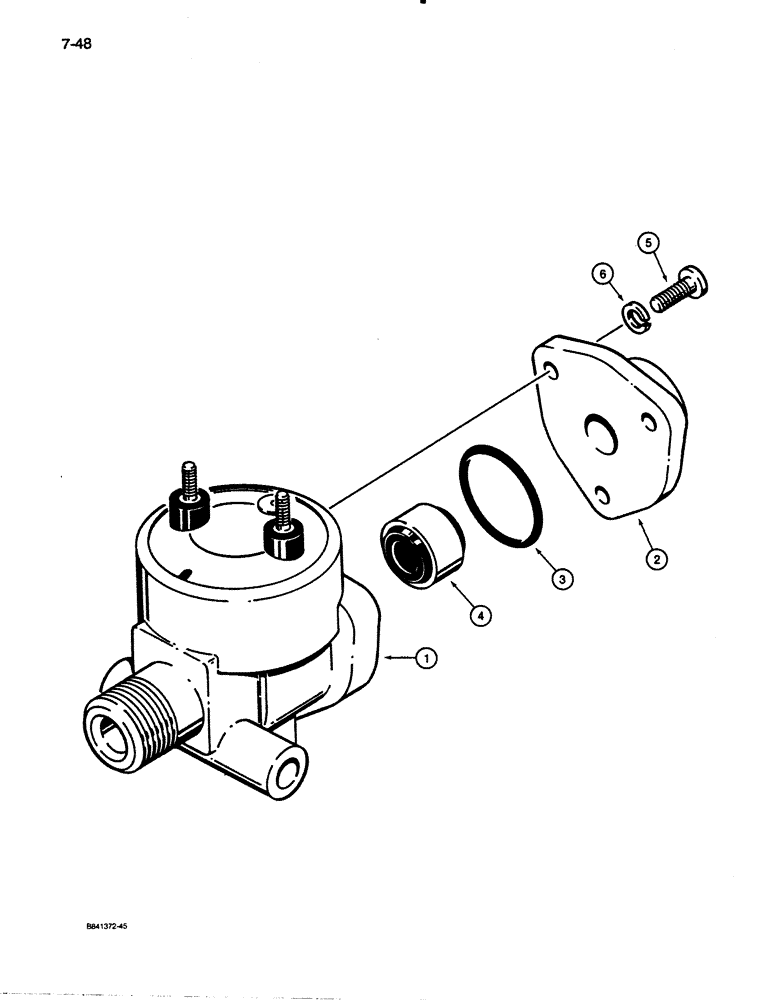

Запчасти Case W30 (7-48) - DOUBLE CHECK VALVE AND STOPLIGHT SWITCH (07) - BRAKES

L114274

SWITCH

VALVE ASSEMBLY - double check and stoplight switch, 1/2" NPT, male, no longer available, order L116542 valve assembly and items 34 - 37 on Figure 7-18

1шт.

L116542

VALVE, CHECK

VALVE ASSEMBLY - double check and stoplight switch, 3/8" NPT, male

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

CAP - valve body

1шт.

3

L31499

O-RING,1" ID x 40546" OD x 3"

- cap

1шт.

4

L31498

ROD

SHUTTLE - check valve

1шт.

5

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- pan head slotted, No. 10 - 24 NC x 1/2"

3шт.

6

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.
