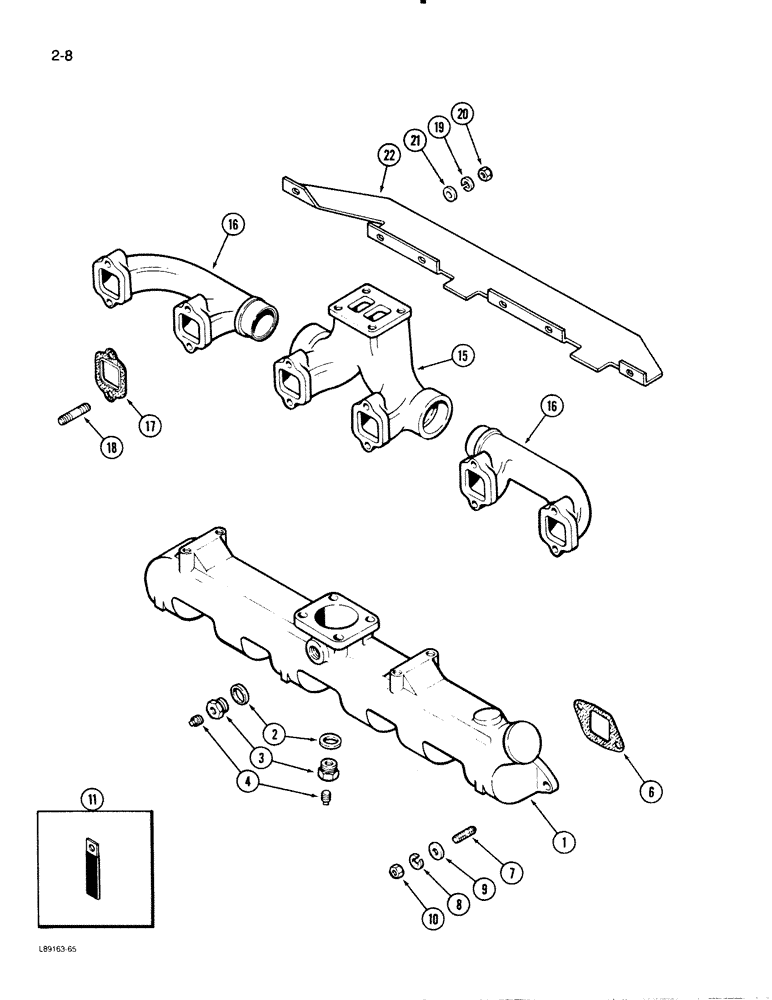

Запчасти Case W30 (2-08) - MANIFOLD, INTAKE, 504BDT ENGINE (02) - ENGINE

1

A154446

MANIFOLD

ASSEMBLY - intake

1шт.

2

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

3

L10283

PLUG

- heater hole

2шт.

4

221-1849

PLUG

- square head, 1/8 inch PT

2шт.

6

A58662

MANIFOLD GASKET

- intake manifold

6шт.

7

A59077

STUD

- intake manifold, 3/8 NC x 1-13/16 inch

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

- hex, 3/8 inch NC

12шт.

11

A149624

CLIP

- air conditioning hoses (Intake manifold studs)

3шт.

15

A76322

MANIFOLD

- exhaust, center

1шт.

16

A65917

MANIFOLD

- exhaust, ends

2шт.

17

A58895

GASKET

- exhaust manifold

6шт.

18

A140924

STUD

- exhaust manifold, 3/8 inch NC x 2-5/8 inch

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - hex lock, 3/8 inch NC (Exhaust manifold)

12шт.

21

195-25

WASHER,3/8"

- flat, 13/32 x 13/16 x 1/16 inch (Heat shield), exhaust

6шт.

22

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.
