Запчасти Case W30 (7-42) - L109922 PILOT VALVE (07) - BRAKES

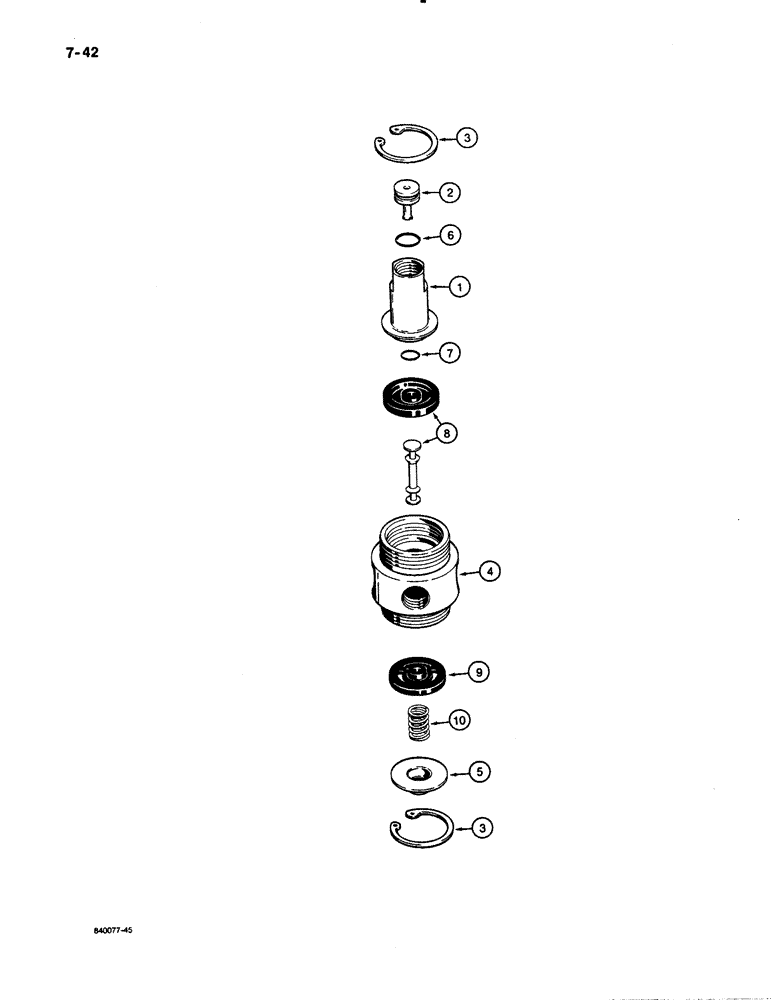

Схема запчастей Case W30 - (7-42) - L109922 PILOT VALVE (07) - BRAKES

Артикул

Название

Примечание

Количество

L109922

VALVE

ASSEMBLY - pilot

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - piston

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

3

A15110

SNAP RING,0.812", Int, #81

Ring, Snap, , valve 0.812", Int, #81

2шт.

4

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

5

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

N8740

KIT

- valve repair

1шт.

6

S5602

O-RING,0.07" Thk x 0.208" ID, -9, Cl 5, 75 Duro

- piston

1шт.

7

T30271

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

- piston housing

1шт.

8

NSS

NOT SOLD SEPARAT

STEM ASSEMBLY - with diaphragm

1шт.

9

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

Выбрано товаров: 12
