Запчасти Case W30 (7-38) - L112239 PARKING BRAKE ACTUATOR (07) - BRAKES

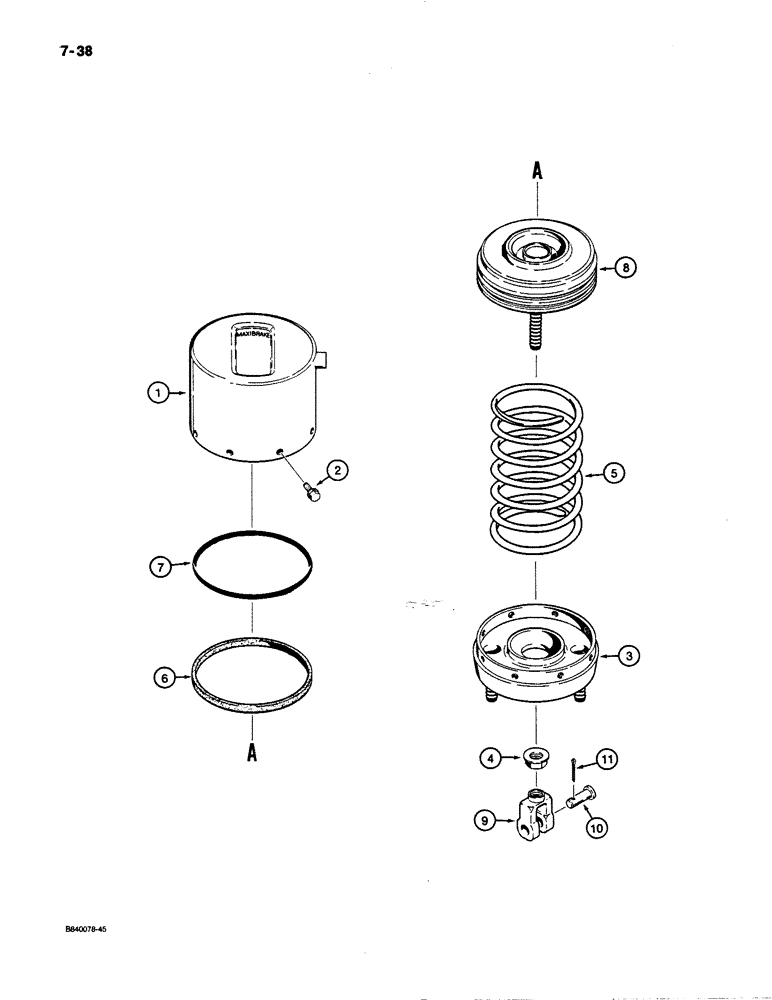

Схема запчастей Case W30 - (7-38) - L112239 PARKING BRAKE ACTUATOR (07) - BRAKES

Артикул

Название

Примечание

Количество

L112239

CHAMBER

ACTUATOR ASSEMBLY - parking brake, used on models

1шт.

with ZF transmission

1шт.

1

N8657

CYLINDER

- brake actuator

1шт.

2

121-124

BOLT,Hex Flg, 5/16"-24 x 1/2", Serr

AND WASHER - cylinder

8шт.

3

N6900

PLATE

- mounting

1шт.

4

S89907

FLANGE NUT

- flange, 5/8" - 18 NF

1шт.

5

S87131

SPRING

- piston return

1шт.

6

S89912

WIPER

- felt

1шт.

7

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

- large

1шт.

8

N8658

PISTON

- brake actuator

1шт.

L35613

YOKE

ASSEMBLY - parking brake actuator

1шт.

9

NSS

NOT SOLD SEPARAT

YOKE - shaft

1шт.

10

L33649

AXLE PIN

PIN - yoke

1шт.

11

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Выбрано товаров: 14
