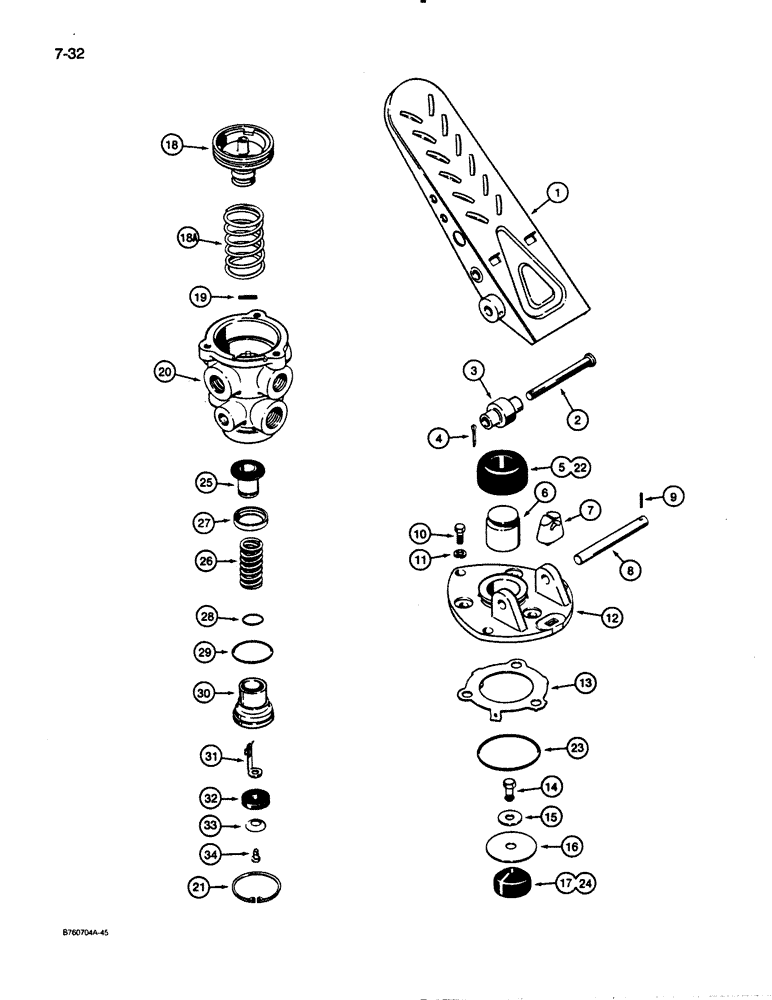

Запчасти Case W30 (7-32) - L112713 TREADLE AND BRAKE VALVE (07) - BRAKES

L112713

VALVE

TREADLE AND VALVE ASSEMBLY - brake

2шт.

N9338

PEDAL

TREADLE ASSEMBLY - brake valve

1шт.

1

NSS

NOT SOLD SEPARAT

TREADLE - brake valve

1шт.

2

L31367

PIN

- roller, treadle valve

1шт.

3

L32676

ROLLER

- treadle valve

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L31364

BOOT

- treadle, brake, included in L31806 repair kit, see items 22 to 34 below

1шт.

6

N9337

PLUNGER

- treadle, brake

1шт.

7

L32674

BUTTON

- stop

1шт.

8

L31465

PIN

- fulcrum

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Fulcrum pin 1/8" x 7/8", Slotted

1шт.

10

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

3шт.

11

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

12

N9336

PLATE

- mounting, brake treadle

1шт.

L15782

BRAKE VALVE

ASSEMBLY - brake

1шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - valve

1шт.

14

NSS

NOT SOLD SEPARAT

BOLT - locking, special

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - compression, spring

1шт.

16

NSS

NOT SOLD SEPARAT

SEAT - spring, piston, flat

1шт.

16a

NSS

NOT SOLD SEPARAT

SEAT - spring, piston, recessed, not shown

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - rubber piston, included in L31806 repair kit, see items 22 - 34 below

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON - valve

1шт.

18a

NSS

NOT SOLD SEPARAT

SPRING - piston return

1шт.

19

NSS

NOT SOLD SEPARAT

FILTER - vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

L31806

KIT

- repair, valve

1шт.

22

L31364

BOOT

- treadle

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - piston

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - rubber, piston

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - inlet and exhaust

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - inlet and exhaust

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING - valve

1шт.

27

NSS

NOT SOLD SEPARAT

RETAINER - valve

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

30

NSS

NOT SOLD SEPARAT

SEAT - check valve exhaust

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - preload, inlet valve

1шт.

32

NSS

NOT SOLD SEPARAT

DIAPHRAGM - valve

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - diaphragm

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

MACHINE SCREW - slotted head, No. 8 - 32 NC x 3/8"

1шт.
