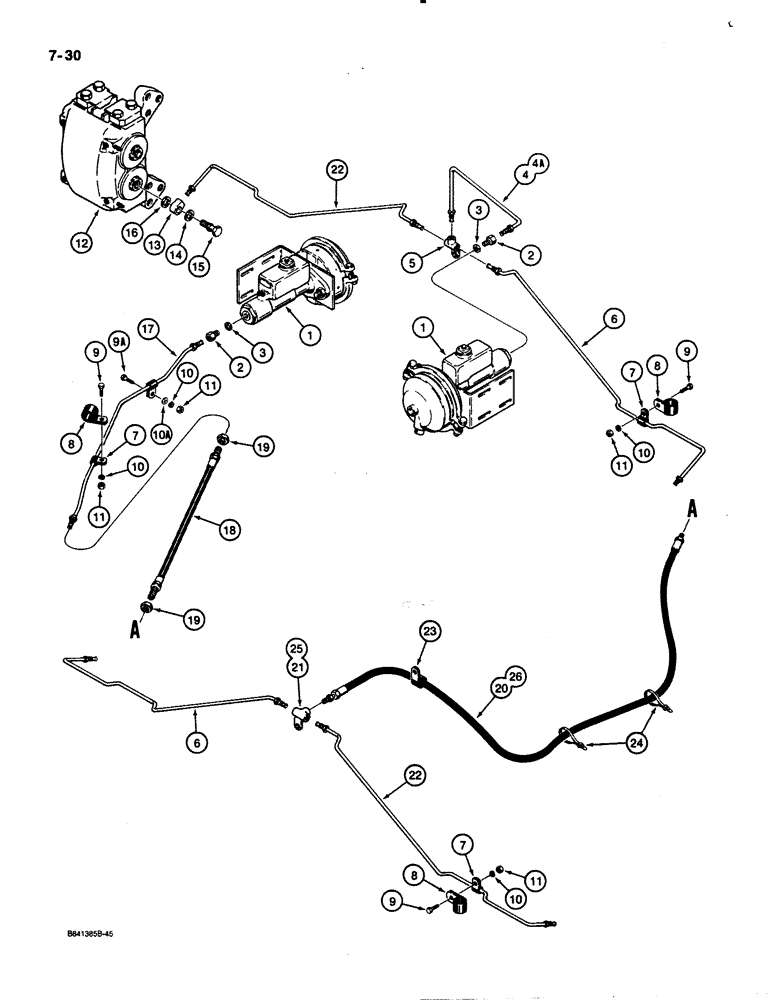

Запчасти Case W30 (7-30) - BRAKE SYSTEM, BRAKE ACTUATORS TO WHEEL CYLINDERS (07) - BRAKES

1

L113007

CYLINDER

BRAKE ACTUATOR - parts list Figure 7-34

2шт.

2

222-1116

ADAPTER,7/16"-24 Fem x 1/2"-20, Inv Fl

CONNECTOR - straight

2шт.

3

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - connector

2шт.

4

L113055

TUBE,6.35 mm OD

- front to tee, used on models with Allison transmission

1шт.

4a

L118333

TUBE,6.35 mm OD x 152, 118 mm L

- front to tee, used on models with ZF transmission

1шт.

5

A12452

FITTING

TEE - front

1шт.

6

L108024

TUBE,6.35 mm OD

- tee to wheel cylinder, right-hand front, left-hand rear

2шт.

7

49851

SHIELD

- tube

6шт.

8

R14668

CLAMP

- tube support

5шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

9a

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

10

92-6

LOCK WASHER,3/8"

6шт.

10a

D41740

WASHER

- flat, 3/8", hardened

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

6шт.

12

L127645

BRAKE CALIPER

CALIPER - brake, was L108853 or L126863, parts list Figure 7-02

4шт.

12

L127645R

REMAN-BRAKE ASSY.

W30

4шт.

12

L127645C

CORE-BRAKE ASSY.

Return Number

4шт.

13

A18531

FITTING

-, Serial Range: tube-caliper

4шт.

14

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - fitting

4шт.

15

A12864

BOLT

- special

4шт.

16

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- fitting, inner, .540" (13.72 mm) ID

4шт.

17

L106276

TUBE,6.35 mm OD

- master cylinder to rear axle

1шт.

18

L105976

HOSE,3.18 mm ID x 605.00 mm, SAE 1401

- brake, through pivot, 23-13/16" (605 mm) long

1шт.

19

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - jam, bulkhead

2шт.

20

L106088

HOSE ASSY.

HOSE - brake, to rear axle, 69" (1750 mm) long, for service order items 25 and 26

1шт.

21

L14854

TEE

- rear, for service order items 25 and 26

1шт.

22

L110653

TUBE,6.35 mm OD

- tee to wheel cylinder, left-hand front, right-hand rear

2шт.

23

49836

CLAMP

- hose

1шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

25

L76365

FITTING

TEE - rear

1шт.

26

L117847

HOSE,4.76mm ID x 1750mm L

Brake to Rear Axle 4.76 mm ID x 1750.00 mm, SAE J1401

1шт.
