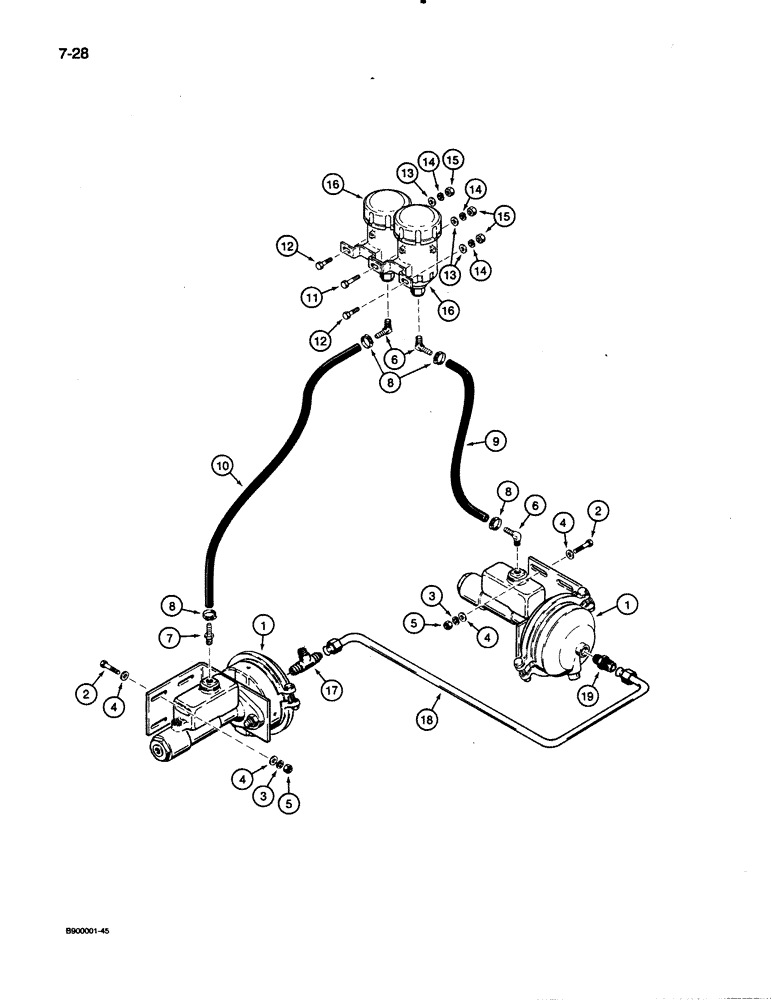

Запчасти Case W30 (7-28) - BRAKE SYSTEM, BRAKE FLUID RESERVOIR TO BRAKE ACTUATORS, P.I.N. 808P6124P AND AFTER (07) - BRAKES

1

L113007

CYLINDER

BRAKE ACTUATOR - Minnesota Automotive part No. 02-460-503, parts list Figure 7-34

2шт.

2

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

D41740

WASHER

- flat, 3/8", hardened

8шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/4 inch stem end x PT

3шт.

7

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight, 1/4 inch stem end x PT

1шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

9

L109195

HOSE

- supply, front actuator, 1/4" (6 mm) ID x 9-1/2 inch (241 mm) long, see parts substitution list

1шт.

for bulk hose options

1шт.

10

L109196

HOSE

- supply, left-hand actuator, 1/4" (6 mm) ID x 17 inch (432 mm) long, see parts substitution list for

1шт.

bulk hose options

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

13

495-21044

WASHER,3/8"

3шт.

14

492-11038

LOCK WASHER,3/8"

3шт.

15

425-106

NUT,3/8"-16, Cl 5

3шт.

16

L114928

RESERVOIR ASSY.

RESERVOIR ASSEMBLY - brake fluid, parts list Figure 7-46

2шт.

17

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

1шт.

18

L118331

TUBE,12.7 mm OD x 582, 221 mm L

- brake actuator

1шт.

19

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.
