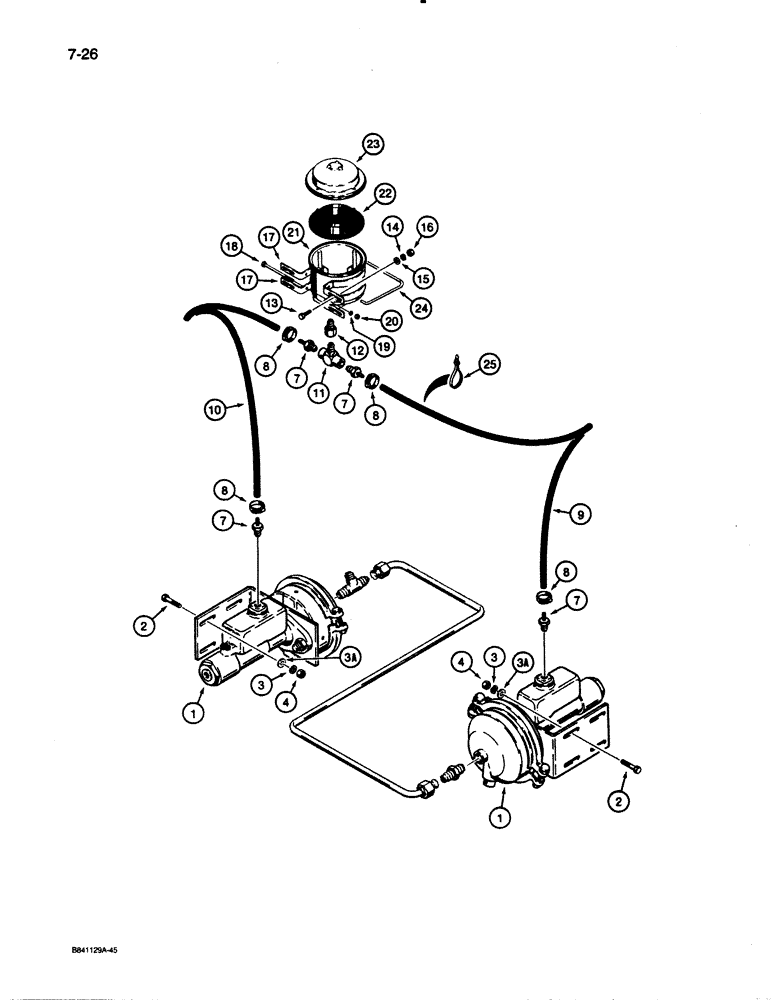

Запчасти Case W30 (7-26) - BRAKE SYSTEM, BRAKE FLUID RESERVOIR TO BRAKE ACTUATORS, PRIOR TO P.I.N. 808P6124P (07) - BRAKES

1

L113007

CYLINDER

BRAKE ACTUATOR - Minnesota Automotive part No. 02-460-503, parts list Figure 7-34

2шт.

2

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

3a

D41740

WASHER

- flat, 3/8", hardened

8шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

RESERVED

1шт.

6

RESERVED

1шт.

7

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

STEM FITTING - straight

4шт.

8

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

4шт.

9

L108743

HOSE

- supply, right-hand, 1/4" (6 mm) ID x 19-1/4" (490 mm) long

1шт.

10

L108742

HOSE

- supply, left-hand, 1/4" (6 mm) ID x 10-1/2" (265 mm) long

1шт.

11

217-1141

TEE,1/4"-18 Female x 1/4"-18 Male Br

-1/4" NPT, brake hoses

1шт.

12

221-1086

REDUCER,3/8" NPT x 1/4" NPT

- 3/8" NPT x 1/4" NPT

1шт.

13

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

16

25-104

NUT,1/4"-20, G5

4шт.

L71279

TANK

RESERVOIR - brake fluid

1шт.

17

NSS

NOT SOLD SEPARAT

BRACKET - reservoir

2шт.

18

113-49

BOLT,Hex, 1/4" - 20 x 4", Gr 5

- hex head, 1/4" - 20 NC x 4"

2шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

20

25-104

NUT,1/4"-20, G5

2шт.

21

NSS

NOT SOLD SEPARAT

BODY - reservoir

1шт.

22

D75884

DIAPHRAGM

- reservoir

1шт.

23

D75883

COVER

- reservoir

1шт.

24

D75882

BAIL

- reservoir

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
