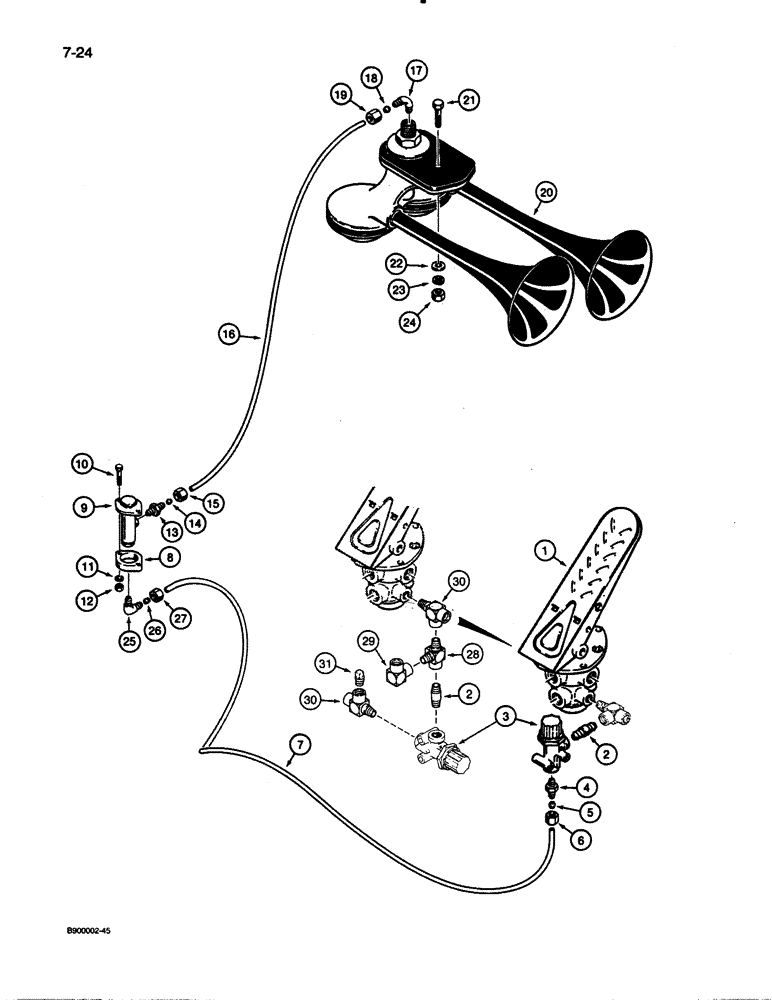

Запчасти Case W30 (7-24) - BRAKE SYSTEM, TREADLE TO HORN (07) - BRAKES

1

REF

INSTRUCTION

TREADLE AND VALVE ASSEMBLY - right-hand, parts list Figure 7-32

1шт.

2

221-1131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - 1" x 1/4" NPT

1шт.

3

L13530

VALVE

- pressure protection, mounted horizonal on

1шт.

late production, parts list Figure 7-50

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

5

222-2610

SLEEVE

- fitting

1шт.

6

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

7

L46110

TUBE,17" L

- 1/4" (6 mm) OD x 17" (432 mm) long

1шт.

8

L114090

SPACER

- horn valve

1шт.

9

L12647

VALVE

- horn, air, parts list Figure 7-50

1шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

2шт.

12

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

14

222-2610

SLEEVE

- fitting

1шт.

15

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

16

L16535

TUBE,0.25" OD x 20.5" L

- 1/4" (6 mm) x OD x 20-1/2" (521 mm) long

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

18

222-2610

SLEEVE

- fitting

1шт.

19

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

20

L76560

HORN

- air, parts list Figure 7-52

1шт.

21

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

22

195-102

WASHER,1/4"

- flat, , plated 1/4"

1шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

1шт.

24

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

26

222-2610

SLEEVE

- fitting

1шт.

27

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

28

217-1175

TEE,1/8"-27 Male x 1/8"-27 Female Run

- 1/4 inch PT male branch x male x female, if used

1шт.

29

217-1051

ADAPTER

ELBOW - 90 degree, 1/4 inch female PT, if used

1шт.

30

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female x male, was

1шт.

221-1691 street tee

1-2шт.

31

221-841

PLUG

- square, 1/4 inch PT, if used

1шт.
