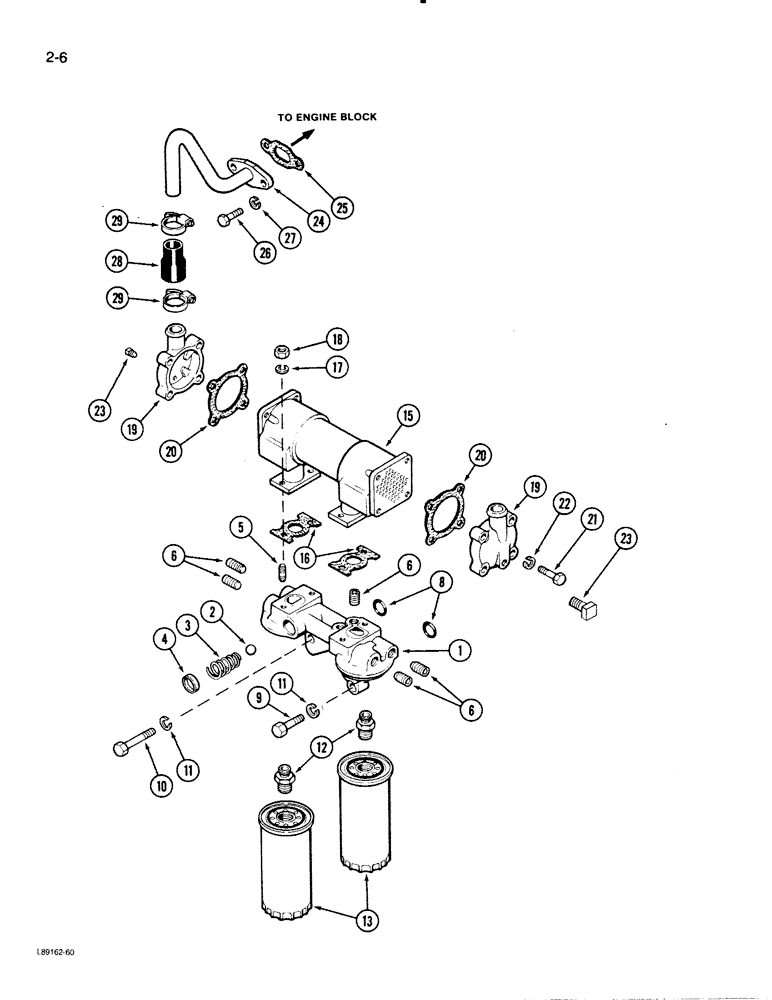

Запчасти Case W30 (2-06) - OIL FILTER AND HEAT EXCHANGER, 504BDT ENGINE (02) - ENGINE

1

A154541

BASE

ASSEMBLY - oil filter

1шт.

2

211-17

BALL,3/4" Dia

- relief

1шт.

3

A146897

SPRING

- relief

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- cup, 1-1/4 inch type

1шт.

5

G102128

BOLT

- 3/8 NC x 1-17/32 inch

4шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- square socket head, 1/2 inch PT

5шт.

8

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- filter head

2шт.

9

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

10

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

11

195-33

WASHER,1/2"

- flat, 1/2 x 1-1/16 x 1/8 inch

2шт.

12

A63916

ADAPTER

-, Serial Range: element-base

2шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT - filter, oil (J I Case installed only) 6-7/8 inch long (Order A44081)

2шт.

13

A44081

ENGINE OIL FILTER

ELEMENT - filter, oil, 8-5/8 inch long

2шт.

15

A75295

OIL COOLER

EXCHANGER - heat, oil

1шт.

16

A65359

GASKET

- heat exchanger to filter base

2шт.

17

92-6

LOCK WASHER,3/8"

4шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8 inch NC

4шт.

19

A64349

HOOD

PLATE - end, heat exchanger

2шт.

20

A63920

GASKET

- end plate

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

8шт.

22

92-6

LOCK WASHER,3/8"

8шт.

23

221-849

PLUG,Hex Soc, 1/8"-27

- square head, 1/8 inch PT

2шт.

24

A75296

TUBE

- heat, Serial Range: Exchanger-block

1шт.

25

A58670

GASKET

- tube

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

A64353

HOSE

- end covers to water tubes

1шт.

29

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining, 1-3/16 to 1-3/4 inch

2шт.
