Запчасти Case W30 (7-22) - BRAKE SYST, PARKING BRAKE & CLUTCH CUTOUT (07) - BRAKES

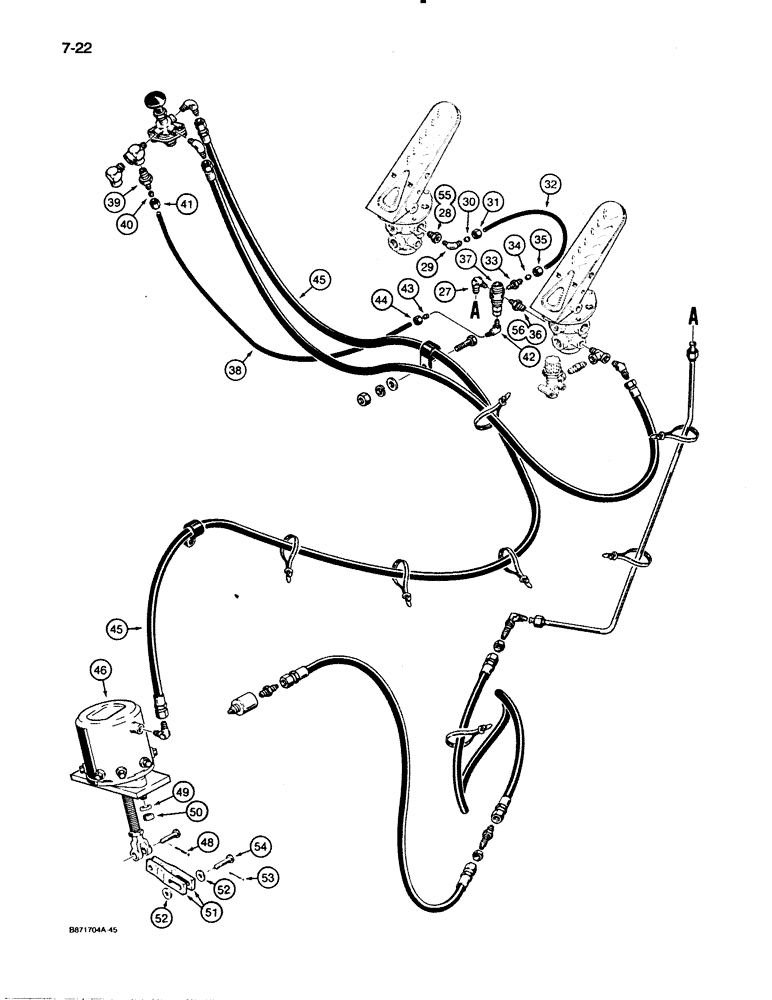

Схема запчастей Case W30 - (7-22) - BRAKE SYST, PARKING BRAKE & CLUTCH CUTOUT (07) - BRAKES

Артикул

Название

Примечание

Количество

27

218-492

90 ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

28

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - compression, 90 degree

1шт.

29

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

30

222-2610

SLEEVE

- fitting

1шт.

31

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

32

L110859

TUBE,6.35 mm OD x 254 mm L

- pilot to treadle, 1/4" (6 mm) OD x 10" (254 mm) long

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

34

222-2610

SLEEVE

- fitting

1шт.

35

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

36

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

ADAPTER - straight

1шт.

37

L109922

VALVE

- pilot, parts list Figure 7-42

1шт.

38

L110858

TUBE,1335 mm L

- pilot to parking brake valve, 1/4" (6 mm) 0D x 52-1/2" (1335 mm) long

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight

1шт.

39

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

40

222-2610

SLEEVE

- fitting

1шт.

41

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING - compression, 90 degree

1шт.

42

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

43

222-2610

SLEEVE

- fitting

1шт.

44

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

45

L71225

HOSE ASSY.,0.25" ID x 72.00", SAE J1402 Type B

HOSE ASSY, 0.25" ID x 72.00", SAE J1402, Type B, Parking Brake, Used On Models With ZF Transmission

1шт.

46

L112239

CHAMBER

PARKING BRAKE ACTUATOR - parts list Figure 7-38, used on models with ZF transmission

1шт.

47

L33649

AXLE PIN

PIN - yoke, used on models with ZF transmission

1шт.

48

132-310

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Used on models with ZF transmission 1/8" x 1"

1шт.

49

196-26

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, hardened, 21/32 x 1-5/16 x 5/32 inch, was, used on models with ZF transmission

1шт.

D43266, used on models with ZF transmission

2шт.

50

131-676

LOCK NUT,5/8"-11, GB

NUT - hex, 5/8" - 18 NF, used on models with ZF transmission

2шт.

51

L118574

DRAG LINK

LINK - parking brake, used on models with ZF transmission

2шт.

52

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32"), Used on models with ZF transmission 5/16"

2шт.

53

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), , used on models with ZF transmission 1/8" x 1"

1шт.

54

S10768

PIN

- clevis, used on models with ZF transmission

1шт.

55

221-1087

REDUCER

- 1/2" NPT x 1/8" NPT, used on models with ZF transmission

1шт.

56

221-841

PLUG

- pipe, 1/4", not as shown, used on models with ZF transmission

1шт.

Выбрано товаров: 35
