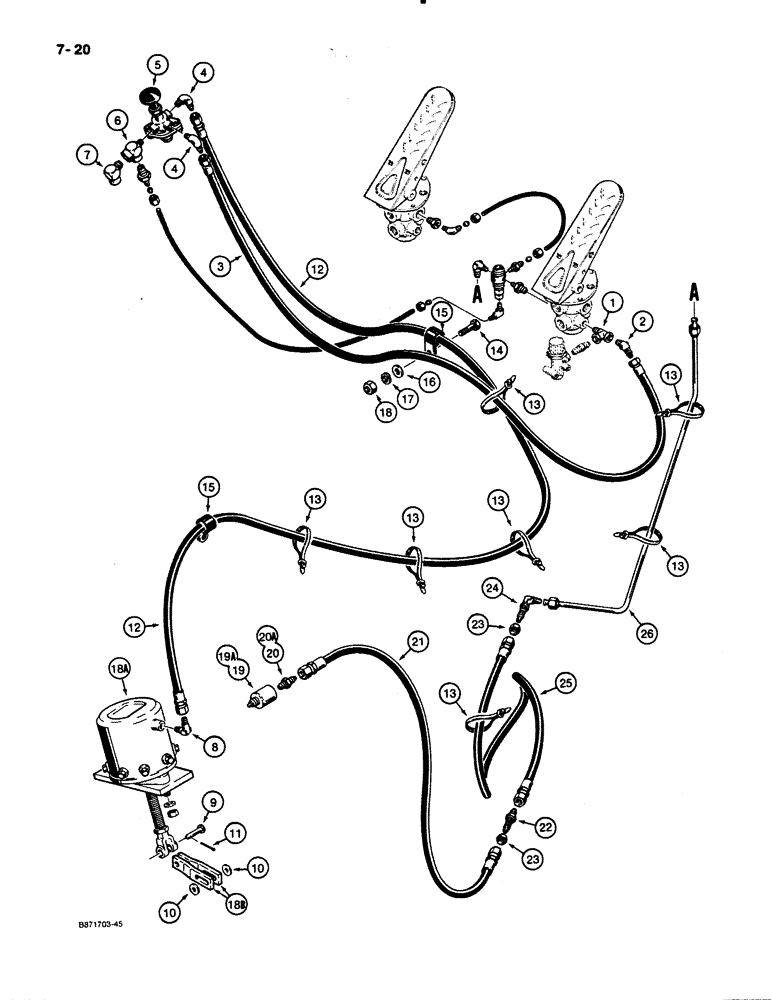

Запчасти Case W30 (7-20) - BRAKE SYSTEM, PARKING BRAKE AND CLUTCH CUTOUT (07) - BRAKES

1

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- 1/4 inch PT female branch x female x male, was 221-1691 street tee

1шт.

2

218-1092

ELBOW,45 Degree, 7/16-20" NPTF x 1/4"-18 37 Degree

- 45 degree

1шт.

3

L103355

HOSE,0.25" ID x 50.00", SAE J1402C Type A

Parking Brake 0.25" ID x 50.00", SAE J1402C Type A

1шт.

4

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

2шт.

5

L103834

VALVE

ASSEMBLY - parking brake, parts list Figure 7-40

1шт.

6

217-1250

TEE,1/4"-18 Female x 1/8"-27 Male Run

- special

1шт.

7

L117621

ELBOW

STREET ELBOW - 90 degree, 1/8" x 1/4" NPT

1шт.

8

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

9

141-5

CLEVIS PIN,7/16" x 1.190"

- 7/16"

1шт.

10

95-7

WASHER,7/16"

- flat, 7/16"

2шт.

11

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

12

L107285

HOSE,6.35 mm ID x 2530.00 mm, SAE 1402-A

- parking brake, 98" (2490 mm) long, used on models with allison transmission

1шт.

Ref #12A - Two L103297 Split Grommets are used on the (Ref #12) Hoses where they pass through the floorboard.

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, used on models with allison transmission

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on models with Allison transmission Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

15

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- hose, used on models with allison transmission

2шт.

16

95-6

WASHER,3/8"

- flat, , used on models with allison transmission 3/8"

1шт.

17

92-6

LOCK WASHER,3/8"

used on models with allison transmission 3/8"

1шт.

18

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC, used on models with allison transmission

1шт.

18a

L61187

CHAMBER

PARKING BRAKE ACTUATOR - parts list Figure 7-36, used on models with allison transmission

1шт.

18b

L108528

LINK

- parking brake, used on models with allison transmission

2шт.

19

L111571

CYLINDER

- clutch cut-out, 1/8" NPT, no longer available, order items 19A and 20A, used on models with allison transmission

1шт.

19a

L117120

CYLINDER

- clutch cut-out, 1/4" NPT, used with item 20A 218-443 adapter, used on models with allison transmission

1шт.

20

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight, used with item 19 L111571 cylinder, Used on models with allison transmission 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

20a

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, used with item 19A L117120 cylinder, used on models with allison transmission

1шт.

21

L106090

HOSE,6.35 mm ID x 480.00 mm, SAE 1402-A

- clutch cut-out, 18-7/8" (480 mm) long, used on models with allison transmission

1шт.

22

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ, used on models with allison transmission

1шт.

23

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - jam, bulkhead, Used on models with Allison transmission

2шт.

24

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

Used on models with Allison transmission 90º Blkhd, 9/16"-18, 37º x 9/16"-18, 37º

1шт.

25

L105975

AIR HOSE,9.53 mm ID x 575.00 mm, SAE 1402 A

Bulkhead, Clutch Cut-Out, Used on Models with Allison Transmission 9.53 mm ID x 575.00 mm, SAE 1402 A

1шт.

26

L112717

TUBE,9.53 mm OD

- clutch cut-out, used on models with allison transmission

1шт.
