Запчасти Case W30 (7-18) - BRAKE SYSTEM, AIR RESERVOIR TO TREADLES AND BRAKE ACTUATORS (07) - BRAKES

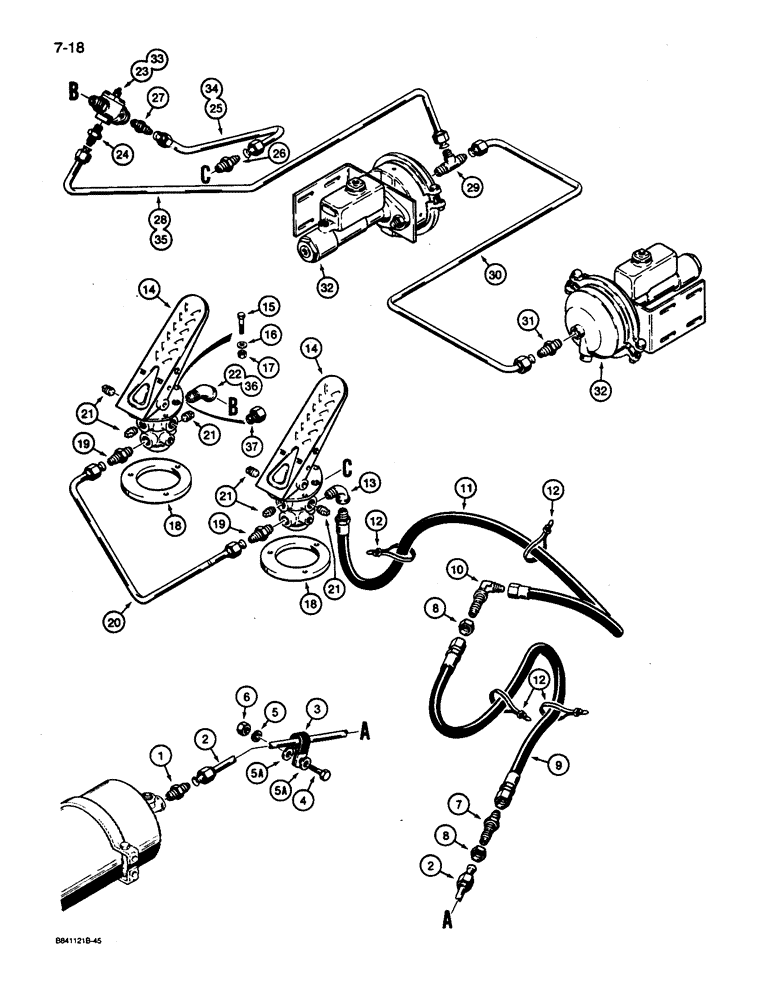

Схема запчастей Case W30 - (7-18) - BRAKE SYSTEM, AIR RESERVOIR TO TREADLES AND BRAKE ACTUATORS (07) - BRAKES

Артикул

Название

Примечание

Количество

1

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

2

L114934

TUBE,12.7 mm OD

- air supply, treadles

1шт.

3

49838

CLAMP

- tube

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

5

92-6

LOCK WASHER,3/8"

1шт.

5a

D41740

WASHER

- flat, 3/8", hardened

2шт.

6

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

7

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - bulkhead

1шт.

8

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , jam Blkhd, 3/4"-16

2шт.

9

L108069

AIR HOSE,12.70 mm ID x 575.00 mm, SAE 1402 A

Air Supply, Treadles 12.70 mm ID x 575.00 mm, SAE 1402 A

1шт.

10

218-694

ELBOW,90 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

11

L108068

HOSE,12.7 mm ID x 915.00 mm, SAE J1402-A

- treadle, 36" (915 mm) long

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

STREET ELBOW - 90 degree, 1/2" NPT

1шт.

14

L112713

VALVE

TREADLE AND VALVE - brake control, parts list Figure 7-32

2шт.

15

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

6шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16"

6шт.

17

131-5

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 5/16" - 18 NC

6шт.

18

L113911

SPACER

- treadle

2шт.

19

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

2шт.

20

L106095

TUBE,12.7 mm OD

- treadle to treadle

1шт.

21

221-1014

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - square head, 1/2" NPT

6шт.

22

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

STREET ELBOW - 45 degree, 1/2" NPT, if used, used with item 23, L114274 valve

1шт.

23

L114274

SWITCH

VALVE - double check and stop lamp switch, parts list Figure 7-48, no longer available, order items 33-37

1шт.

24

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

25

L115026

TUBE ASSY.,12.7 mm OD

TUBE - treadles, if used, used with item 23, L114274 valve

1шт.

26

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight

1шт.

27

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

28

L115024

TUBE,12.7 mm OD

- treadle to master cylinder, if used, used with item 23, L114274 valve

1шт.

29

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Special 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

30

L106093

TUBE,12.7 mm OD

- crossover, used on models with Allison transmission

1шт.

30

L118331

TUBE,12.7 mm OD x 582, 221 mm L

- crossover, used on models with ZF transmission

1шт.

31

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight

1шт.

32

REF

INSTRUCTION

BRAKE ACTUATOR - parts list Figure 7-34

2шт.

33

L116542

VALVE, CHECK

VALVE - double check and stop lamp switch, parts list Figure 7-48

1шт.

34

L116544

TUBE,12.7 mm OD

- treadles, used with item 33, L116542 valve

1шт.

35

L116546

TUBE,12.7 mm OD

- treadle to master cylinder, used with item 33, L 116542 valve

1шт.

36

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

STREET ELBOW - 45 degree, 3/8" NPT, used with item 33, L 116542 valve

1шт.

37

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

- 1/2" x 3/8" NPT, used with item 33, L116542 valve

1шт.

Выбрано товаров: 39
