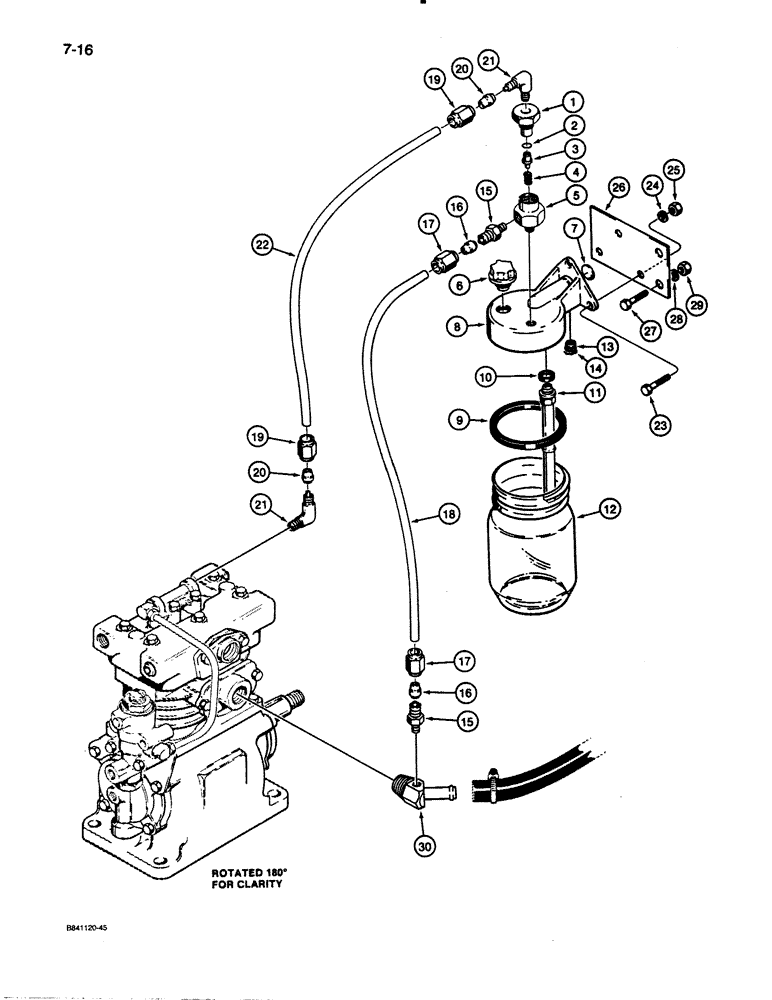

Запчасти Case W30 (7-16) - ALCOHOL EVAPORATOR (07) - BRAKES

L36273

EVAPORATOR

KIT - alcohol evaporator

1шт.

L33157

VALVE

ASSEMBLY - check, at evaporator

1шт.

1

L33162

NUT

- cap

1шт.

2

L33161

O-RING,0.299" ID x 0.072" Width

GROMMET - valve

1шт.

3

L33160

VALVE

- check

1шт.

4

L33159

SPRING

- valve

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

L33145

EVAPORATOR

ASSEMBLY - alcohol

1шт.

6

L33151

PLUG

- filler

1шт.

7

41-102

PLUG,Exp, 1/2"

- expansion, steel, 1/2"diameter

1шт.

8

L33146

BODY

- alcohol evaporator

1шт.

9

L33153

SEALING RING

-, Serial Range: housing-jar

1шт.

10

L33156

RING

- sealing, evaporator tube

1шт.

11

L33152

TUBE,0.25" ID x 0.33" OD x 4.87" L

- evaporator

1шт.

12

L33154

RESERVOIR

JAR - alcohol evaporator, plastic

1шт.

13

L33150

FILTER

- air intake

1шт.

14

A58439

RETAINER

RING - retaining, filter

1шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

ASSEMBLY - flex tube, straight

2шт.

15

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

16

222-2610

SLEEVE

- fitting

1шт.

17

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

18

L110859

TUBE,6.35 mm OD x 254 mm L

- 1/4" (6 mm) OD, cut to length

1шт.

222-2640

ELBOW,90 Degree, 7/16"-24 x 1/8" NPT, Comp

FITTING ASSEMBLY - flex tube, 90 degree

2шт.

19

222-2600

NUT

COMPRESSION NUT - fitting

1шт.

20

222-2610

SLEEVE

- fitting

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

22

L110859

TUBE,6.35 mm OD x 254 mm L

- check valve to governor, 1/4" (6 mm) OD

1шт.

23

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

25

25-104

NUT,1/4"-20, G5

3шт.

26

L76421

BRACKET

- alcohol evaporator

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

2шт.

30

L113177

ELBOW

- 90 degree, special, used with water cooled compressor

1шт.
