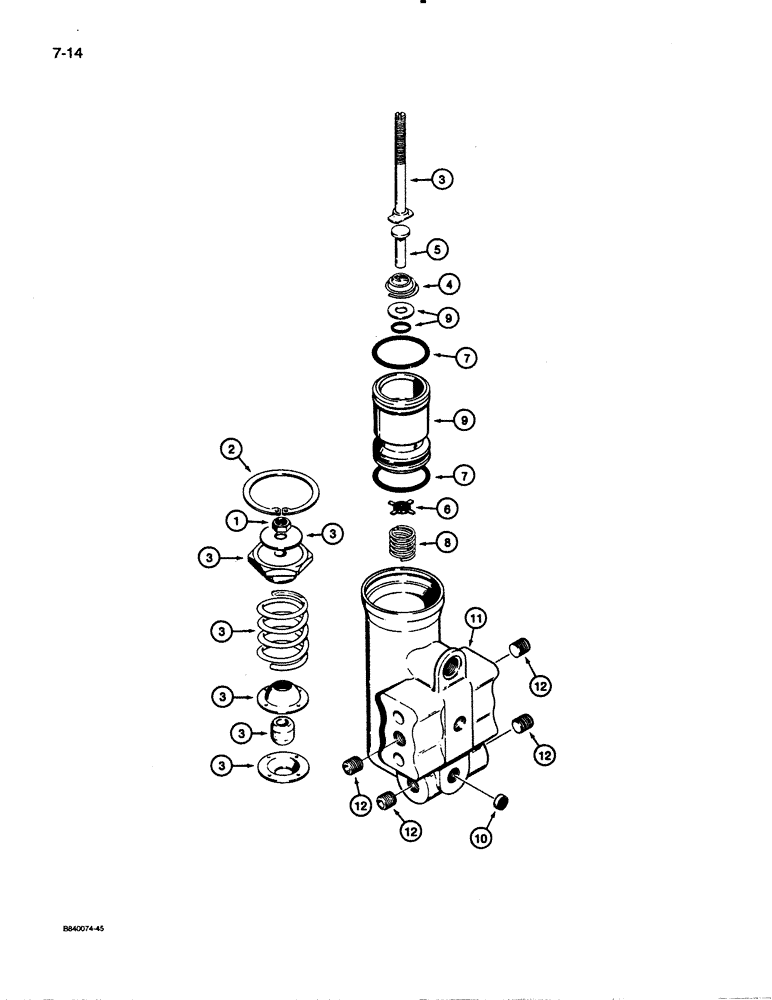

Запчасти Case W30 (7-14) - BRAKE SYSTEM, N8782 AIR COMPRESSOR GOVERNOR (07) - BRAKES

N8782

REGULATOR

GOVERNOR ASSEMBLY - air compressor

1шт.

1

NSS

NOT SOLD SEPARAT

NUT - special

1шт.

2

NSS

NOT SOLD SEPARAT

RETAINING RING - cap

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING ASSEMBLY - with cap

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING - governor

1шт.

5

NSS

NOT SOLD SEPARAT

STEM - valve exhaust

1шт.

6

NSS

NOT SOLD SEPARAT

DISC ASSEMBLY - valve

1шт.

Part of Governor Kit, P/N N8783

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - piston

2шт.

Part of Governor Kit, P/N N8783

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - piston, internal

1шт.

9

NSS

NOT SOLD SEPARAT

PISTON ASSEMBLY - governor

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - reservoir port

1шт.

Part of Governor Kit, P/N N8783

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - governor

1шт.

12

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket head, 1/8" NPT

4шт.

N8783

KIT

- governor, Includes: Ref. 6, 7, and 10

1шт.
