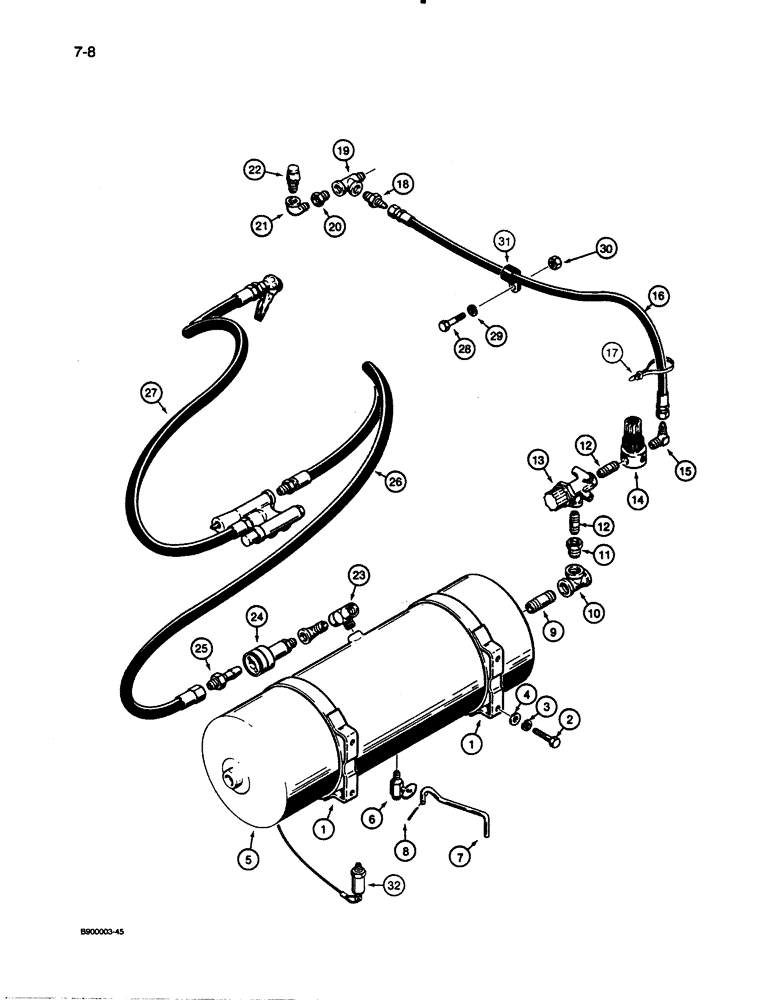

Запчасти Case W30 (7-08) - BRAKE SYSTEM, AIR RESERVOIR MOUNTING AND TIRE INFLATION KIT (07) - BRAKES

1

L110438

SUPPORT

BRACKET - reservoir mounting

2шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8" - 16 NC x 1-1/2"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D41740

WASHER

- flat, 3/8", hardened

4шт.

5

L14823

TANK

AIR RESERVOIR - brake system

1шт.

6

L112624

LOCK VALVE

DRAIN VALVE - air reservoir, if used

1шт.

7

L106310

HANDLE

- drain valve, if used

1шт.

8

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), , If used 1/8" x 3/4"

1шт.

9

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - 1/2" NPT x 2"

1шт.

10

221-1424

TEE,Pipe, 1/2" NPT

- 1/2" NPT

1шт.

11

221-1055

REDUCER,Hex, 1/2" x 1/4" NPT

- 1/2" NPT x 1/4" NPT

1шт.

12

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

NIPPLE - 1/4" NPT x 1"

2шт.

13

L13530

VALVE

- pressure protection, parts list Figure 7-50

1шт.

14

L112300

VALVE

- pressure reducing, parts list Figure 7-44

1шт.

15

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree

1шт.

16

L52184

HOSE

- 56" (1422 mm) long, to hydraulic tank

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

18

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight

1шт.

19

221-691

TEE

- 1/4" NPT

1шт.

20

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

- 1/4" NPT x 1/8" NPT

1шт.

21

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

STREET ELBOW - 1/8" NPT

1шт.

22

D38663

VENT

RELIEF VALVE - hydraulic tank

1шт.

23

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

- tire inflation kit, if used

1шт.

24

L13978

VALVE

COUPLER - female, tire inflation kit, if used

1шт.

25

L13979

COUPLING

COUPLER - male, tire inflation kit, if used

1шт.

26

L15274

HOSE

- 340" (8636 mm) long,tire inflation kit, if used

1шт.

27

L113543

SET OF PARTS

GAUGE - air pressure, tire inflation kit, if used

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

31

49838

CLAMP

- hose

1шт.

32

L126866

BLEEDER VALVE

VALVE - drain, if used

1шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

29

492-11038

LOCK WASHER,3/8"

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

31

49838

CLAMP

- hose

1шт.

32

L126866

BLEEDER VALVE

VALVE - drain, if used

1шт.
