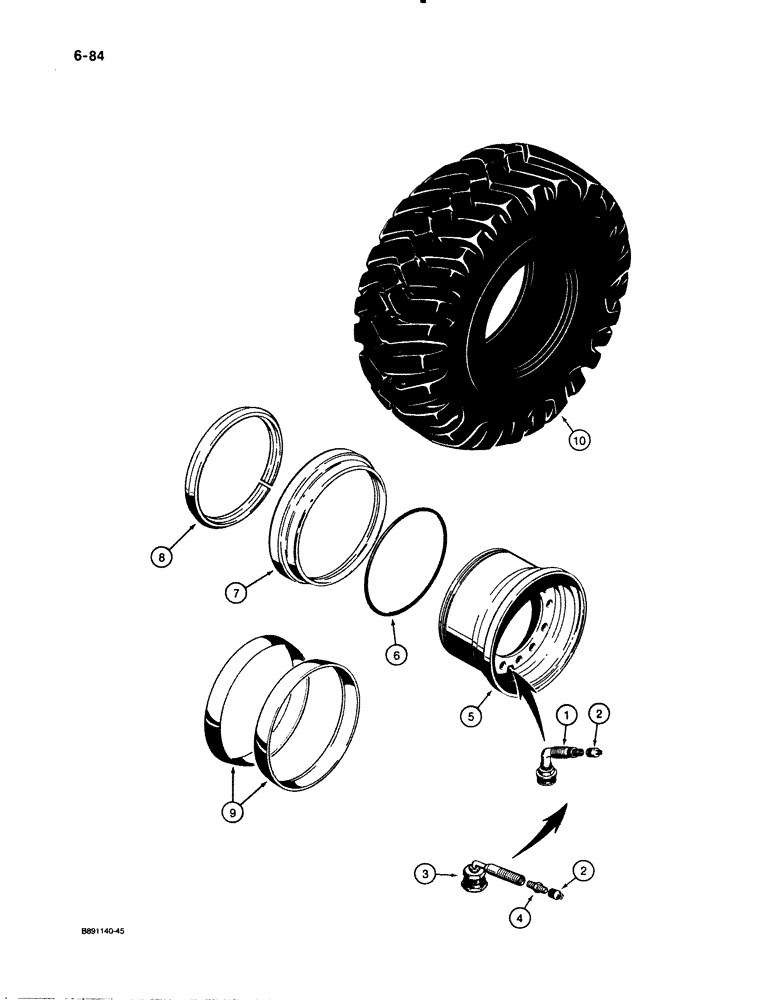

Запчасти Case W30 (6-84) - WHEELS (06) - POWER TRAIN

1

L48133

VALVE STEM

- Tubeless tire, for 5/8 inch hole in wheel, if used

4шт.

2

L19664

VALVE STEM

CAP - valve

4шт.

3

L11405

VALVE

- tubeless tire, for 13/16 inch hole in wheel, if used

4шт.

4

L11406

ADAPTER

REDUCER - valve to cap, used with L11405 valve, if used

4шт.

L116669

WHEEL

ASSEMBLY - tractor, for 17.5 x 25 tires

4шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel, replaces L115134, for 17.5 x 25 tires

4шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 17.5 x 25 tires

4шт.

7

A19099

RING

- bead set, for 17.5 x 25 tires

4шт.

8

A19100

LOCKING RING

RING - lock, for 17.5 x 25 tires

4шт.

L116670

WHEEL (STEERING)

WHEEL ASSEMBLY - tractor, for 20.5 x 25 tires

4шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel, replaces L115135, for 20.5 x 25 tires

4шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal, for 20.5 x 25 tires

4шт.

7

L12685

RING

- bead set, for 20.5 x 25 tires

4шт.

8

A19100

LOCKING RING

RING - lock, for 20.5 x 25 tires

4шт.

L116671

WHEEL

ASSEMBLY - tractor, for 23.5 x 25 tires

4шт.

5

NSS

NOT SOLD SEPARAT

RIM - wheel, replaces L115136, for 23.5 x 25 tires

4шт.

6

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

- seal, for 23.5 x 25 tires

4шт.

7

A16423

RING

RING - bead set, for 23.5 x 25 tires

4шт.

8

A16424

RING, LOCKING

RING - lock, for 23.5 x 25 tires

4шт.

9

L12690

RING, SNAP

RING - side rim, for 23.5 x 25 tires

8шт.

10

REF

INSTRUCTION

TIRE - purchase locally, for 23.5 x 25

4шт.
