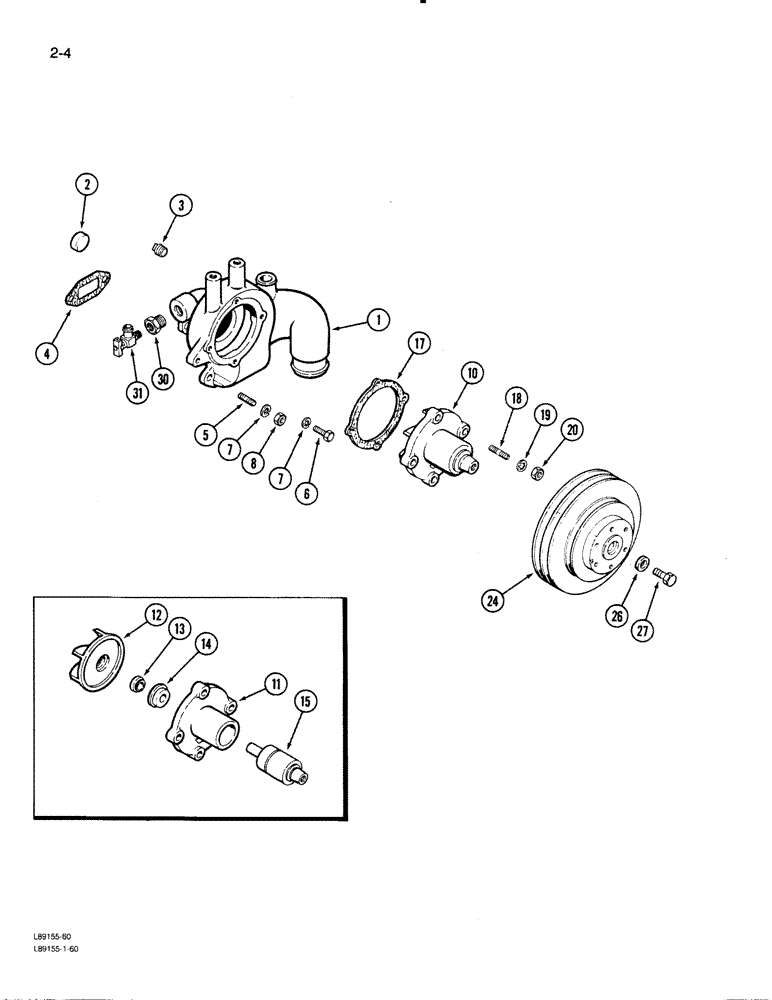

Запчасти Case W30 (2-04) - WATER PUMP, 504BDT ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A148968
HOUSING
BODY ASSEMBLY - water pump
1шт.
2
A58568
PLUG,Cup, 1 3/8", Stainless
PLUG - cup type, 1-3/8 inch
1шт.
3
221-4
DRAIN PLUG,Sq Hd, 1/2"-14 NPTF
PLUG - square head, 1/2 inch PT
1шт.
4
A58649
GASKET
GASKET -, Serial Range: body-block
1шт.
5
G102128
BOLT
STUD - pump body mounting, 3/8 NC x 1-17/32 inch
2шт.
6
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd
2шт.
7
92-6
LOCK WASHER,3/8"
LOCK WASHER, 3/8"
4шт.
8
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8 inch NC
2шт.
A48369
PUMP
KIT - water pump, remanufactured (North America only) (Includes Ref 17)
1шт.
10
A157145
PUMP, WATER
PUMP ASSEMBLY - water, new
1шт.
10
1342818C1R
REMAN-WATER PUMP
Remanufactured Water Pump
1шт.
10
A48335
CORE-WATER PUMP
Return Part Number - use this part number to return water pump core for credit
1шт.
11
NSS
NOT SOLD SEPARAT
HOUSING - pump body
1шт.
12
A152126
IMPELLER
IMPELLER - water
1шт.
13
A166280
SEAT
SEAT - impeller (Replaces A34000)(Also order A166281)
1шт.
Ref #13 - Note about the installing this seat, "The rubber cup face of the seat faces the impeller. The ceramic ring face of the seat faces the seal and bearing housing. "
1шт.
14
A166281
SEAL
SEAL - pump shaft (Replaces A142499)(Also order A166280)
1шт.
15
A156995
BEARING
BEARING ASSEMBLY - pump shaft
1шт.
17
A58646
GASKET
GASKET -, Serial Range: pump-body
1шт.
18
A166044
STUD
STUD - pump to body, 3/8 NC x 1-7/16 inch
4шт.
19
193-30
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
4шт.
20
25-106
NUT,3/8"-16, G5
NUT - hex, 3/8 inch NC
4шт.
24
A139410
PULLEY
PULLEY - water pump
1шт.
26
A155047
RING,13.08mm ID x 26.92mm OD x 8.69mm Thk
WASHER - pulley
1шт.
27
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
BOLT - hex, 1/2 NF x 1-1/4 inch
1шт.
30
221-1092
REDUCER,Hex, 3/4" x 3/8" NPT
REDUCER, Hex, 3/4" x 3/8" NPT
1шт.
31
A16764
VALVE
VALVE ASSEMBLY - shutoff
1шт.
Выбрано товаров: 27
