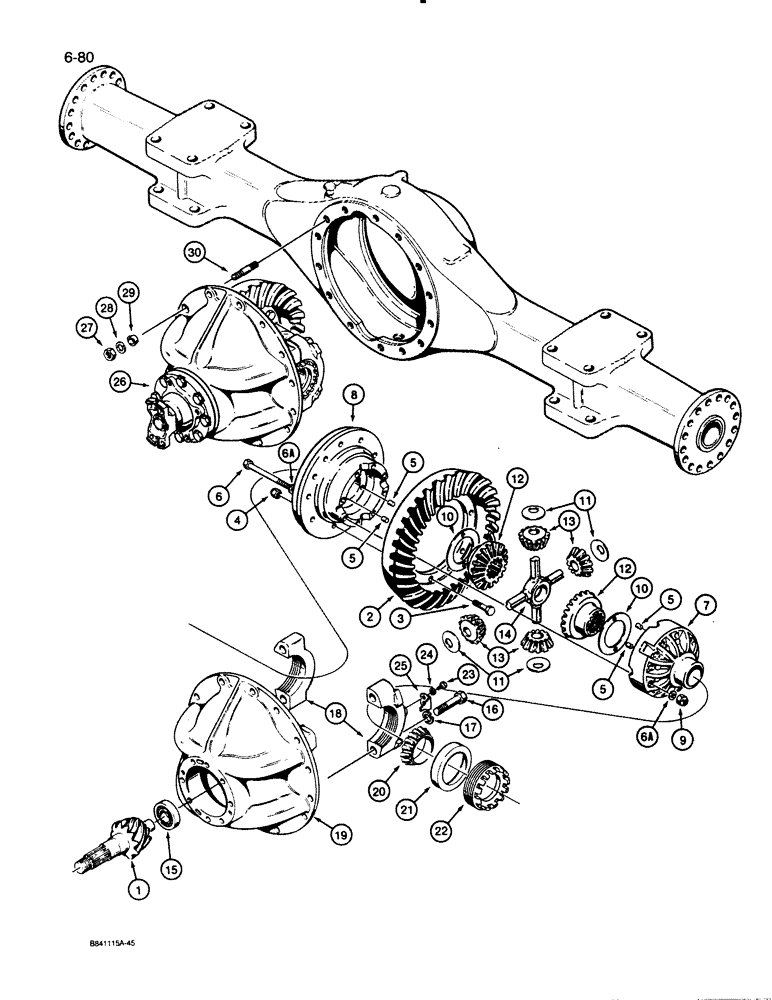

Запчасти Case W30 (6-80) - FRONT AXLE DIFFERENTIAL (06) - POWER TRAIN

L114652

AXLE

ASSEMBLY - front, Clark No. 189358, continued

1шт.

L118166

AXLE

ASSEMBLY - front, Clark No. 189541, continued

1шт.

N9224

DIFFERENTIAL

AND CARRIER ASSEMBLY - used on models with L114652 axle, also includes parts on Figure 6-78

1шт.

N14735

DIFFERENTIAL

AND CARRIER ASSEMBLY - used on models with L118166 axle, also includes parts on Figure 6-78

1шт.

N9226

CONE PINION

GEAR SET - pinion and ring gear, matched set

1шт.

1

NSS

NOT SOLD SEPARAT

PINION SHAFT - differential

1шт.

2

NSS

NOT SOLD SEPARAT

RING GEAR - differential

1шт.

3

L33044

BOLT

- special, ring, Serial Range: gear-case

12шт.

4

131-579

LOCK NUT,9/16"-18

NUT - hex, self-locking, 9/16" - 18 NF

12шт.

L33046

HOUSING

BODY ASSEMBLY - differential, used with N9224 differential

1шт.

N14739

BODY

ASSEMBLY - differential, used with N14735 differential

1шт.

L33047

SET

KIT - diffferential halves

1шт.

NSS

NOT SOLD SEPARAT

CASE ASSEMBLY - differential

1шт.

5

L33049

PIN

DOWEL PIN - case

4шт.

6

D65170

BOLT

- special, case mounting

8шт.

6a

A43248

WASHER

- special

16шт.

7

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

8

NSS

NOT SOLD SEPARAT

CASE - flanged half

1шт.

9

D65171

NUT

- hex, special

8шт.

10

L33055

WASHER

THRUST WASHER - side gear

2шт.

11

L33054

WASHER

- thrust, pinion

4шт.

N7063

SET OF PINIONS

GEAR KIT - used with L33046 differential body assembly

1шт.

N14736

GEAR

KIT - used with N14739 differential body assembly

1шт.

12

NSS

NOT SOLD SEPARAT

SIDE GEAR - differential

2шт.

13

N6290

SET OF PINIONS

PINION - differential gear set, quantity of 4

1шт.

14

L33053

U-JOINT SPIDER

SPIDER - differential

1шт.

15

L33062

ROLLER BEARING

BEARING - drive pinion, inner

1шт.

L33058

CARRIER

AND CAP ASSEMBLY - differential

1шт.

16

L33909

BOLT

- special

4шт.

17

194-114

WASHER

- lock, 7/8"

4шт.

18

NSS

NOT SOLD SEPARAT

CAP - carrier

2шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

40398

ROLLER BEARING,3" ID x 1.2205"

CONE - bearing, differential

2шт.

21

40399

WIRE

CUP - bearing, differential

2шт.

22

L33910

NUT

- adjusting, special

2шт.

23

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

D80396

LOCK

- adjusting nut

2шт.

26

REF

INSTRUCTION

PINION BEARING AND COMPANION FLANGE - differential, parts list Figure 6-78

1шт.

27

129-545

NUT,1/2"-20, G8

14шт.

28

L33002

WASHER

- special

14шт.

29

L33016

DOWEL

- carrier

3шт.

30

D80394

STUD

- axle housing

14шт.
