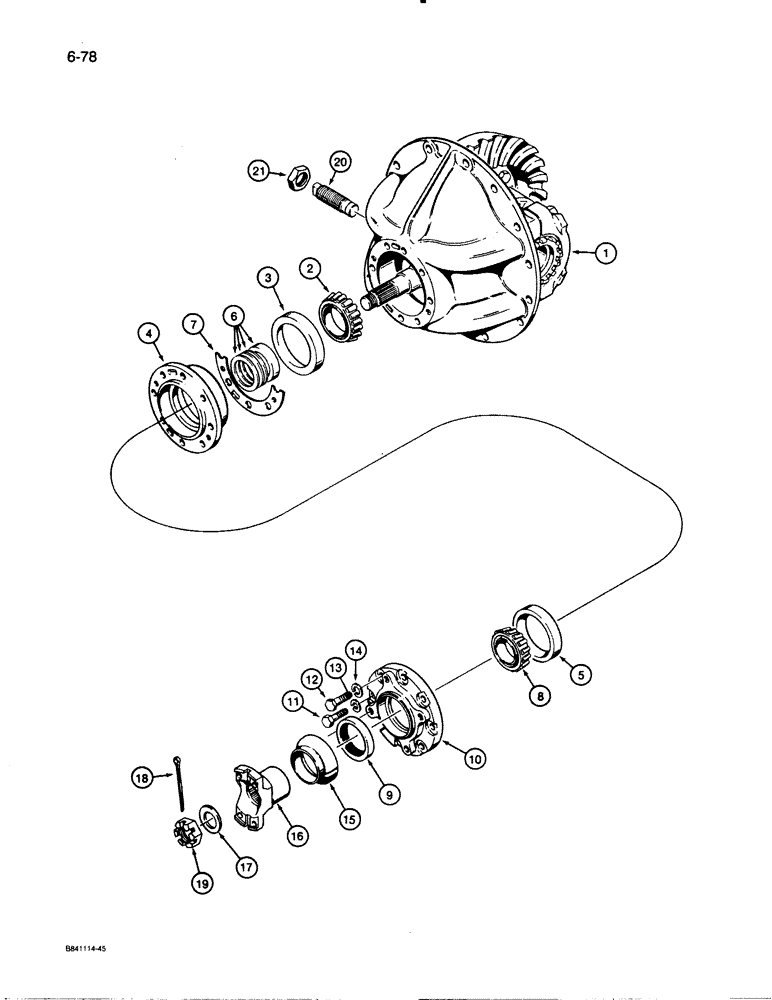

Запчасти Case W30 (6-78) - AXLE DIFFERENTIAL, FRONT AND REAR PINION BEARINGS AND COMPANION FLANGE (06) - POWER TRAIN

L114652

AXLE

ASSEMBLY - front, Clark No. 189358, continued

1шт.

L118166

AXLE

ASSEMBLY - front, Clark No. 189541, continued

1шт.

L114653

CENTER AXLE

AXLE ASSEMBLY - rear, Clark No. 189359, continued

1шт.

1

N9224

DIFFERENTIAL

ASSEMBLY - used on models with L114652 front axle, also includes parts on Figure 6-80

1шт.

1

N14735

DIFFERENTIAL

ASSEMBLY - usd on models with L118166 front axle, also includes parts on Figure 6-80

1шт.

1

N9235

DIFFERENTIAL

ASSEMBLY - used on models with L114653 rear axle, also includes parts on Figure 6-82

1шт.

2

A25167

ROLLER BEARING,2" ID x 1.25"

CONE - bearing

1шт.

L33063

CAGE

BEARING ASSEMBLY - pinion

1шт.

3

A25168

BEARING CUP

CUP - bearing

1шт.

4

NSS

NOT SOLD SEPARAT

CAGE - bearing

1шт.

5

A12949

BEARING CUP

CUP - bearing

1шт.

6

L33064

BUSHING

SPACER AND SHIM KIT - bearing

1шт.

7

L33065

SHIM

- .004" (.0120 mm) thick

1шт.

7

L35911

SHIM

- .007" (.1788 mm) thick

1шт.

7

L35912

SHIM

- .010" (.254 mm) thick

1шт.

8

A9841

ROLLER BEARING,1.875" ID x 1.0594"

CONE - bearing

1шт.

9

L35250

OIL SEAL

- oil, pinion, used with N9224 and N9235 differentials

1шт.

9

A27838

OIL SEAL,66.67mm ID x 92.2mm OD x 11.89mm Thk

- oil, pinion, used with N14735 differential

1шт.

10

L35251

RETAINER

- pinion oil seal, used with N9224 and N9235 differentials

1шт.

10

N14738

RETAINER

- pinion oil seal, used with N14735 differential

1шт.

11

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

12

113-530

BOLT,Hex, 9/16" - 12 x 2", Gr 8

- hex head, 9/16" - 12 NC x 2", plated, grade 8

3-7шт.

12

166-1003

12 PT SCREW,Flg, 9/16" - 18 x 2", Gr 8

BOLT - Ferry head, 9/16" - 12 NC x 2", plated, grade 8, if used, not shown

4шт.

13

92-8

LOCK WASHER,1/2"

1шт.

14

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

7шт.

15

L33088

GUARD

SHIELD - dust, pinion

1шт.

16

N9225

YOKE

FLANGE - companion, used with N9224 and N9235 differentials

1шт.

16

N14737

FLANGE

- companion, used with N14735 differential

1шт.

17

L33026

WASHER

- pinion shaft

1шт.

18

132-126

COTTER PIN,7/32" x 2"

Pin, Split (Cotter), 7/32" x 2"

1шт.

19

L33097

NUT

CASTLE NUT - pinion shaft

1шт.

20

L33061

SCREW,1 1/8" - 12 x 4 1/4"

- thrust, special

1шт.

21

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

JAM NUT - hex, 1-1/8" - 12 NF

1шт.

22

114-301

BOLT,Hex, 7/16" - 20 x 1", Gr 5, Full Thd

Used as plug with N14738 retainer, item 10, not shown Hex, 7/16"-20 x 1", G5, Full Thd

2шт.

23

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Used with 114-301 bolt, item 22, not shown 7/16"

2шт.
