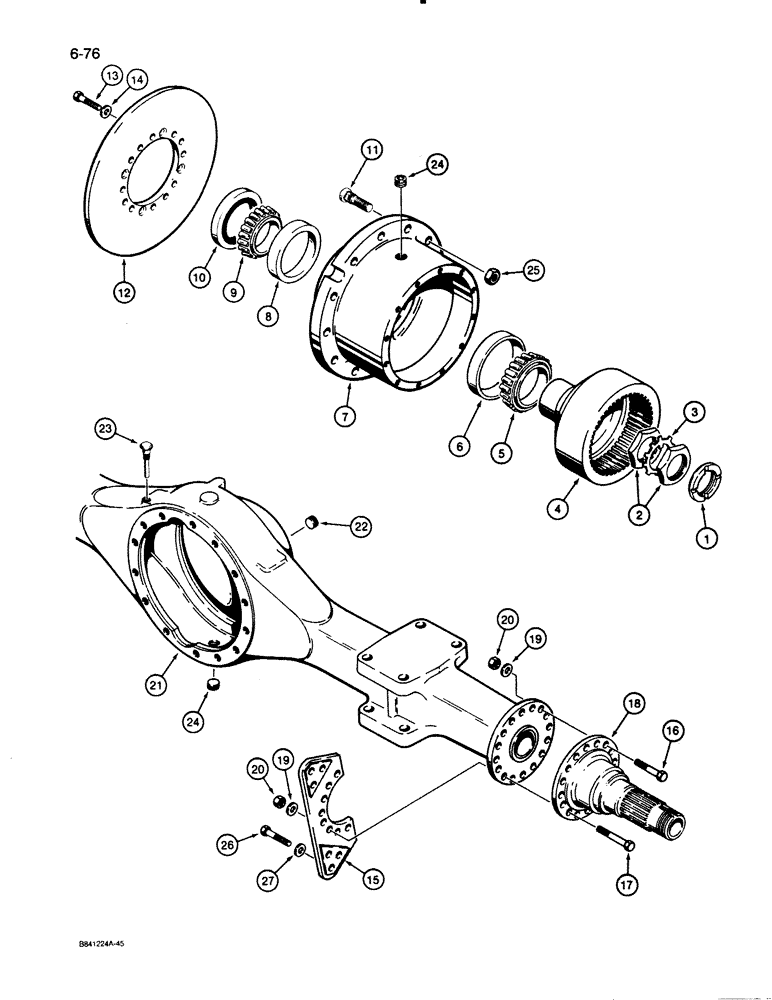

Запчасти Case W30 (6-76) - AXLE HOUSING AND HUB, FRONT AND REAR (06) - POWER TRAIN

L114652

AXLE

ASSEMBLY - front, Clark No. 189358, Allison transmission units only, continued

1шт.

L118166

AXLE

ASSEMBLY - front, Clark No. 189541, ZF transmission units only, continued

1шт.

L114653

CENTER AXLE

AXLE ASSEMBLY - rear, Clark No. 189359, Allison and ZF units, continued

1шт.

1

N6282

WASHER

THRUST WASHER - sun gear

2шт.

2

D80381

NUT

- special

4шт.

3

D80382

LOCK WASHER

WASHER - special

2шт.

4

D80383

GEAR

RING GEAR - hub, used on models with L114652 and L114653 axles, no longer available, order N14730 planetary and S300095 sun gear on Figure 6-74, and N14733 ring gear below

2шт.

4

N14733

GEAR

RING GEAR - hub, used on models with L118166 front axle

2шт.

5

A14960

BEARING

CONE - bearing, outer

2шт.

N9222

HUB ASSY.

HUB ASSEMBLY - axle

2шт.

6

A14961

BEARING CUP

CUP - bearing, outer

1шт.

7

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

8

D80395

CUP

- bearing, inner

1шт.

9

D80387

BEARING

CONE - bearing, inner

2шт.

10

N6283

OIL SEAL

- cone

2шт.

11

N7337

STUD

- wheel

24шт.

12

N9221

DISC

- brake

2шт.

13

N9233

BOLT

- special

32шт.

14

L33031

WASHER

- special

32шт.

15

N9231

PLATE

- brake adapter

2шт.

16

114-716

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

- hex head, 3/4" - 16 NF x 2-3/4", grade 5, plated

16шт.

17

114-718

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

16шт.

18

N9223

SPINDLE

- axle

2шт.

19

N9234

WASHER

- special

32шт.

20

129-196

NUT,3/4"-16, G5

- hex, 3/4" - 16 NF, plated

32шт.

21

N9230

CARRIER

HOUSING - front and rear axles

1-2шт.

22

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - housing fill

1шт.

23

N6286

BREATHER

- axle housing

1шт.

24

221-668

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG - axle housing drain, 3/4"

3шт.

25

A12522

WHEEL NUT

- special, wheel mounting

48шт.

26

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex head, 3/4" - 10 NC x 2-1/2"

24шт.

27

L79179

WASHER

- special

24шт.
