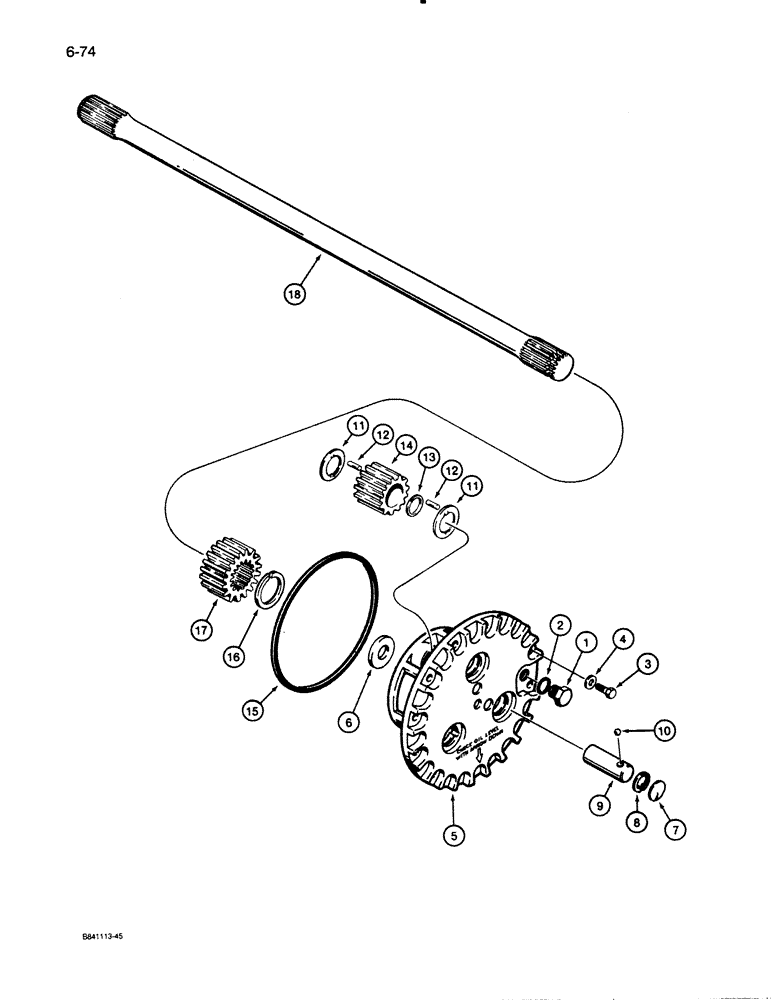

Запчасти Case W30 (6-74) - AXLE SHAFT AND PLANETARY, FRONT AND REAR (06) - POWER TRAIN

L114652

AXLE

ASSEMBLY - front, Clark No. 189358

1шт.

L118166

AXLE

ASSEMBLY - front, Clark No. 189541

1шт.

L114653

CENTER AXLE

AXLE ASSEMBLY - rear, Clark No. 189359

1шт.

1

86512512

PLUG,7/8" - 14 ORB

Spider Hex Hd, 7/8"-14 ORB

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- plug

1шт.

3

N9232

BOLT

- special

24шт.

4

L33002

WASHER

- special

24шт.

N9227

HUB

PLANETARY ASSEMBLY - used on models with L114652 and L114653 axles, no longer available, order N14730 planetary and S300095 sun gear below, and N14733 ring gear item 4 Figure 6-76

2шт.

N14730

HUB CARRIER

PLANETARY ASSEMBLY - used on models with L118166 axle

2шт.

N9228

CAGE

KIT - spider

1шт.

5

NSS

NOT SOLD SEPARAT

SPIDER - planetary

1шт.

6

D80405

WASHER, THRUST

THRUST WASHER - shaft

1шт.

7

N8831

PLUG

EXPANSION PLUG - spider

3шт.

8

D80403

CIRCLIP

RETAINING RING - pinion shaft

3шт.

9

N8830

AXLE PIN

PINION SHAFT - spider

3шт.

10

211-11

BALL,3/8" Dia

- shaft

3шт.

11

D80398

WASHER, THRUST

THRUST WASHER - pinion gear

6шт.

12

D80400

ROLLER

BEARING - pinion gear

174шт.

13

D80401

SPACER

- pinion

3шт.

14

D80399

GEAR

PINION GEAR - used with N9227 planetary

3шт.

14

N14731

PINION

GEAR - used with N14730 planetary

3шт.

15

D80377

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

- planetary

2шт.

16

D80378

RETAINER

RETAINING RING - shaft, used on models with L114652 and L114653 axles

2шт.

16

A27089

SNAP RING,2.36mm Thk, Ext

RETAINING RING - shaft, used on models with L118166 axle

2шт.

17

D80379

GEAR

SUN GEAR - planetary, stamped Clark number 2109442, used on models with L114652 and L114653 axles, except models which have had planetary and ring gear replaced after 1989

2шт.

17

S300095

GEAR

SUN GEAR - planetary, stamped Clark number 2109442, used on models with L114652 and L114653 axles which have had planetary and ring gear replaced after 1989

1шт.

17

N14732

GEAR

SUN GEAR - planetary, stamped Clark number 2107673, used on models with L118166 axle

2шт.

18

N9229

SHAFT

- used on models with L114652 and L114653 axles

2шт.

18

N14734

SHAFT

- used on models with L118166 axle

2шт.
