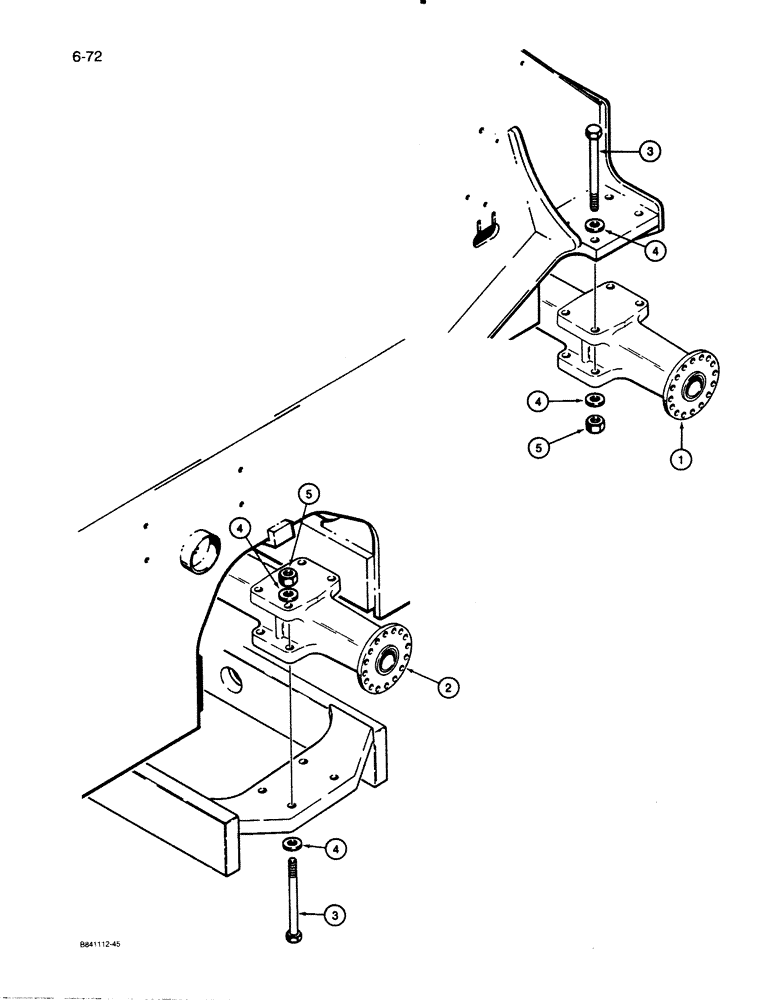

Запчасти Case W30 (6-72) - AXLE ASSEMBLIES (06) - POWER TRAIN

1

L114652

AXLE

ASSEMBLY - front, Clark No. 189358, parts list Figures 6-74 through 6-80, used with Allison transmission

1шт.

1

L118166

AXLE

ASSEMBLY - front, Clark No. 189541, parts list Figures 6-74 through 6-80, used with ZF transmission

1шт.

2

L114653

CENTER AXLE

AXLE ASSEMBLY - rear, Clark No. 189359, parts list Figures 6-74 through 6-78 and 6-82

1шт.

3

116-901

BOLT,Hex, 1" - 14 x 9-1/2", Gr 8

- hex head, 1" - 14 NF x 9-1/2"

16шт.

4

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

32шт.

5

131-188

LOCK NUT,1"-14, GB

NUT - hex, 1" - 14 NF

16шт.
