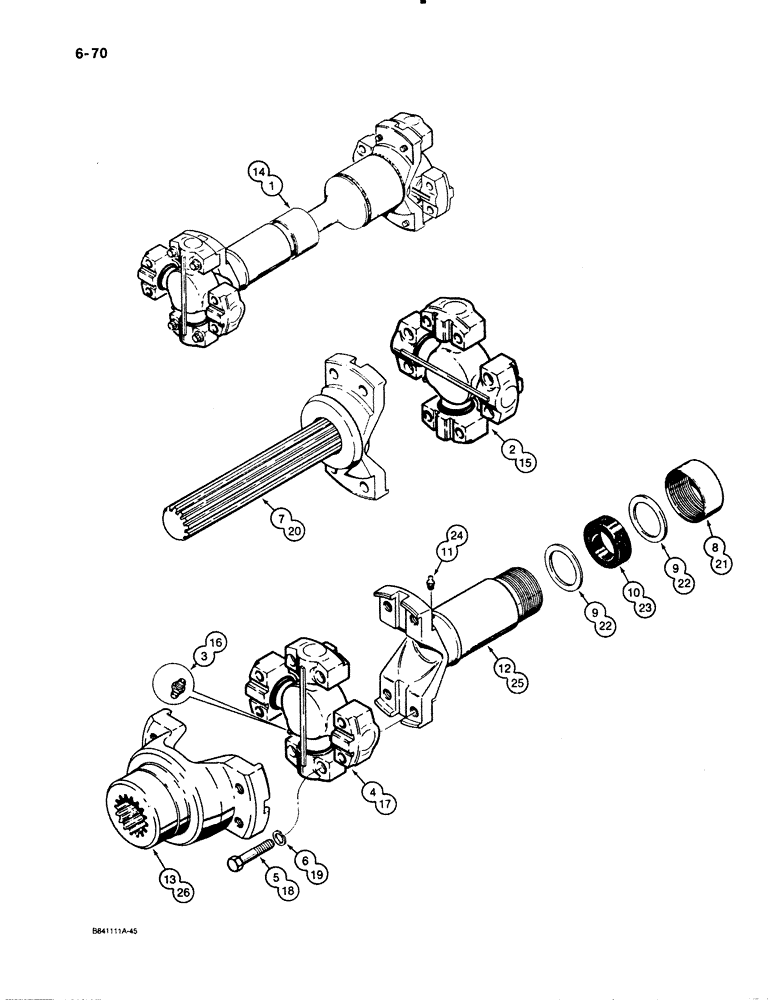

Запчасти Case W30 (6-70) - REAR AXLE DRIVE SHAFT (06) - POWER TRAIN

1

L114688

SHAFT

DRIVE SHAFT ASSEMBLY - rear axle, used on models with allison transmission

1шт.

2

N9216

CROSS

SPIDER AND BEARING ASSEMBLY - drive shaft kit, used on models with allison transmission

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on models with allison transmission

1шт.

4

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, used on models with allison transmission

1шт.

5

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex head, 1/2" - 20 NF x 2-1/4", used on models with allison transmission

8шт.

6

192-63

LOCK WASHER,1/2"

used on models with allison transmission 1/2"

8шт.

7

N9250

YOKE

- splined, at transmission end, used on models with allison transmission

1шт.

N9220

CAP

KIT - dust, drive shaft, used on models with allison transmission

1шт.

8

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke, used on models with allison transmission

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - metal, felt retaining, used on models with allison transmission

2шт.

10

NSS

NOT SOLD SEPARAT

WASHER - felt, dust, used on models with allison transmission

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on models with allison transmission

1шт.

12

N9219

JOINT

YOKE - slip, axle end, used on models with allison transmission

1шт.

13

REF

INSTRUCTION

FLANGE - companion, rear axle to rear drive shaft, see Figure 6-78, used on models with allison transmission

1шт.

14

L117056

SHAFT

DRIVE SHAFT ASSEMBLY - rear, used on models with ZF transmission

1шт.

15

N9216

CROSS

SPIDER AND BEARING ASSEMBLY - drive shaft kit, used on models with ZF transmission

2шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on models with ZF transmission

1шт.

17

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft, used on models with ZF transmission

1шт.

18

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex head, 1/2" - 20 NF x 2-1/4", used on models with ZF transmission

8шт.

19

192-63

LOCK WASHER,1/2"

used on models with ZF transmission 1/2"

8шт.

20

N14729

YOKE

- splined, at transmission end, used on models with ZF transmission

1шт.

N9220

CAP

KIT - dust, drive shaft, used on models with ZF transmission

1шт.

21

NSS

NOT SOLD SEPARAT

CAP - dust, drive shaft yoke, used on models with ZF transmission

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - metal, felt retaining, used on models with ZF transmission

2шт.

23

NSS

NOT SOLD SEPARAT

WASHER - felt, dust, used on models with ZF transmission

1шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, used on models with ZF transmission

1шт.

25

N14728

YOKE

- slip, axle end, used on models with ZF transmission

1шт.

26

REF

INSTRUCTION

FLANGE - companion, rear axle to rear drive shaft, see Figure 6-78, used on models with ZF transmission

1шт.
