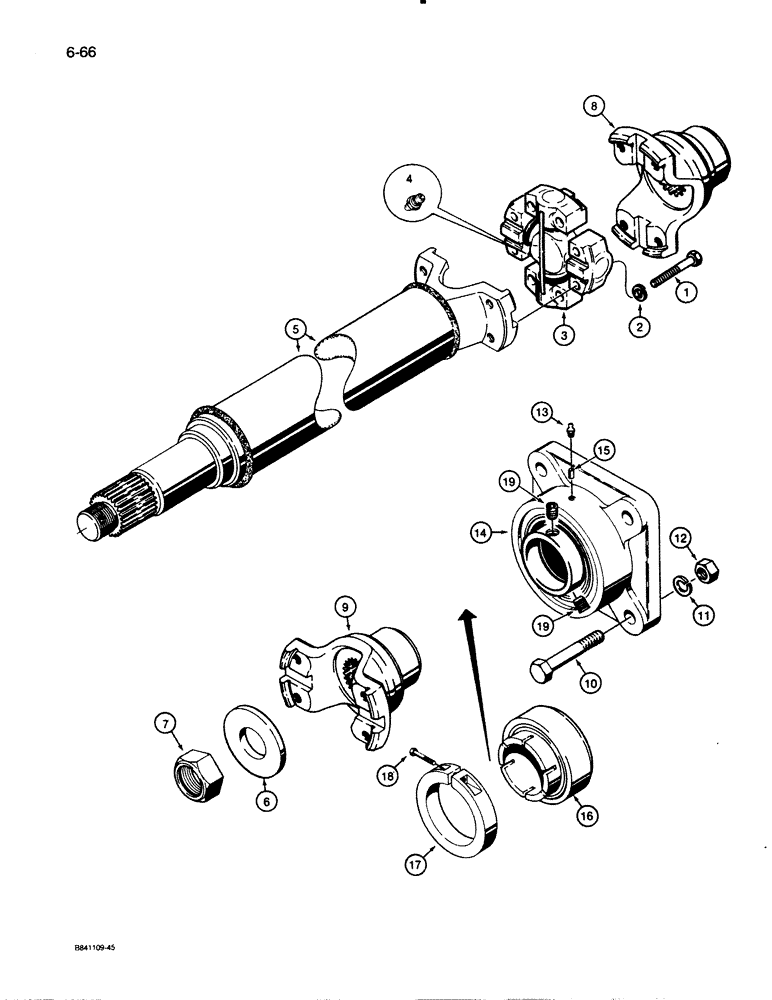

Запчасти Case W30 (6-66) - FRONT AXLE DRIVE SHAFT, AXLE END (06) - POWER TRAIN

L114683

SHAFT

DRIVE SHAFT ASSEMBLY - front axle, used on models with Allison transmission

1шт.

L118070

SHAFT

DRIVE SHAFT ASSEMBLY - front axle, used on models with ZF transmission

1шт.

N9216

CROSS

SPIDER AND BEARING ASSEMBLY - drive shaft kit

1шт.

1

114-425

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 8

- hex head, 1/2" - 20 NF x 2-1/4"

8шт.

2

192-63

LOCK WASHER,1/2"

1/2"

8шт.

3

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

5

NSS

NOT SOLD SEPARAT

YOKE AND TUBE ASSEMBLY - drive shaft, axle end

1шт.

6

D28266

WASHER

- flat, special

1шт.

7

N9217

FLANGE NUT

NUT - special

1шт.

8

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see Figure 6-78

1шт.

9

L114689

YOKE

- drive shaft to center bearing

1шт.

10

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex head, 9/16" - 12 NC x 1-3/4", drive shaft support bearing

4шт.

11

92-9

BEARING WASHER,9/16"

Drive shaft support bearing 9/16"

4шт.

12

25-109

NUT,9/16"-12, G5

- hex, 9/16" - 12 NC, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING SUPPORT ASSEMBLY - front drive shaft, uses set screws

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT, drive shaft support bearing

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - bearing, may have holes for set screws instead of slots, drive shaft support

1шт.

15

L33788

AXLE PIN

PIN - lock, 1/4" diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, converts from set screws to collar arrangement, drive shaft support

1шт.

16

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing, drive shaft support

1шт.

17

L33789

COLLAR

- bearing, if used, drive shaft support

1шт.

18

61-416

HEX SOC SCREW,1/4"-20 x 1"

SCREW - hex socket head, 1/4" - 20 NC x 1", if used, drive shaft support bearing

1шт.

19

84-65

SET SCREW,Hex Soc, 3/8"-24 x 5/16"

- 3/8" - 24 NF x 5/16", if used, drive shaft support bearing

2шт.
