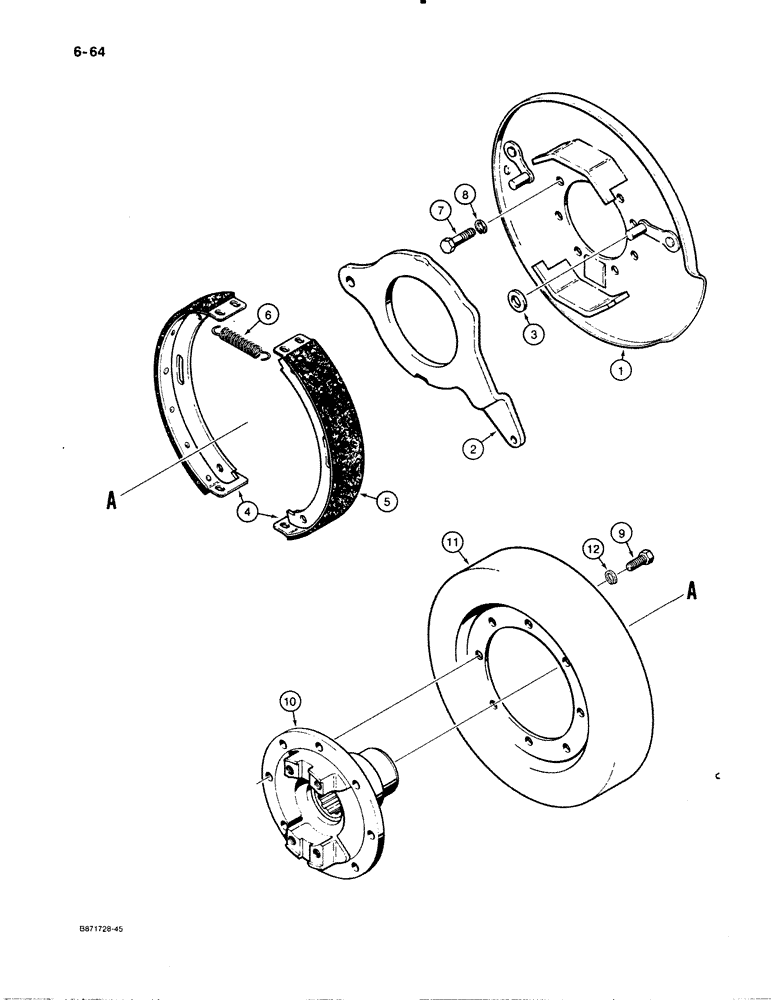

Запчасти Case W30 (6-64) - PARKING BRAKE, USED ON MODELS WITH ZF TRANSMISSION (06) - POWER TRAIN

N8235

BRAKE LINE

ASSEMBLY - interchangeable with A25270 brake

1шт.

assembly

1шт.

1

N8236

PLATE

Backing, interchangeable with A25269 backing plate

1шт.

2

A12779

LEVER

Brake shoe

1шт.

3

A16642

WASHER

ROLLER - brake

1шт.

A12780

BRAKE SHOE

SHOE, BRAKE ASSEMBLY - parking brake

2шт.

4

NSS

NOT SOLD SEPARAT

SHOE - brake

1шт.

5

NSS

NOT SOLD SEPARAT

LINING - brake

1шт.

6

A12778

SPRING

Brake shoe

2шт.

7

114-332

BOLT,Locking, 7/16" - 20 x 1", Gr 8, Full Thd

Hex

8шт.

8

D47367

WASHER

Lock

8шт.

9

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

8шт.

10

N14737

FLANGE

YOKE

1шт.

11

A25271

BRAKE DRUM

DRUM, BRAKE Parking

1шт.

12

192-1

WASHER - flat, 3/8", hardened, plated

8шт.

A12843

PACKAGE

KIT - lining, for 1 shoe

2шт.
