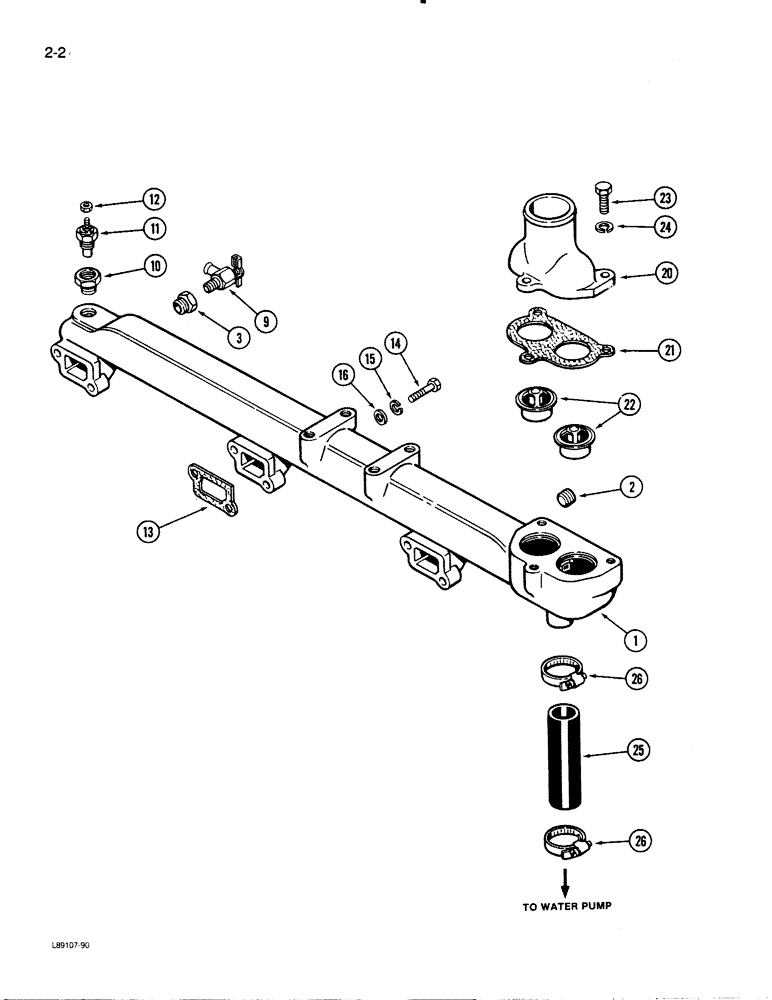

Запчасти Case W30 (2-02) - WATER MANIFOLD AND THERMOSTAT, 504BDT ENGINE (02) - ENGINE

1

A152742

MANIFOLD

- water

1шт.

2

221-1844

PLUG,Hex Soc, 1/2"-14

- socket head, 1/2 inch PT

2шт.

3

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

221-1843

PLUG

- socket head, 3/8 inch PT (Used for shipping only)

1шт.

9

A16764

VALVE

- water shutoff

1шт.

10

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer, 1/2 to 3/8 inch PT

1шт.

11

L104249

SWITCH

UNIT - sending, engine temperature

1шт.

12

193-1000

NUT,Keps, w/LW,#10-32

- unit terminal, No. 10 NF hex

1шт.

13

A166147

GASKET

- water manifold

3шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

15

195-25

WASHER,3/8"

- flat, 3/8 x 13/16 x 1/16 inch

6шт.

16

92-6

LOCK WASHER,3/8"

6шт.

20

A58638

HOUSING

- thermostat

1шт.

21

A166148

GASKET

- thermostat housing

1шт.

22

A57641

THERMOSTAT

- 180 degree F

2шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

3шт.

25

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

- water by-pass, 1-1/4 x 1-5/8 x 5-5/16 inch

1шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose retaining, 1-3/16 to 1-3/4 inch

2шт.
