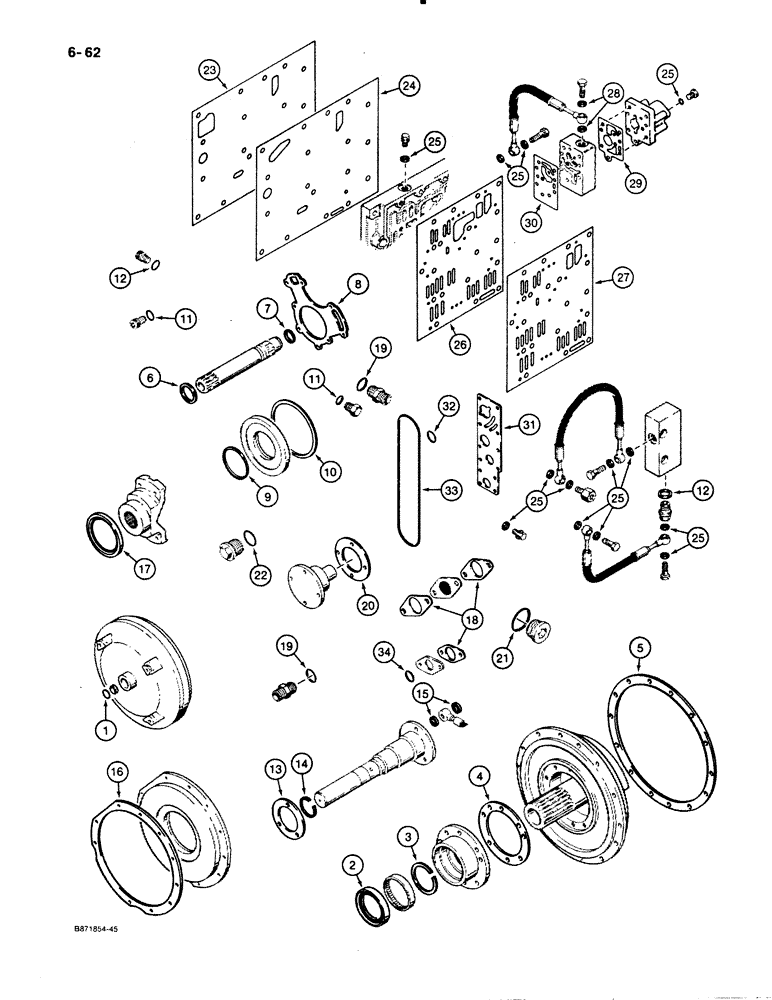

Запчасти Case W30 (6-62) - ZF TRANSMISSION, SEAL KIT (06) - POWER TRAIN

N14743

SEAL KIT

KIT - transmission seal and gasket

1шт.

1

E135035

O-RING,25 mm ID

SEAL - o-ring

1шт.

2

E135150

OIL SEAL

- shaft

1шт.

3

E135143

RING,Locking, 65.4mm ID x 70mm OD x 3.5mm Thk

- piston, 70 mm OD x 2.3 mm thick x 3.5 mm

1шт.

4

E135244

GASKET

- hub

1шт.

5

E135253

GASKET

- oil feed flange

1шт.

6

E135144

RING, SNAP

RING - piston, 41.8 mm ID x 45 mm OD x 3 mm

1шт.

7

E135036

O-RING,Square, 2mm Thk x 30mm ID

SEAL - o-ring

1шт.

8

E135248

GASKET

- pump

1шт.

9

E135141

SEALING RING

RING - seal, piston ID

6шт.

10

E135140

SEALING RING

RING - seal, first, low, reverse, and second clutches

4шт.

10

E135142

SEALING RING

RING - seal, third and fourth clutches

4шт.

11

E135037

O-RING

SEAL - ring

3шт.

12

E135039

O-RING,18 mm ID x 22 mm OD

SEAL - ring

3шт.

13

E135223

GASKET

- axle

3шт.

14

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

9шт.

15

E135038

SEAL

- ring

20шт.

16

E135279

GASKET

- cover

1шт.

17

E135151

OIL SEAL

- shaft

2шт.

18

E135228

GASKET

- dipstick tube

3шт.

19

E135041

O-RING

SEAL - ring

2шт.

20

E135219

SEALING RING

GASKET - stub axle

1шт.

21

E135033

O-RING,2.2mm Thk x 33mm ID

SEAL - o-ring

1шт.

22

A48884

O-RING,30 mm ID x 36 mm OD

SEAL - ring

1шт.

23

E135257

GASKET

- plate, at transmission housing

1шт.

24

E135258

GASKET

- valve plate to channel plate

1шт.

25

A52231

SEALING RING

RING - seal, plug

19шт.

26

E135216

SEAL

- at channel, Serial Range: plate-valve

1шт.

27

E135206

GASKET

- at control valve to channel plate

1шт.

28

E135042

SEALING RING

SEAL - ring

2шт.

29

E135198

GASKET

- cover

1шт.

30

E135196

GASKET

- valve body

1шт.

31

E135194

GASKET

- cover

1шт.

32

E135032

O-RING,14 mm ID x 3 mm

SEAL - o-ring

3шт.

33

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - o-ring

1шт.

34

E135040

SEALING WASHER,M22 x 27 x 1.5

SEAL - ring

1шт.
