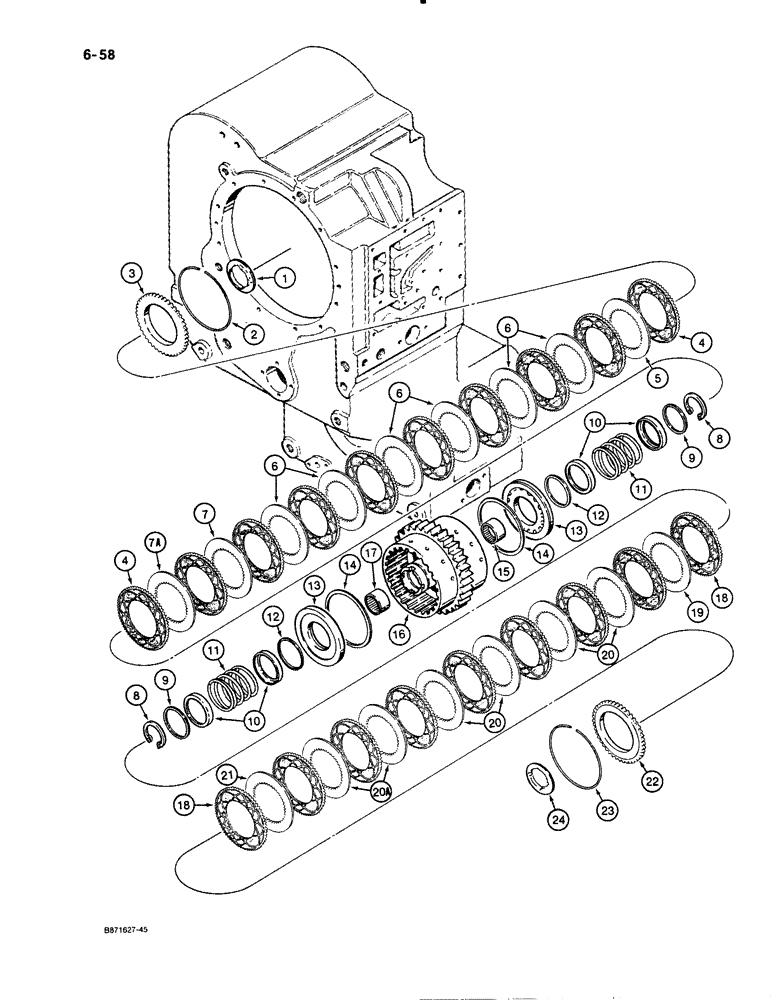

Запчасти Case W30 (6-58) - ZF TRANSMISSION, THIRD AND FOURTH CLUTCH PACK (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH PACK - third and fourth clutches

1шт.

1

E135218

THRUST RING

WASHER - thrust

1шт.

2

E135124

RING, SNAP

SNAP RING - internal

1шт.

3

E135222

NOTCHED DISK

DISC - clutch, steel,outer

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre

10шт.

5

E135224

NOTCHED DISK

DISC - clutch, 1.5 mm thick, if used

1шт.

5

E135226

NOTCHED DISK

DISC - clutch, 2.0 mm thick, if used

1шт.

5

E135225

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick, if used

1шт.

6

E135226

NOTCHED DISK

DISC - clutch, 2.0 mm thick

6шт.

7

E135224

NOTCHED DISK

DISC - clutch, 1.5 mm thick

1шт.

7a

E135225

NOTCHED DISK

DISC - clutch, steel, 2.0 mm thick

1шт.

8

E135019

CIRCLIP

SNAP RING - external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

E135141

SEALING RING

RING - seal, piston ID

2шт.

13

E135217

PISTON

- clutch

2шт.

14

E135142

SEALING RING

RING - seal, piston OD

2шт.

15

E135044

BEARING, NEEDLE

BEARING - needle, 40 mm ID x 47mm 0D x 20 mm

1шт.

16

E135232

GEAR

HOUSING - third and fourth clutches

1шт.

17

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, 35 mm ID x 42 mm OD x 20 mm

1шт.

18

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135225

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick

1шт.

20

E135224

NOTCHED DISK

DISC - clutch, 1.5 mm thick

4шт.

20a

E135226

NOTCHED DISK

DISC - clutch, 2.0 mm thick

2шт.

21

E135224

NOTCHED DISK

DISC - clutch, 1.5 mm thick, if used

1шт.

21

E135226

NOTCHED DISK

DISC - clutch, 2.0 mm thick, if used

1шт.

21

E135225

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick, if used

1шт.

22

E135222

NOTCHED DISK

DISC - clutch, steel, outer

1шт.

23

E135124

RING, SNAP

SNAP RING - internal

1шт.

24

E135218

THRUST RING

WASHER - thrust

1шт.
