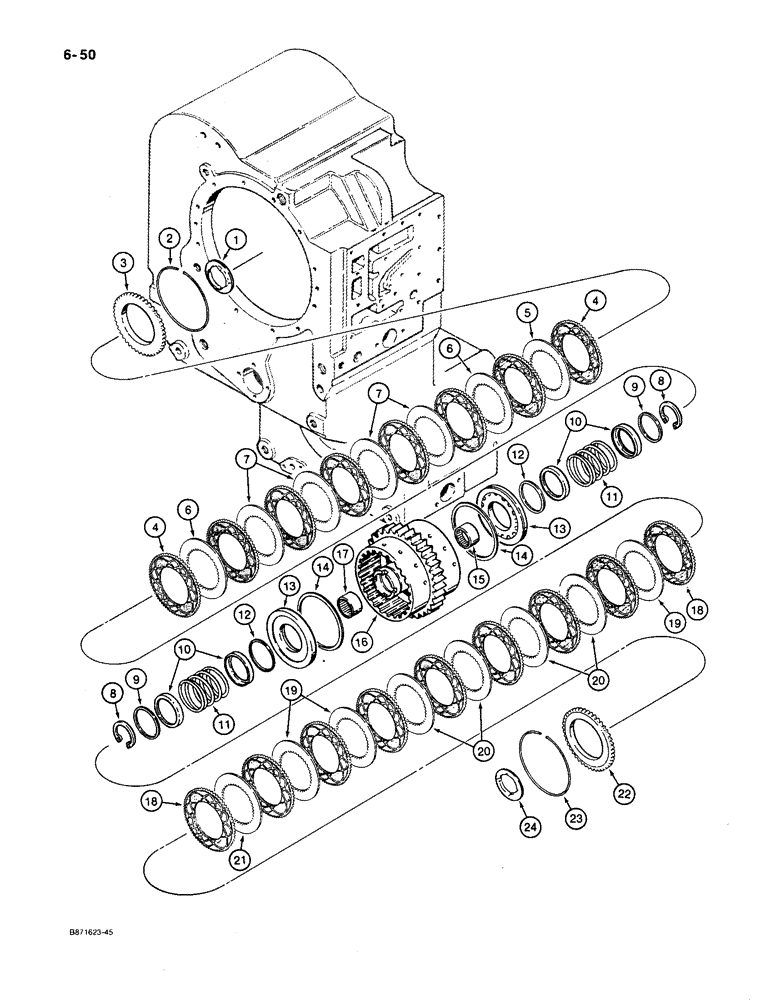

Запчасти Case W30 (6-50) - ZF TRANSMISSION, FORWARD AND LOW CLUTCH PACK (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

NSS

NOT SOLD SEPARAT

CLUTCH PACK - forward and low clutches

1шт.

1

E135227

THRUST RING

PLATE - thrust

1шт.

2

E135125

RING, SNAP

SNAP RING - internal

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, steel,outer

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

8шт.

5

E135271

NOTCHED DISK

DISC - clutch, 2.0 mm thick, if used

1шт.

5

E135272

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, steel

2шт.

7

E135271

NOTCHED DISK

DISC - clutch, steel, 2.0 mm thick

4шт.

8

E135019

CIRCLIP

SNAP RING - external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - GUIDE

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

E135141

SEALING RING

RING - seal, piston ID

2шт.

13

N14711

PISTON

- clutch

2шт.

14

E135140

SEALING RING

RING - seal, piston OD

2шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle, 40 mm ID x 47 mm OD x 26 mm

1шт.

16

E135234

GEAR

HOUSING - forward and low clutch

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle, 35 mm ID x 42 mm OD X 26mm

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre

9шт.

19

E135272

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick

3шт.

20

E135271

NOTCHED DISK

DISC - clutch, steel, 2.0 mm thick

4шт.

21

E135271

NOTCHED DISK

DISC - clutch, steel, 2.0 mm thick, if used

1шт.

21

E135272

NOTCHED DISK

DISC - clutch, steel, 2.5 mm thick, if used

1шт.

22

E135261

NOTCHED DISK

DISC - clutch, steel, outer

1шт.

23

E135125

RING, SNAP

SNAP RING - internal

1шт.

24

E135218

THRUST RING

WASHER - thrust

1шт.
