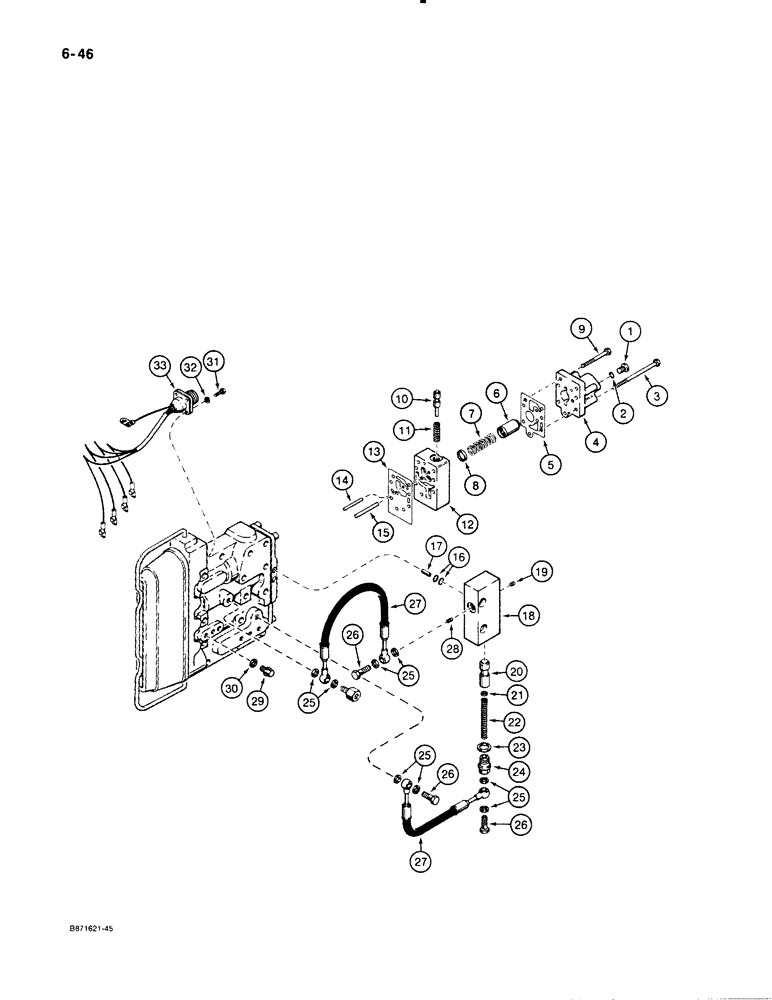

Запчасти Case W30 (6-46) - ZF TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

N14712

VALVE

ASSEMBLY - transmission control, also includes parts

1шт.

on Figure 6-44

1шт.

1

A52230

PLUG

- hex socket head, 10 mm - 1

1шт.

2

A52231

SEALING RING

RING - seal, plug

1шт.

3

E135072

BOLT

- hex head, 5 mm - 0.8 x 90 mm

4шт.

4

E135199

COVER

- valve, 2 stage

1шт.

5

E135198

GASKET

- cover

1шт.

6

E135182

VALVE POPPET

PISTON - valve, 2 stage

1шт.

7

E135133

SPRING

- piston, 2 stage valve

1шт.

8

E135113

SEALING RING

RING - 2 stage valve, 17 mm ID x 20 mm OD x 5 mm

1шт.

9

E135073

BOLT

- hex head, 5 mm - 0.8 x 50 mm (8.8)

3шт.

10

E135000

VALVE POPPET

SPOOL - relief, 2 stage valve

1шт.

11

E135139

SPRING

- relief spool, 9.45 mm OD x 29.9 mm

1шт.

12

E135197

VALVE BODY

BODY - valve, 2 stage

1шт.

13

E135196

GASKET

- valve body

1шт.

14

E135021

DOWEL

PIN - dowel, 4 mm OD x 36 mm

1шт.

15

E135052

DOWEL

ROLLER - needle, 2 stage valve, 5 mm OD x 49.8 mm

1шт.

16

N14723

O-RING,1.5mm Thk x 9mm ID

SEAL - O-ring, 9 mm ID x 1.5 mm

4шт.

Ref #16A - N14724 Washer, fits between the two (Ref #16) O-Ring Seals.

1шт.

17

N14722

PLUG

FITTING - connector, straight

2шт.

18

N14719

HOUSING

BODY - diversion valve

1шт.

19

N14726

ASSEMBLY,Headless Hex Socket, M6 x 5mm

SCREW - set, hex socket head, 6mm - 1 x 5 mm

1шт.

20

N14720

PISTON

SPOOL - diversion valve

1шт.

21

N14724

WASHER

- spring seat

1шт.

Ref #21 - Replaced by S302096 Pin

1шт.

22

N14721

SPRING

- diversion valve

1шт.

23

E135039

O-RING,18 mm ID x 22 mm OD

SEAL - adapter, diversion valve

1шт.

24

N14725

SLEEVE

ADAPTER - hose to diversion valve

1шт.

25

A52231

SEALING RING

RING - seal, plug

8шт.

26

E135088

BANJO BOLT

CONNECTOR - hydraulic, hex head

3шт.

27

N14727

HOSE

- diversion valve

2шт.

28

E135212

DIAPHRAGM

ORFICE - hex socket headless, 5mm - 0.8 x 0.7 restriction

1шт.

29

E135078

PLUG

- hex head, 10 mm - 1

6шт.

30

A52231

SEALING RING

RING - seal, plug

6шт.

31

814-4012

BOLT,Hex, M4 x 0.7 x 12mm, Cl 8.8, Full Thd

- hex head, 4 mm - 0.7 x 12mm

4шт.

32

892-1104

LOCK WASHER,M4

WASHER - lock, 4 mm, plated

4шт.

33

E135288

HARNESS

- wiring, control valve

1шт.
