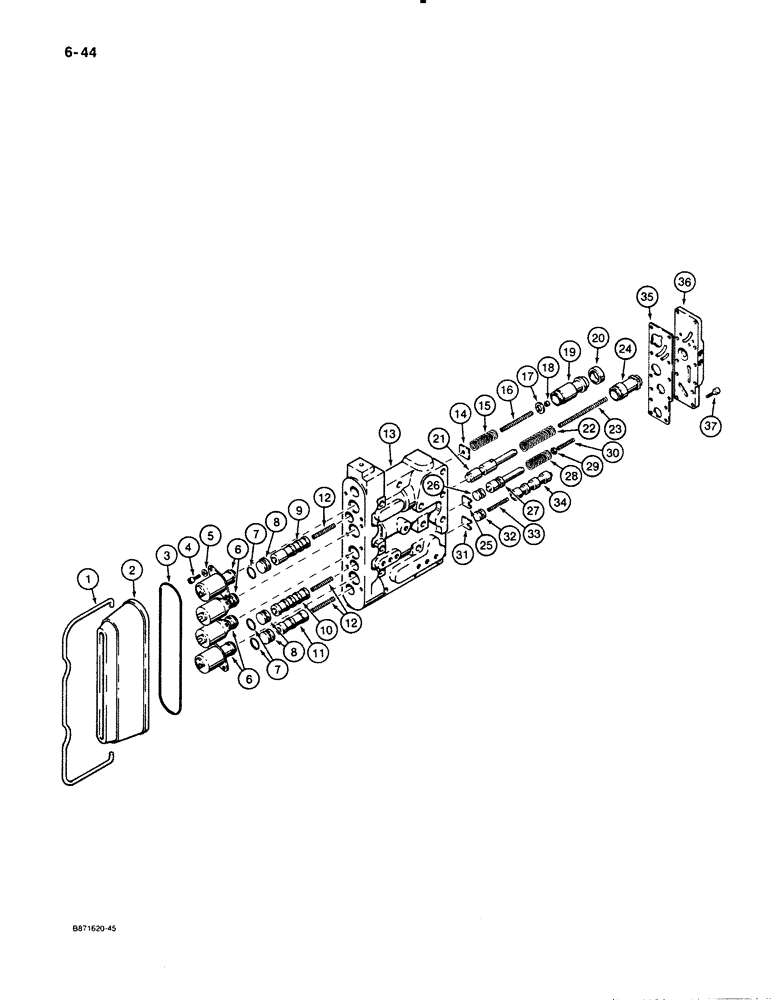

Запчасти Case W30 (6-44) - ZF TRANSMISSION, CONTROL VALVE (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

N14712

VALVE

ASSEMBLY - transmission control, also includes parts on Figure 6-46

1шт.

1

E135183

CLAMP

- wire, solenoid cover

1шт.

2

E135190

PROTECTIVE COVER

COVER - solenoid

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover

1шт.

4

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

SCREW - hex socket head, 5 mm - 0.8 x 12 mm (8.8), plated

8шт.

5

892-1005

LOCK WASHER

WASHER - solenoid mounting bolt, 5 mm

8шт.

6

E135285

VALVE

- solenoid

4шт.

Ref #6 - This solenoid valve has two O-Rings. The large one is 121821A1, The small one is 102459A1

1шт.

7

E135032

O-RING,14 mm ID x 3 mm

SEAL - O-ring, 14 mm ID x 3 mm

3шт.

8

E135189

DETENT

BLOCK - detent

3шт.

9

E135209

VALVE POPPET

SPOOL - valve, number 4

1шт.

10

E135208

VALVE POPPET

SPOOL - valve, number 2

1шт.

11

E135211

VALVE POPPET

SPOOL - valve, number 1

1шт.

12

E135135

SPRING

- valve spool, 12.08 mm OD x 72.5 mm

3шт.

13

N14717

HOUSING

BODY - transmission control valve

1шт.

14

E135187

PLATE

SEAT - spring

1шт.

15

E135128

SPRING

- main relief spool, 19.6 mm OD x 52 mm

1шт.

16

E135127

SPRING

- main relief spool, 11.5 mm OD x 88.6 mm

1шт.

17

E135116

SHIM

Spring tension, if used 0.2mm Thk

1шт.

17

E135115

SHIM

Spring tension, if used 0.3mm Thk

1шт.

17

E135114

SHIM,0.5mm Thk

Spring tension, if used 0.5mm Thk

1шт.

17

E135118

SHIM

Spring tension, if used 1.0mm Thk

1шт.

17

E135119

SHIM,2.0mm Thk

Spring tension, if used 2.0mm Thk

1шт.

18

E135111

SPACER

- spring

1шт.

19

E135184

VALVE POPPET

SPOOL - main relief

1шт.

20

E135186

BUSHING

SLEEVE - main relief spool

1шт.

21

E135191

VALVE POPPET

SPOOL - modulation

1шт.

22

E135137

SPRING

- modulation spool, 21.8mm OD x 76.7 mm

1шт.

23

E135138

SPRING

- modulation spool, 10.6mm OD x 132.4 mm

1шт.

24

E135192

VALVE POPPET

PISTON - modulation spool

1шт.

25

E135185

PLATE

STOP - spool

1шт.

26

E135188

DETENT

BLOCK - detent

1шт.

27

E135193

VALVE POPPET

SPOOL - valve reset

1шт.

28

E135130

SPRING

- reset spool, 13.2 mm ID x 65.4 mm

1шт.

29

E135006

WASHER

- spring seat, 4.3 mm ID x 9 mm OD x 0.8 mm thick

1шт.

30

E135129

SPRING

- reset spool, 5.55 mm ID x 58 mm

1шт.

31

E135204

PLATE

STOP - number 3 spool

1шт.

32

E135188

DETENT

BLOCK - detent

1шт.

33

E135135

SPRING

- number 3 spool, 12.08 mm OD x 72.5 mm

1шт.

34

E135210

VALVE POPPET

SPOOL - number 3

1шт.

35

E135194

GASKET

- cover

1шт.

36

N14718

COVER

- control valve

1шт.

37

864-5025

HEX SOC SCREW,M5 x 25mm, Cl 8.8

7шт.
