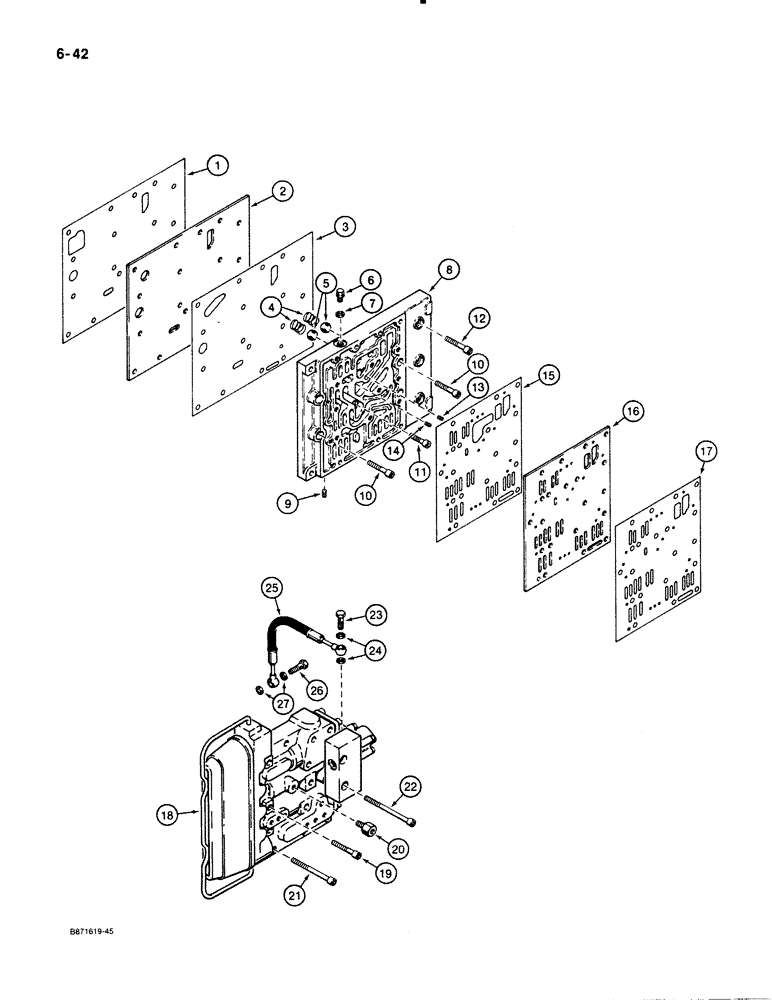

Запчасти Case W30 (6-42) - ZF TRANSMISSION, VALVE PLATES AND HYDRAULICS (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
L116979
TRANSMISSION
ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60
1шт.
1
E135257
GASKET
- plate, at transmission housing
1шт.
2
E135205
PLATE
- valve, transmission housing to channel plate
1шт.
3
E135258
GASKET
- valve plate to channel plate
1шт.
4
E135132
SPRING
- ball check
1шт.
5
E135050
BALL
- check, 16 mm OD
1шт.
6
E135078
PLUG
- hex head, 10 mm - 1
1шт.
7
A52231
SEALING RING
RING - seal, plug
1шт.
8
E135214
PLATE
- hydraulic channel,to valve
1шт.
9
E135031
PLUG
SETSCREW - hex socket head, 10 mm - 1 x 10 mm
1шт.
10
864-8035
HEX SOC SCREW,M8 x 35mm, Cl 8.8
- hex socket head, 8 mm - 1.25 x 35 mm (8.8), plated
6шт.
11
864-8030
HEX SOC SCREW,M8 x 30mm, Cl 8.8
plated Hex Soc Hd, M8 x 30, 8.8
3шт.
12
HEX SOC SCREW,M8 x 40mm, Cl 8.8
BOLT - hex socket head, 8 mm - 1.25 X 40 mm (8.8), plated
3шт.
13
N14709
SET SCREW,M5 x 6mm
SETSCREW - hex socket head, 5 mm x 6 mm
1шт.
14
E135207
RESTRICTOR
PLUG - orifice, hex socket headless
1шт.
15
E135216
SEAL
- at channel, Serial Range: plate-valve
1шт.
16
E135215
PLATE
- valve, channel plate to control valve
1шт.
17
E135206
GASKET
- at control valve to channel plate
1шт.
18
N14712
VALVE
ASSEMBLY - transmission control, see Figures 6-44 and 6-46
1шт.
19
864-8045
HEX SOC SCREW,M8 x 45mm, Cl 8.8
BOLT, hex socket head, 8 mm - 1.25 x 45 mm (8.8), plated
10шт.
20
L124599
FITTING
ADAPTER - hydraulic
1шт.
21
864-8075
HEX SOC SCREW,M8 x 75mm, Cl 8.8
BOLT - hex socket head, 8 mm - 1.25 x 75 mm (8.8),plated
6шт.
22
864-8090
HEX SOC SCREW,M8 x 90mm, Cl 8.8
BOLT - hex socket head, 8 mm - 1.25 x 90 mm (8.8), plated
2шт.
23
E135090
BOLT
CONNECTOR - hyd, hex head
1шт.
24
E135042
SEALING RING
RING - seal, connector
2шт.
25
N14708
PIPE
HOSE - hydraulic
1шт.
26
E135088
BANJO BOLT
CONNECTOR - hydraulic, hex head
1шт.
27
A52231
SEALING RING
RING - seal, plug
2шт.
Выбрано товаров: 28
