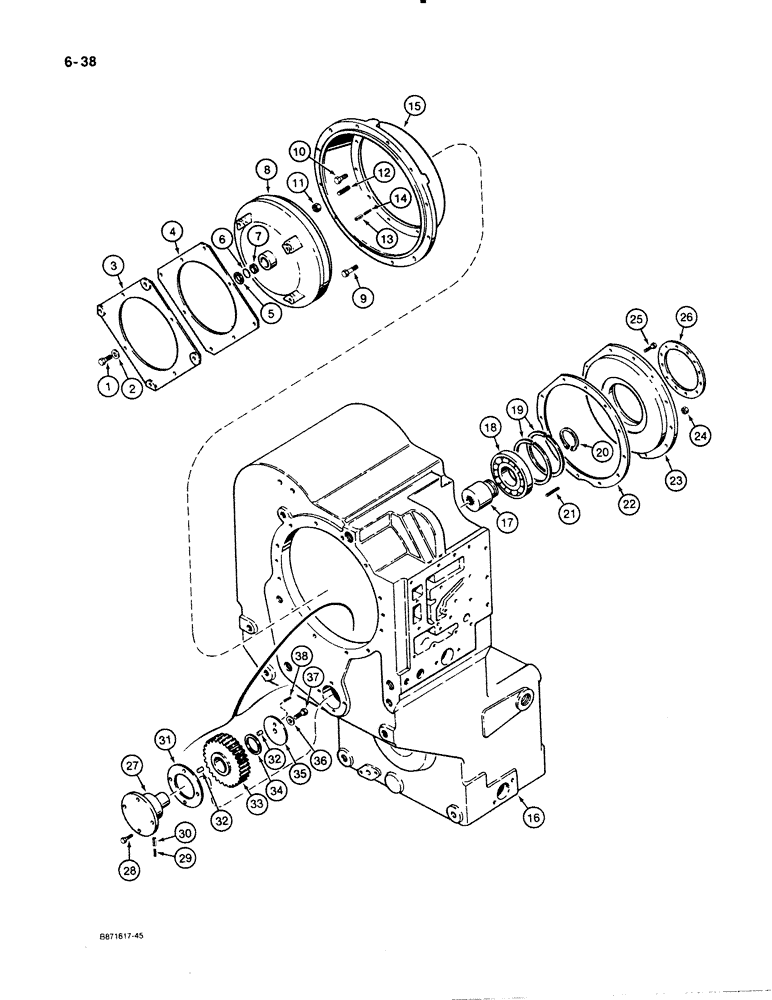

Запчасти Case W30 (6-38) - ZF TRANSMISSION, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

1

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex head, 10 mm - 15 x 20 mm (10.9)

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

E135238

PLATE

DIAPHRAGM - converter, stepped

1шт.

4

E135237

PLATE

DIAPHRAGM - converter, plain

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

SEAL - x 3, O-ring 25 mm ID

1шт.

7

E135167

WASHER

- sealing

1шт.

8

E135168

CONVERTER

- transmission

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex head, 10 mm - 1.5 x 50mm (10.9)

2шт.

10

826-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex head, 10 mm -1.5 x 35mm (10.9)

11шт.

11

825-1010

NUT,M10, Cl 8

- hex, 10 mm x 1.5

1шт.

12

E135083

STUD

- 10 mm x 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN - roll, 10 mm OD x 28 mm

2шт.

14

E135025

PIN

- roll, 6 mm OD x 28 mm

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

E135249

HOUSING

- transmission

1шт.

17

E135278

DRIVE

CONNECTOR - shaft

1шт.

18

E135046

BALL BEARING

BEARING - cover

1шт.

19

E135018

RING, SNAP

SNAP RING - internal, 85 mm x 1.7 thick

2шт.

20

E62708

CIRCLIP

SNAP RING - external, 45 mm x 1.75 thick

1шт.

21

E135084

STUD

- 8 mm - 1.25 x 18 mm

1шт.

22

E135279

GASKET

- cover

1шт.

23

E135281

PLATE

COVER - flange, pump

1шт.

24

825-1408

NUT,M8, Cl 8

1шт.

25

826-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex head, 8 mm - 1.25 x 20mm (10.9)

10шт.

26

N14710

SEALING RING

- cover,outer

1шт.

27

E135273

PLATE

AXLE - stub, idler gear

1шт.

28

826-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex head, 8 mm - 1.25 x 20mm (10.9)

4шт.

29

E135022

DOWEL

PIN - roll, 1.5 mm OD x 10 mm

1шт.

30

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

1шт.

31

E135219

SEALING RING

GASKET - stub axle

1шт.

Ref #31 - (Used on early production transmissions. Later units had O-Ring S300455 at this location.)

1шт.

32

E135156

ROLLER

BEARING - needle

28шт.

33

E135276

GEAR

- idler

1шт.

34

E135003

PISTON RING

RING - idler gear

1шт.

35

E135274

DISC

COVER - bearing

1шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

37

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex head, 10 mm - 15 x 20 mm (10.9)

1шт.

38

E135024

DOWEL

PIN - roll, 4 mm OD x 10 mm

1шт.
